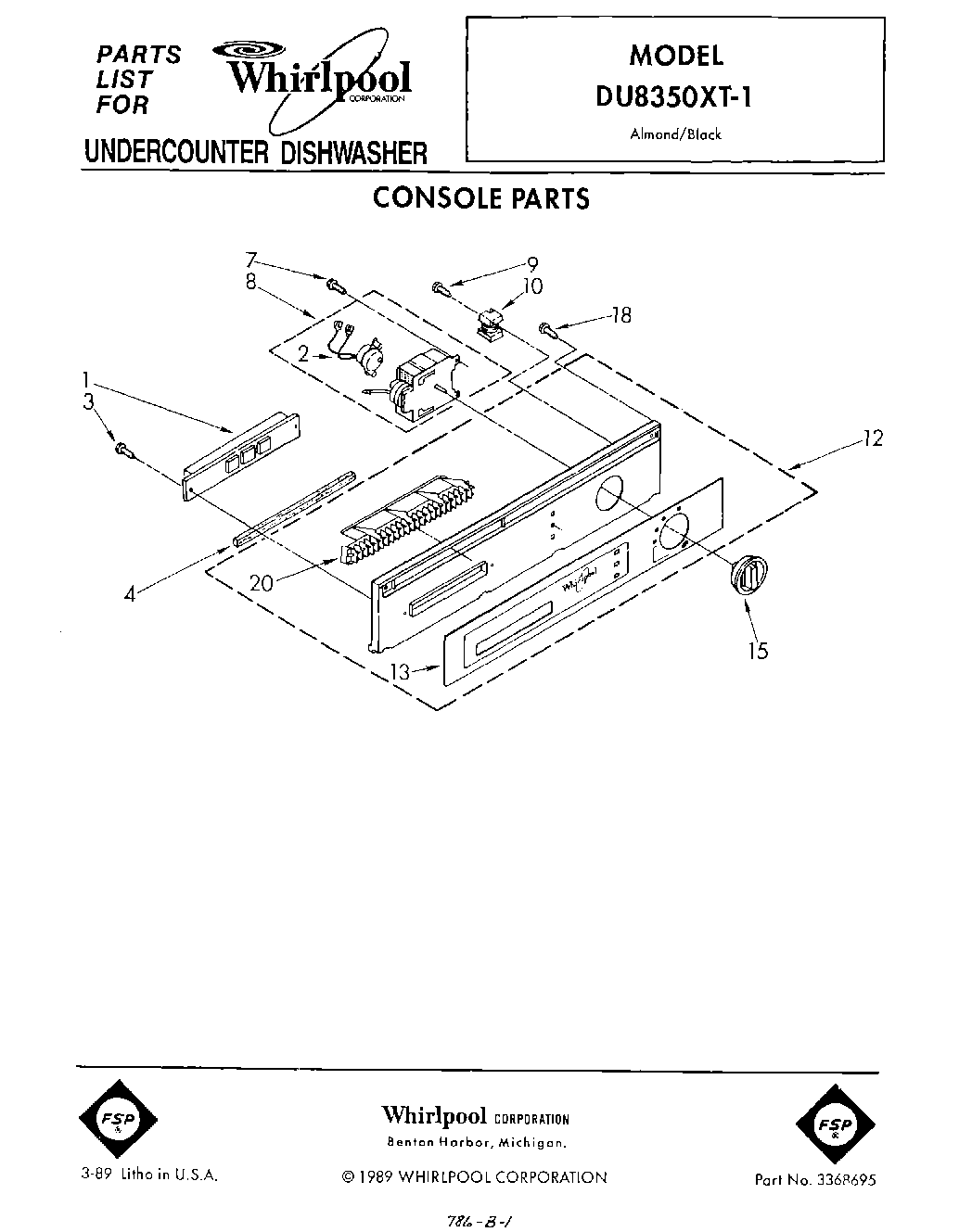

DU8350XT1 01 – CONSOLE

Written by

Products

Position	Product
1	Switch, Pushbutton
2	Motor, Timer
4	Foam, Seal
7	WP304231 Whirlpool Dishwasher Screw
8	Timer
9	Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
10	Relay, Start
12	Console (Includes Items 6 & 12)
13	Insert, Decorative
15	Knob, Timer
18	WP90767 Whirlpool Screw
20	Grill, Vent
