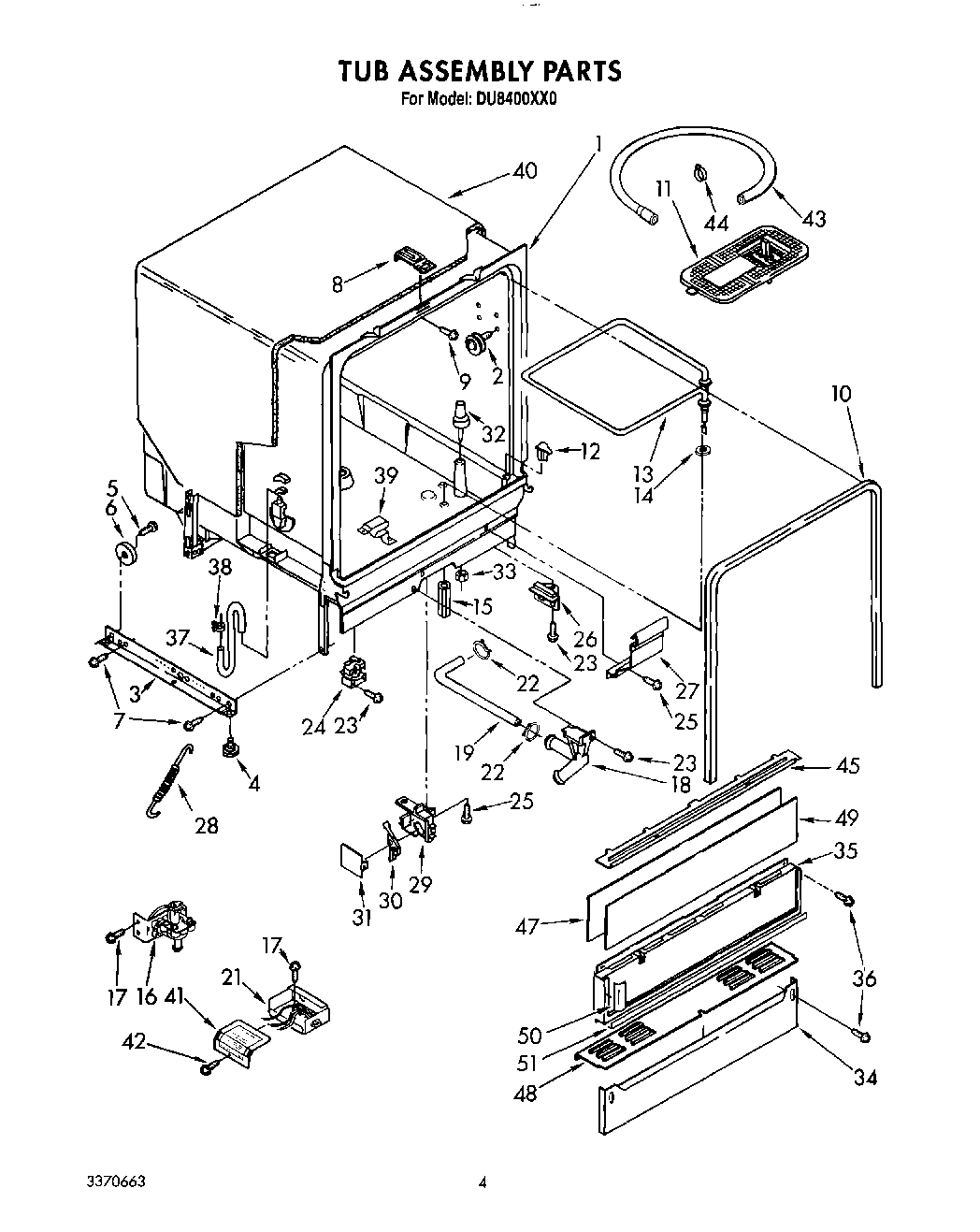

DU8400XX0 04 – TUB ASSEMBLY, LIT/OPTIONAL

DU8400XX0 04 – TUB ASSEMBLY, LIT/OPTIONAL

Written by

in

DU8400XX0 04 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3369274
	WPL LIT3371806
	WPL LIT3370042
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3370663
	Instructions, Installation
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
21	Terminal Block & Plug Assembly
22	CLAMP, HOSE
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP596669 Whirlpool Hose Clamp
39	Support, Heater
40	W11086533 Whirlpool Dishwasher Shield
41	Cover Assembly, Terminal Box
42	W11693756 Whirlpool Screw Assembly
43	WP3374077 Whirlpool Dishwasher Drain Hose
44	WP3367052 Whirlpool Hose Clamp
45	WP3372412 Whirlpool Dishwasher Retainer
47	Spacer, Corrugated
48	Extension
49	Access Panel (White/Black)
49	Access Panel (Almond)
50	Trim, Side (2)
51	Side Panel Kit (White)
51	WPL 72112
51	Leveler (Thinner)
51	W10840471 Whirlpool Dishwasher Touch Up
51	WP676453 Whirlpool Dishwasher Touch-Up
51	WP676455 Whirlpool Dishwasher Touch-Up
51	WP72107 Whirlpool Touchup
51	675679 Whirlpool Dishwasher White Tip Tines
51	72017 Whirlpool Appliance Touch-Up Paint White
51	350956 Whirlpool Spray Assembly
51	Side Panel Kit: (Almond)
51	Almond (Uncut)
51	676458 Whirlpool Dishwasher Tine Tip
51	Avocado
51	Trim, Bottom
51	Gold
51	285006 Whirlpool Spray
51	Platinum
51	Enamel, Black (1 Qt. Uncut)
51	350942 Whirlpool Spray Paint
51	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
51	DOOR SPRING KIT: (HEAVY DUTY)
51	Toast
