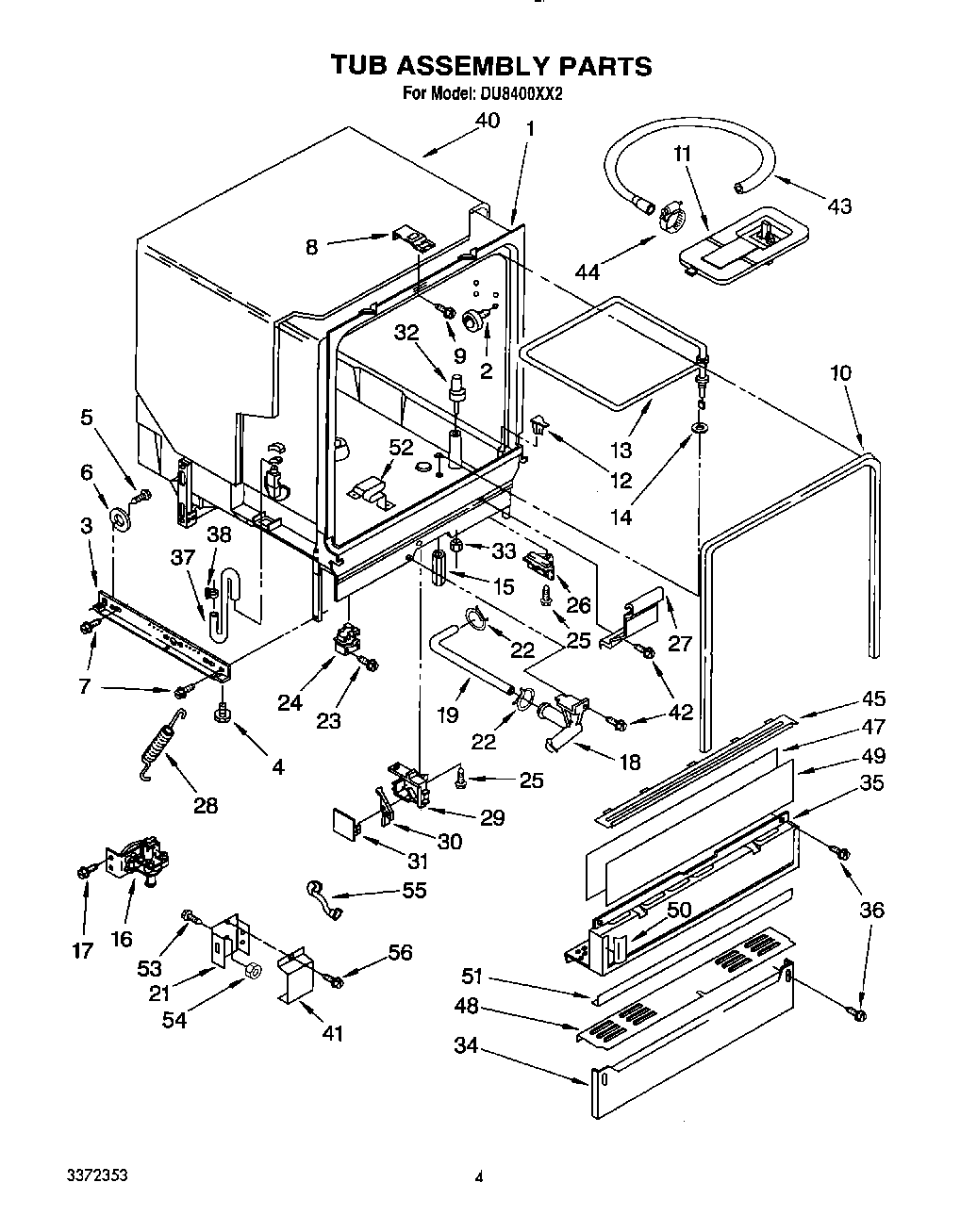

DU8400XX2 04 – TUB ASSEMBLY, LIT/OPTIONAL

DU8400XX2 04 – TUB ASSEMBLY, LIT/OPTIONAL

Written by

in

DU8400XX2 04 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3369274
	WPL LIT3371806
	Energy Guide
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3372353
	WPL LIT3369093
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
21	Box, Terminal
22	CLAMP, HOSE
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP596669 Whirlpool Hose Clamp
40	W11086533 Whirlpool Dishwasher Shield
41	300068 Whirlpool Dishwasher Cover Assembly
42	W11693756 Whirlpool Screw Assembly
43	WP3374077 Whirlpool Dishwasher Drain Hose
44	WP3367052 Whirlpool Hose Clamp
45	WP3372412 Whirlpool Dishwasher Retainer
47	Spacer, Corrugated
48	Extension
49	Access Panel (White/Black)
49	Access Panel (Almond)
50	Trim, Side (2)
51	Trim, Bottom
52	Support, Heater
53	WP250830 Whirlpool Refrigerator Screw
54	WP488130 Whirlpool Air Conditioner Nut
55	Relief, Strain
56	WPL 72112
56	350956 Whirlpool Spray Assembly
56	Almond (Uncut)
56	Leveler (Thinner)
56	WP72107 Whirlpool Touchup
56	72017 Whirlpool Appliance Touch-Up Paint White
56	Platinum
56	Toast
56	Side Panel Kit (White)
56	676458 Whirlpool Dishwasher Tine Tip
56	DOOR SPRING KIT: (HEAVY DUTY)
56	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
56	675679 Whirlpool Dishwasher White Tip Tines
56	WP676455 Whirlpool Dishwasher Touch-Up
56	WP676453 Whirlpool Dishwasher Touch-Up
56	285006 Whirlpool Spray
56	Enamel, Black (1 Qt. Uncut)
56	Screw
56	Side Panel Kit: (Almond)
56	350942 Whirlpool Spray Paint
56	Avocado
56	Gold
56	W10840471 Whirlpool Dishwasher Touch Up
