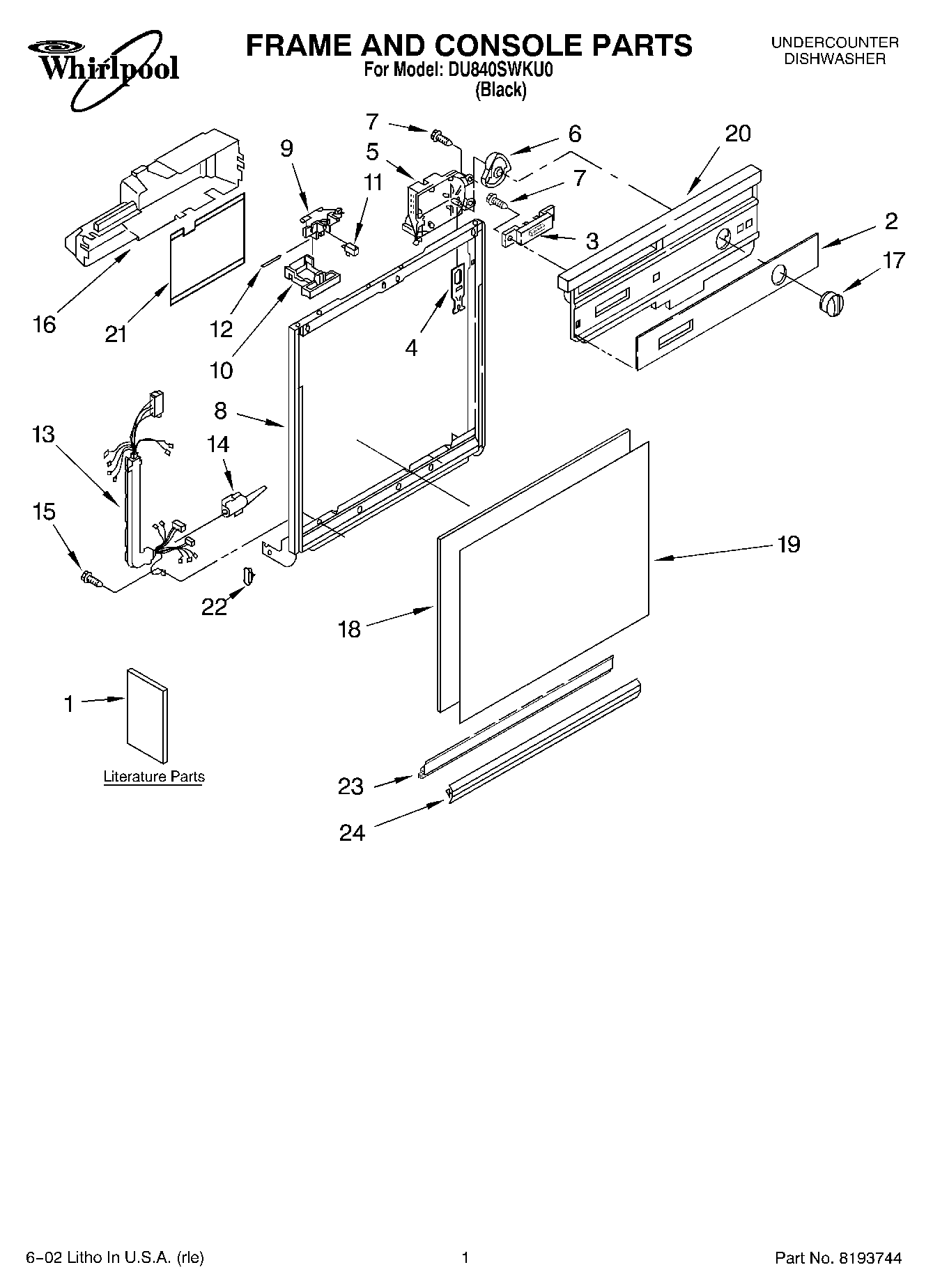

DU840SWKU0 01 – FRAME AND CONSOLE, LITERATURE

DU840SWKU0 01 – FRAME AND CONSOLE, LITERATURE

Written by

in

DU840SWKU0 01 – FRAME AND CONSOLE, LITERATURE

Products

PositionProduct
1Do-It Yourself Manual
1Literature Parts (Guide, Energy)
1Literature Parts (Diagram, Wiring)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Instructions, Installation)
1Instructions, Installation (Supplement) (Locating Your Water Supply)
2Insert, Console
38269365 Whirlpool Dishwasher PB Switch
4WP3369529 Whirlpool Dishwasher Follower
5WP8535372 Whirlpool Dishwasher Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
178275308 Whirlpool Dishwasher Timer Knob
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
20Console (Includes Item 2)
21Shield, Control Cover
22WP3373234 Whirlpool Dishwasher Bearing
23Retainer, Panel
24WP3374716 Whirlpool Dishwasher Channel
