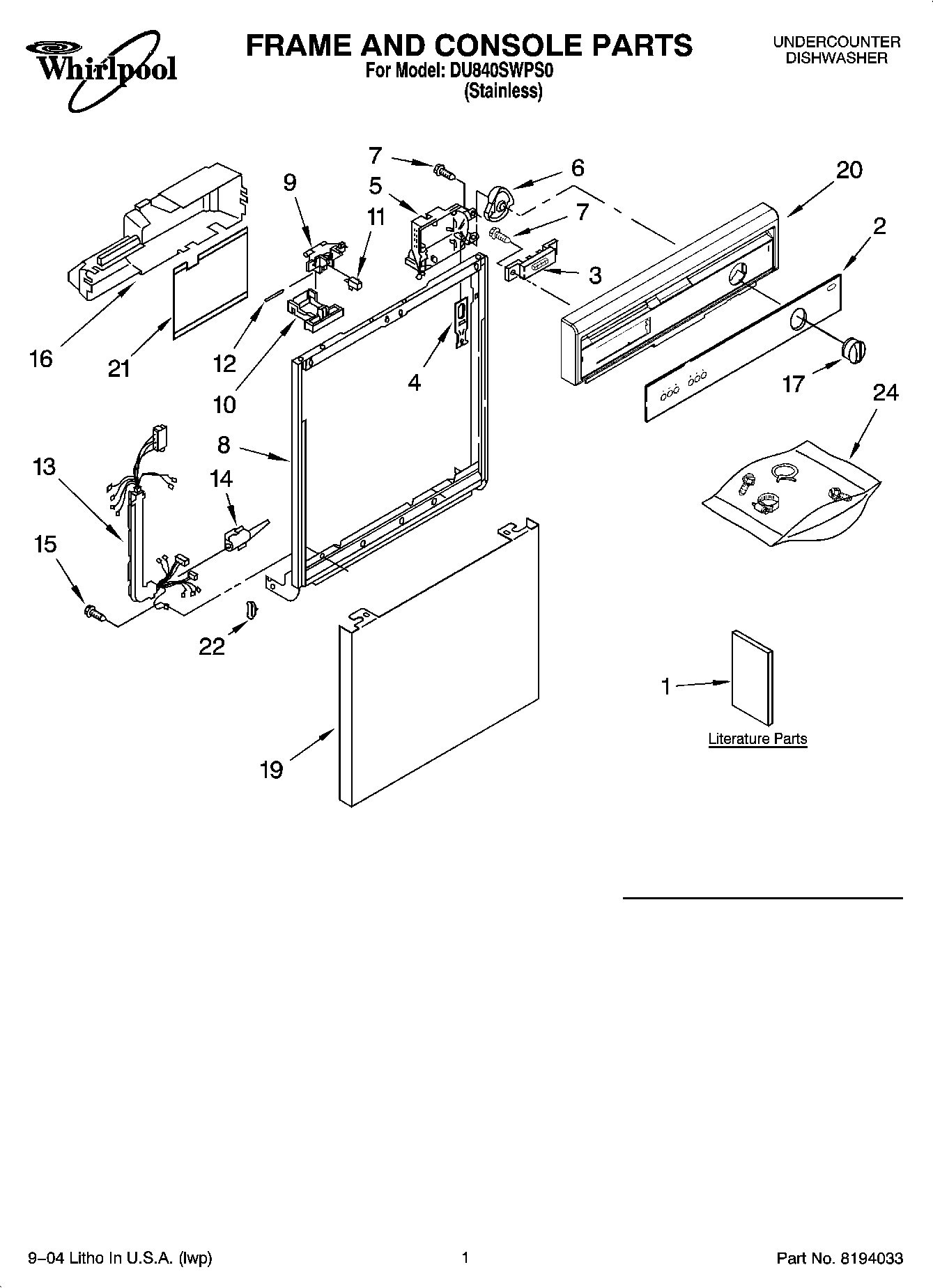

DU840SWPS0 01 – FRAME AND CONSOLE PARTS

DU840SWPS0 01 – FRAME AND CONSOLE PARTS

Written by

in

DU840SWPS0 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1WPL 677967
1Guide, Energy
1Guide, Use & Care
1Instructions, Installation (Supplement) (Location Your Water Supply)
1Diagram, Wiring
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
2Insert, Console
38269365 Whirlpool Dishwasher PB Switch
4WP3369529 Whirlpool Dishwasher Follower
5WP8535372 Whirlpool Dishwasher Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
178275308 Whirlpool Dishwasher Timer Knob
19Panel Front (Stainless Mdl.)
20Console (Includes Item 2)
21Shield, Control Cover
22WP3373234 Whirlpool Dishwasher Bearing
24Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
