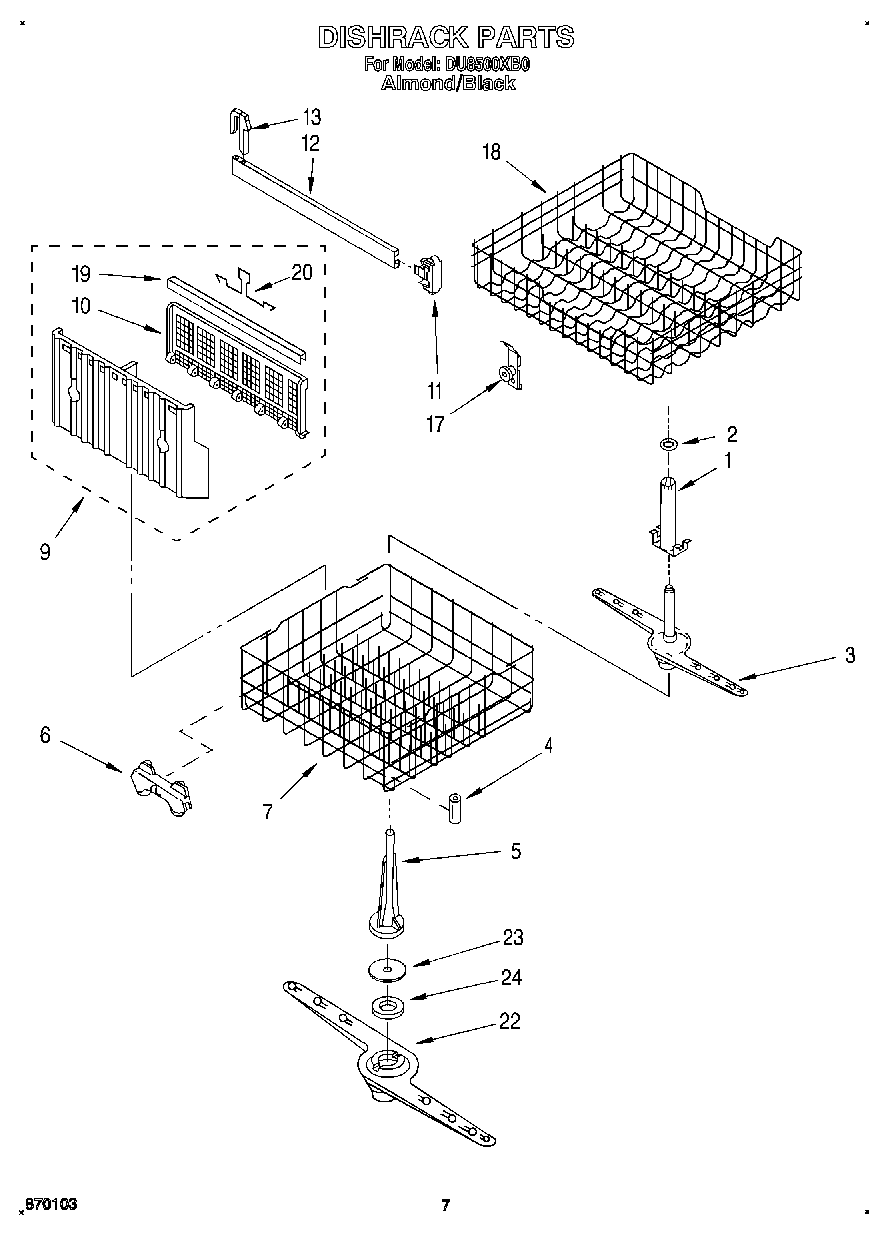

DU8500XB0 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	Do-It Yourself Manual
	WPL LIT3373739
	Wiring Diagram
	WPL LIT3373480
	Instructions, Installation
	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	Support, Arm
2	Clip
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	Stop, Track (2)
17	WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
24	Avocado
24	Gold
24	Almond (Uncut)
24	Toast
24	350942 Whirlpool Spray Paint
24	Leveler (Thinner)
24	WP72107 Whirlpool Touchup
24	72017 Whirlpool Appliance Touch-Up Paint White
24	350956 Whirlpool Spray Assembly
24	Enamel, Black (1 Qt. Uncut)
24	285006 Whirlpool Spray
24	72032 Whirlpool Touch Up Paint Black
24	DOOR SPRING KIT: (HEAVY DUTY)
24	Side Panel Kit (White)
24	W10840471 Whirlpool Dishwasher Touch Up
24	Side Panel Kit: (Almond)
24	WP719576 Whirlpool Dishwasher Bearing
24	676458 Whirlpool Dishwasher Tine Tip
24	675679 Whirlpool Dishwasher White Tip Tines
24	WP676455 Whirlpool Dishwasher Touch-Up
24	WP676453 Whirlpool Dishwasher Touch-Up
24	Platinum
