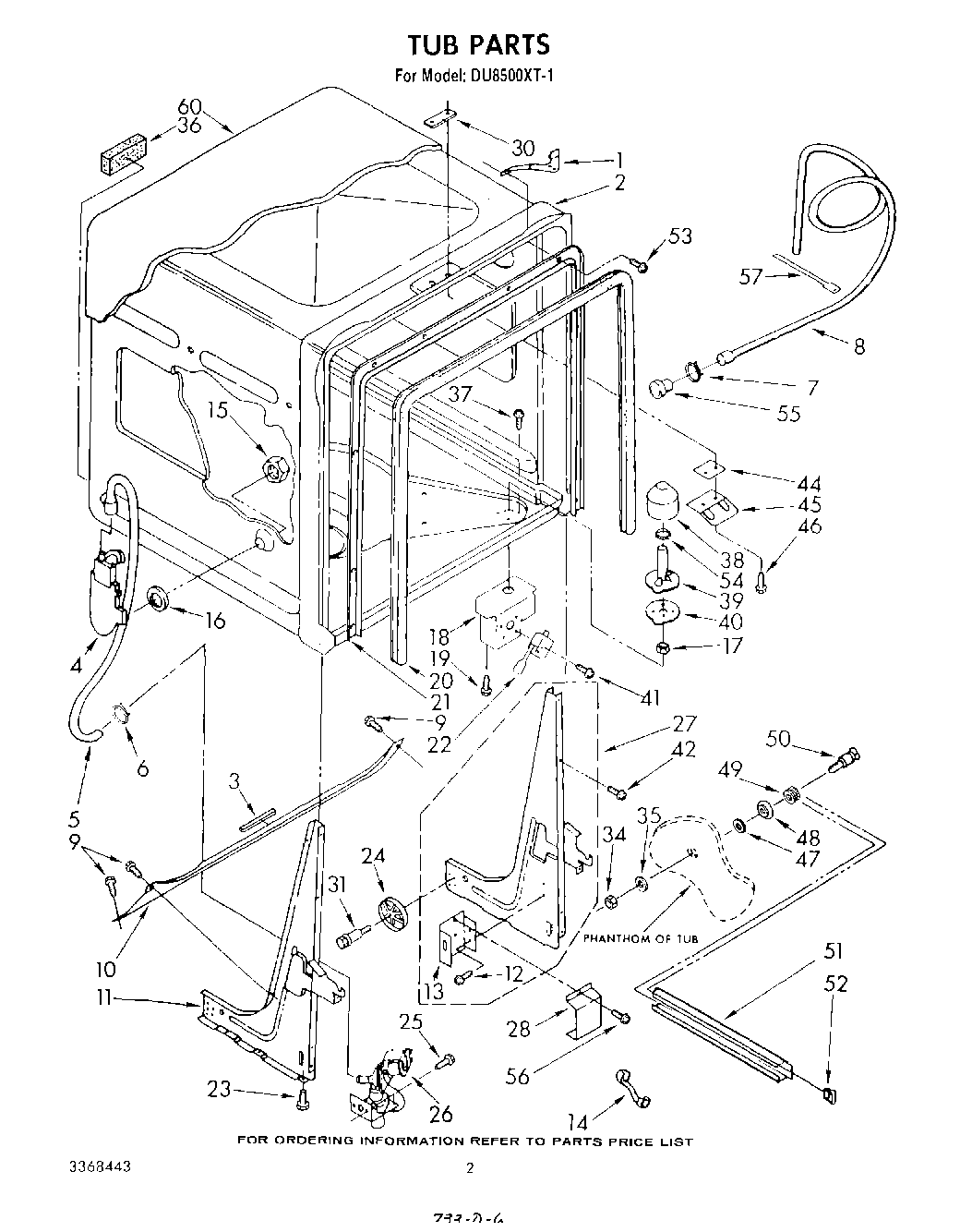

DU8500XT1 02 – TUB , LIT/OPTIONAL

DU8500XT1 02 – TUB , LIT/OPTIONAL

Written by

in

DU8500XT1 02 – TUB , LIT/OPTIONAL

Products

Position	Product
	WPL LIT3368038
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	Dryer
	WPL LIT677967
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3368443
	WPL LIT3367228
	WPL LIT304291
	Washer (Belt Drive)
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure (Alternate)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
36	Block, Foam (2)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
60	350930 Whirlpool White Spray Paint
60	350956 Whirlpool Spray Assembly
60	Paint, Spray (13 Oz.) (Platinum)
60	350942 Whirlpool Spray Paint
60	Golden Harvest
60	WPL 72112
60	Platinum (Uncut)
60	Enamal, Toast (1 Qt. Uncut)
60	Golden Harvest (Uncut)
60	Toast
60	72017 Whirlpool Appliance Touch-Up Paint White
60	285006 Whirlpool Spray
60	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
60	Leveler (Thinner)
60	Almond (Uncut)
60	WP72107 Whirlpool Touchup
60	799344 Whirlpool Refrigerator Paint
60	W11086533 Whirlpool Dishwasher Shield
60	Vinyl Touch Up (Blue)
60	72113 Whirlpool Touch-Up Paint
60	Enamel, New Avocado (1 Qt. Uncut)
60	Enamel, Coffee (1 Qt. Uncut)
60	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60	Kit, Epoxy Patch (White)
