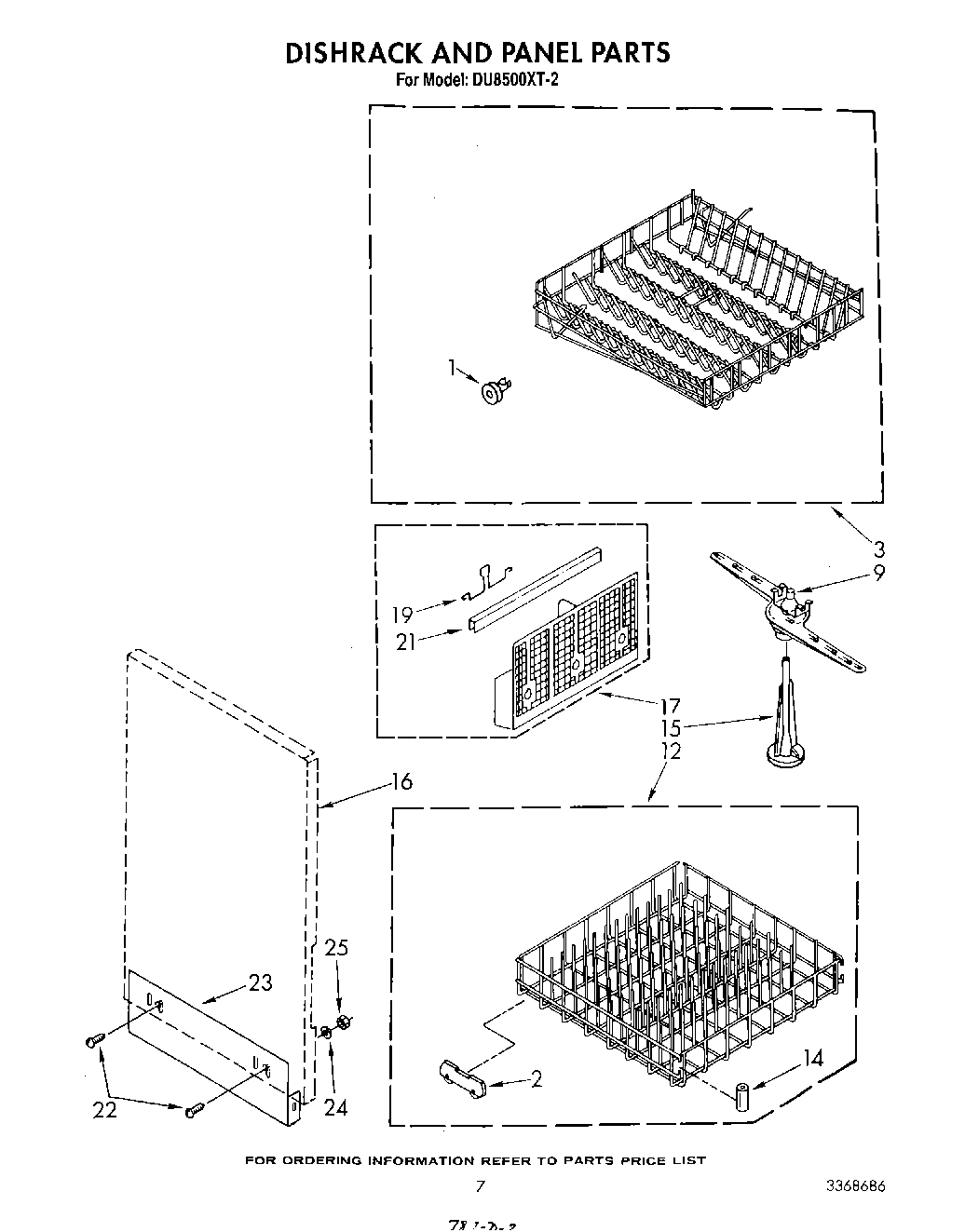

DU8500XT2 05 – DISHRACK AND PANEL

Products

Position	Product
1	Wheel & Axle Assembly (4)
2	4317933 Whirlpool Lower Rack Wheels
3	W11169039 Whirlpool Dishwasher Dish Rack
9	WP304204 Whirlpool Dishwasher Spray Arm
12	W10311986 Whirlpool Dishwasher Lower Rack
14	Bumper
15	Tower
16	Panel, Reversible Side
17	Silverware Basket
19	Handle, Basket
21	Trim, Basket
22	Screw, Lower Side Panel Mounting (2)
23	Panel, Lower Side
24	W11089212 Whirlpool Washer
25	W10080180 Whirlpool Nut
