DU8500XT4 02 – TUB , LITERATURE AND OPTIONAL

DU8500XT4 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

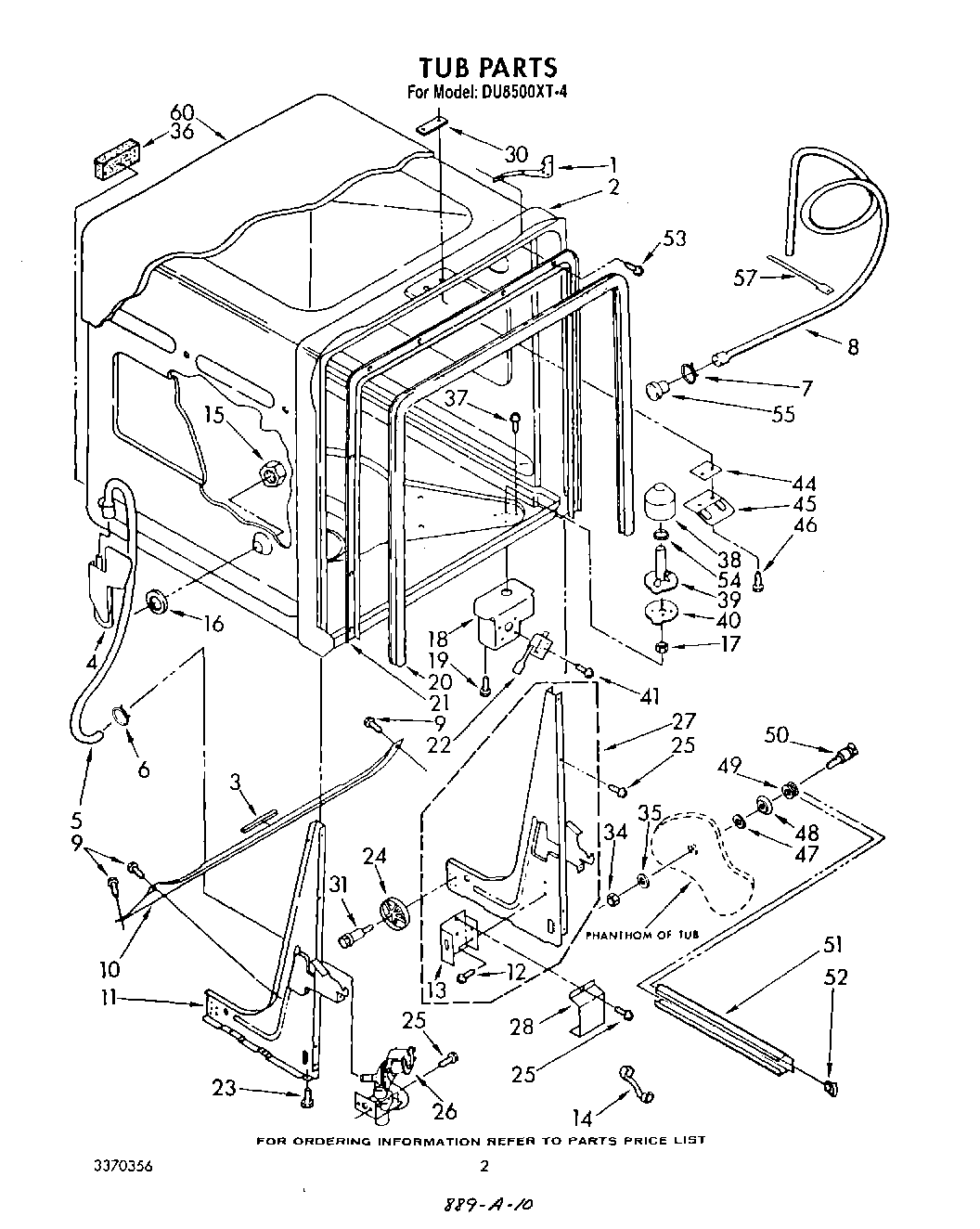

DU8500XT4 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3368835
	WPL 72112
	350942 Whirlpool Spray Paint
	WPL LIT304291
	285006 Whirlpool Spray
	Enamel, Coffee (1 Qt. Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Vinyl Touch Up (Blue)
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	WPL LIT3370356
	WPL LIT3367228
	WPL LIT3370048
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	72113 Whirlpool Touch-Up Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	799344 Whirlpool Refrigerator Paint
	Paint, Spray (13 Oz.) (Platinum)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	350956 Whirlpool Spray Assembly
	Golden Harvest
	72017 Whirlpool Appliance Touch-Up Paint White
	Toast
	Golden Harvest (Uncut)
	350930 Whirlpool White Spray Paint
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
25	WP90767 Whirlpool Screw
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw (2)
34	Nut, Lock
35	Washer (8)
36	Block, Foam (2)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
57	WPW10144763 Whirlpool Tie Wire
60	W11086533 Whirlpool Dishwasher Shield
