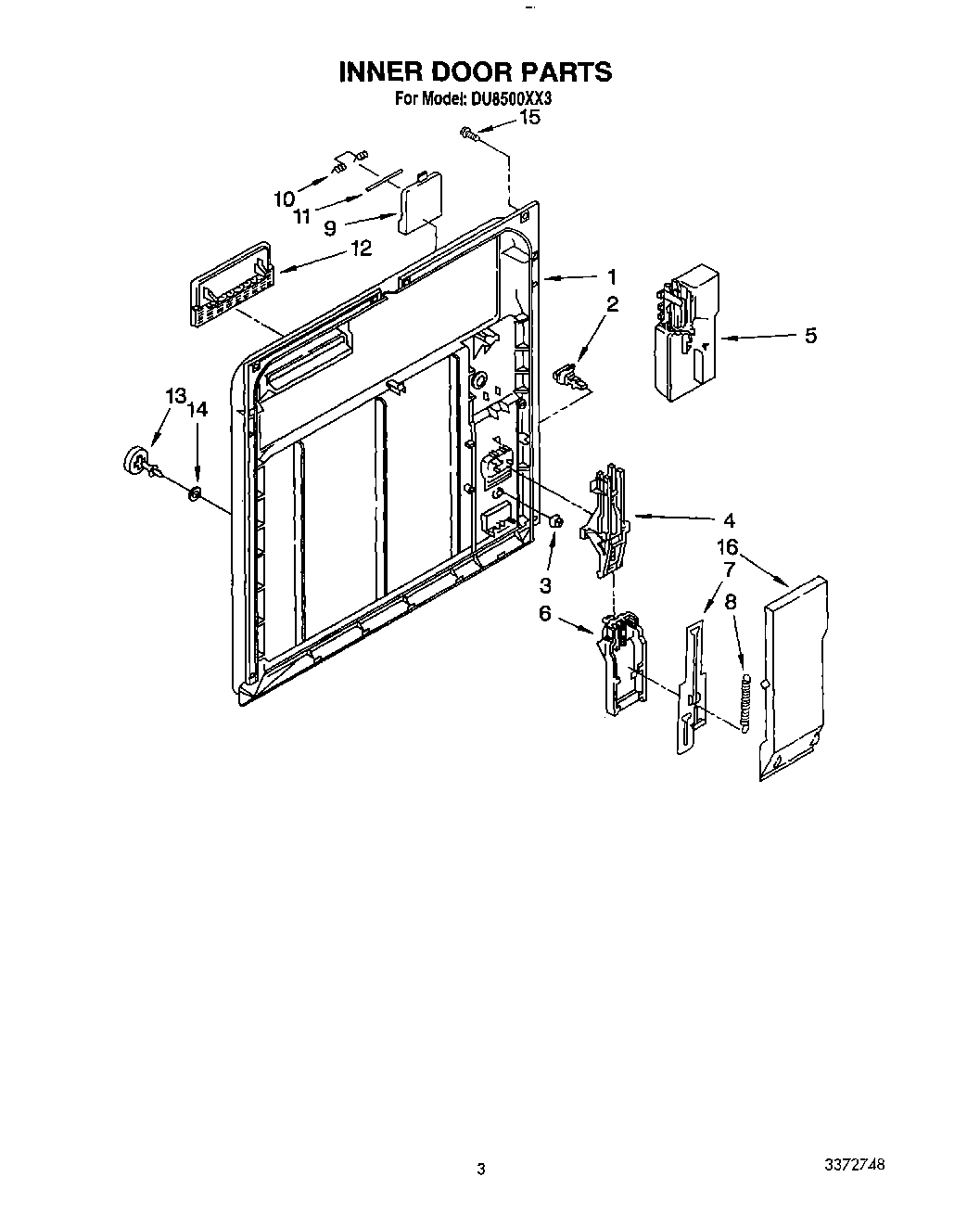

DU8500XX3 03 – INNER DOOR

Products

Position	Product
1	Inner Door (Also Order Latch Door Kit 676413)
3	LATCH KIT
4	8193646 Whirlpool Dishwasher Lower Detergent Dispenser Actuator Kit
5	WP8052027 Whirlpool Dishwasher Dispenser
6	Draw Bar, (Upper Dispenser)
8	WP3368999 Whirlpool Dishwasher Spring
10	WP8066018 Whirlpool Spring Assembly
11	4387043 Whirlpool Door Latch Kit
12	WP3371710 Whirlpool Dishwasher Screen
14	WP3378134 Whirlpool Dishwasher Cap
15	WPW10348409 Whirlpool Screw
16	Cover, Drip
