DU850DWGX0 01 – FRAME AND CONSOLE

DU850DWGX0 01 – FRAME AND CONSOLE

Written by

in

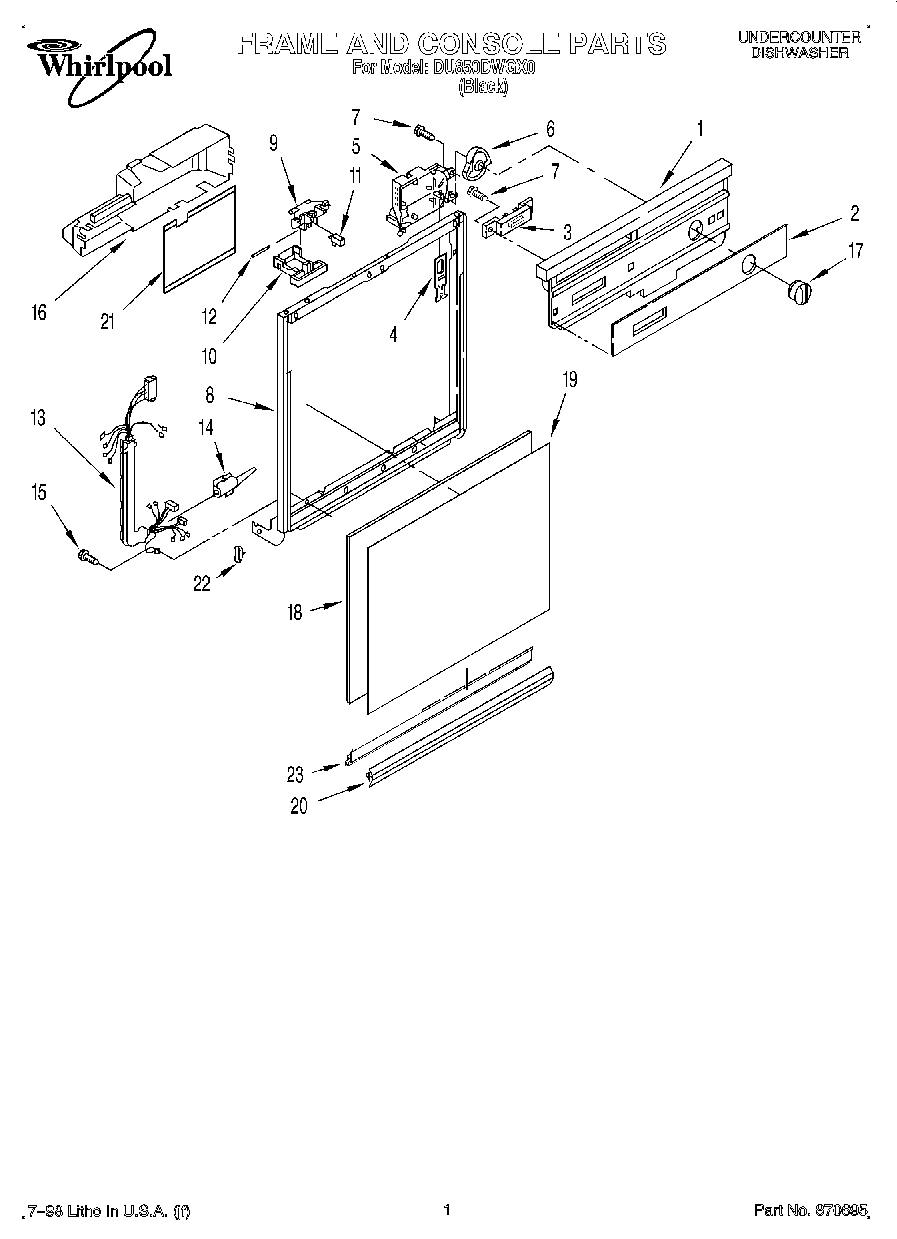

DU850DWGX0 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Item 2) (Black)
2Insert, Console (Black)
3Switch, 5 Button (Black)
4WP3369529 Whirlpool Dishwasher Follower
5WP8535368 Whirlpool Dishwasher Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel
21Shield, Control Cover
22WP3373234 Whirlpool Dishwasher Bearing
23WP3374716 Whirlpool Dishwasher Channel
