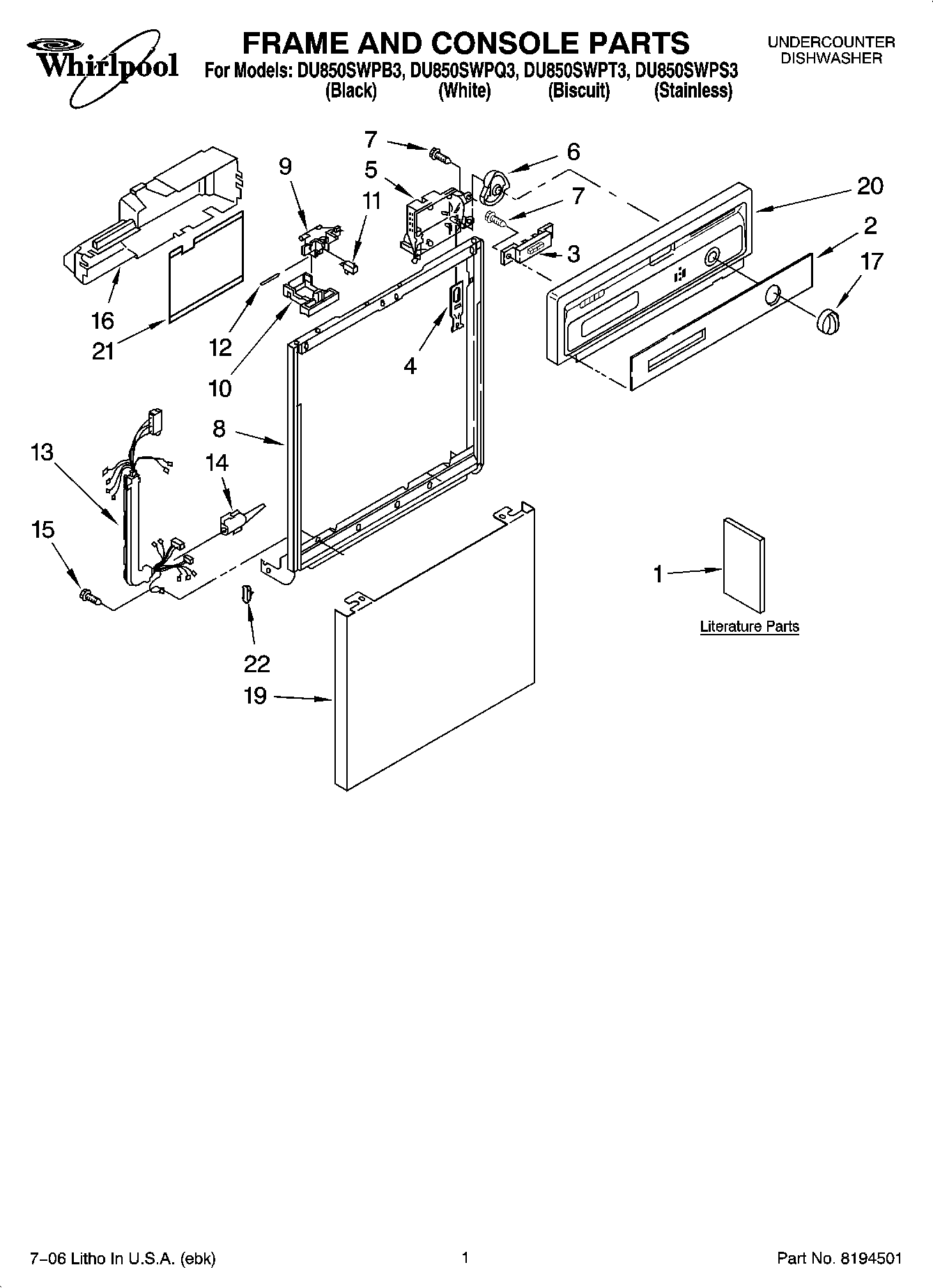

DU850SWPB3 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	WPL 677967
1	Guide, Energy
1	Guide, Use & Care
1	Instructions, Installation (Supplement) (Location Your Water Supply)
1	INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
2	Insert, Console (Biscuit)
2	Insert, Console (White)
2	Insert, Console (Black)
3	8269366 Whirlpool Dishwasher PB Switch
4	WP3369529 Whirlpool Dishwasher Follower
5	WPW10199587 Whirlpool Dishwasher Timer
6	WP8271510 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	WP9743028 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch White
10	Lever, Latch
10	Lever, Latch
11	Shield, Switch
12	Pin, Switch (2)
13	8573183 Whirlpool Dishwasher Wire Harness
14	3376405 Whirlpool Dishwasher Elbow
15	WP3400892 Whirlpool Dishwasher Screw
16	Cover, Timer
17	8275310 Whirlpool Dishwasher Timer Knob
17	8275308 Whirlpool Dishwasher Timer Knob
19	Panel Front (Black Model)
19	Panel Front (Stainless Mdl.)
19	Panel, Front (Biscuit)
19	Panel Front (White Model)
20	Console (Includes Item 2) (Biscuit)
20	Console (Includes Item 2) (White)
20	Console (Includes Item 2) (Black)
21	Shield, Control Cover
22	WP3373234 Whirlpool Dishwasher Bearing
