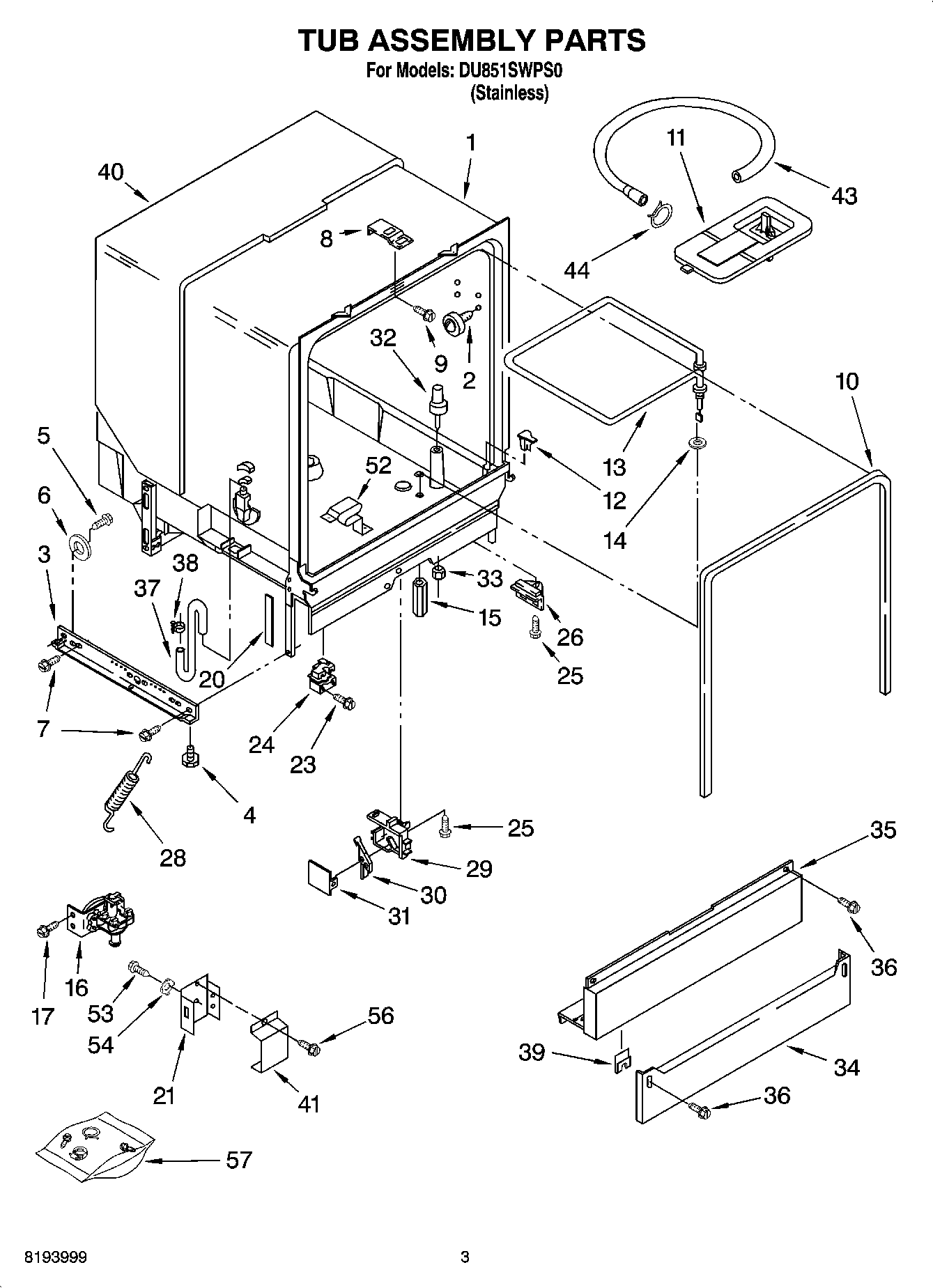

DU851SWPS0 03 – TUB ASSEMBLY PARTS

Products

PositionProduct
1Tub and Support Assembly
2WP8528831 Whirlpool Dishwasher Mounting
3Runner (2)
48193716 Whirlpool Leveling Leg
5Screw (2)
6WP302819 Whirlpool Dishwasher Wheel
7SCREW
8Plate, Latch
9WP3374720 Whirlpool Dishwasher Screw
10WPW10509257 Whirlpool Door Gasket
11WP3369322 Whirlpool Cover Assembly
12DEFLECTOR-DISHWASHER
13WPW10082894 Whirlpool Dishwasher Heater
14WP717273 Whirlpool Dishwasher Rubber Washer
15WPW10477552 Whirlpool Dishwasher Terminal Nut
16W10844024 Whirlpool Water Inlet Valve
17WP489069 Whirlpool Compactor Screw
20Friction Pad (Velcro)
21Terminal Box
23WP489128 Whirlpool Refrigerator Screw
24W10102260 Whirlpool Dishwasher Motor Relay
25WP304231 Whirlpool Dishwasher Screw
26WP3368928 Whirlpool Dishwasher Fuse
28WP3379383 Whirlpool Dishwasher Spring
29Housing, Float Switch
30Switch, Float
318318219 Whirlpool Dishwasher Cover Housing
32WP8519552 Whirlpool Dishwasher Float
33Nut
34WP3379920 Whirlpool Dishwasher Toe Panel
35Panel, Access (STAINLESS)
36WP302868 Whirlpool Screw
37Hose, Inlet
38WP596669 Whirlpool Hose Clamp
39Clip, Grounding
40W11086533 Whirlpool Dishwasher Shield
41300068 Whirlpool Dishwasher Cover Assembly
43WP3374077 Whirlpool Dishwasher Drain Hose
44WP356138 Whirlpool Hose Clamp
523379740 Whirlpool Dishwasher Heater Support
53WP3400014 Whirlpool Dishwasher Screw
54WP3378128 Whirlpool Dishwasher Washer
56Screw
57Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
