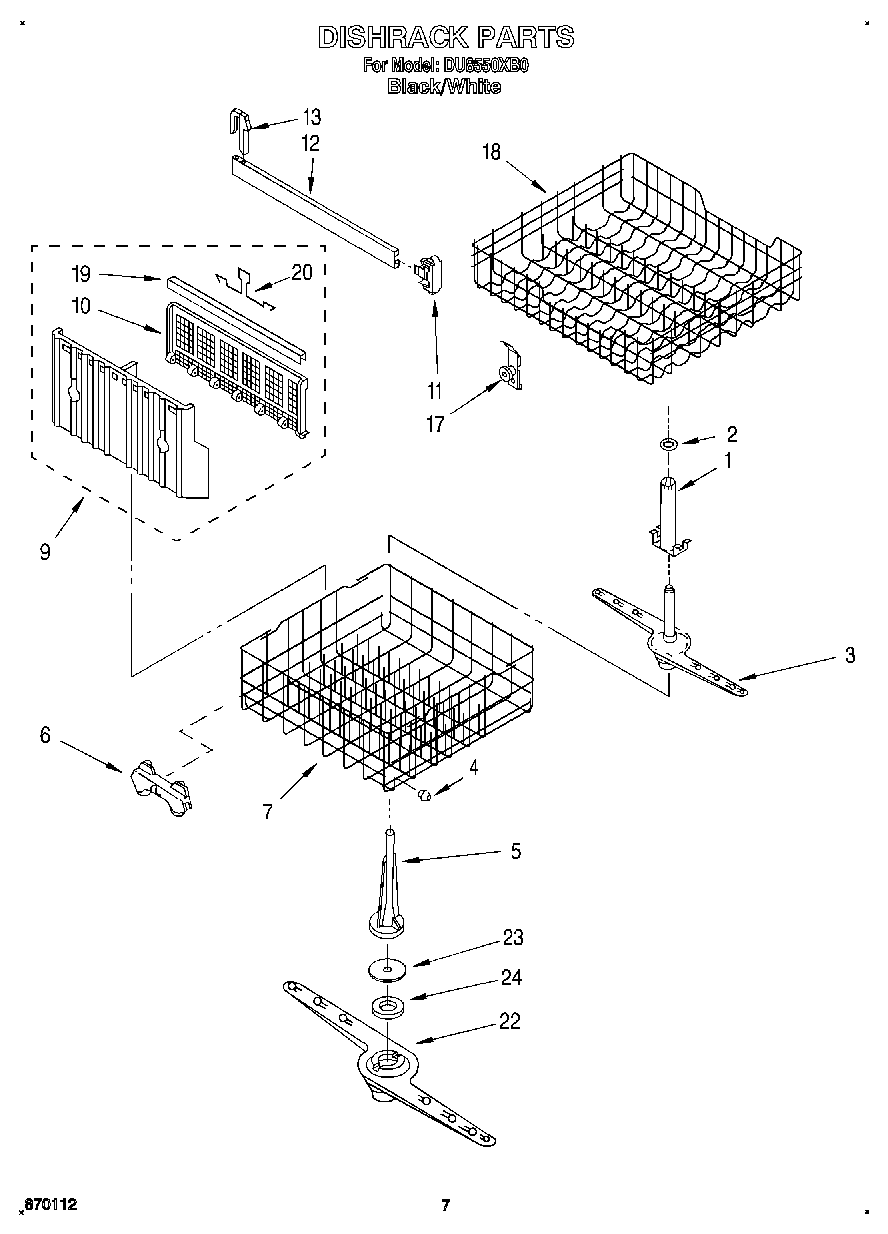

DU8550XB0 05 – DISHRACK, LIT/OPTIONAL

Products

PositionProduct
Instructions, Installation
Do-It Yourself Manual
Instructions, Installation (Supplement) (Locating Your Water Supply)
WPL LIT3373480
Wiring Diagram
WPL LIT3373739
1Support, Arm
2Clip
3Spray Arm, Upper
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP3376961 Whirlpool Dishwasher Wheel
7W10311986 Whirlpool Dishwasher Lower Rack
9Silverware Basket Assembly
10Cover, Basket
11Endcap, Front or Rear (2)
12Track, Rack
13Stop, Track (2)
17WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
18W11169039 Whirlpool Dishwasher Dish Rack
19Trim, Basket
20Handle, Basket
22WP3376848 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24Gold
24Avocado
24WP719576 Whirlpool Dishwasher Bearing
24Platinum
24Toast
24Enamel, Black (1 Qt. Uncut)
24Kit, Epoxy Patch (White)
24WP72107 Whirlpool Touchup
24Leveler (Thinner)
24Almond (Uncut)
24350942 Whirlpool Spray Paint
24285006 Whirlpool Spray
2472032 Whirlpool Touch Up Paint Black
24WP676453 Whirlpool Dishwasher Touch-Up
24WP676455 Whirlpool Dishwasher Touch-Up
24350956 Whirlpool Spray Assembly
24675679 Whirlpool Dishwasher White Tip Tines
24676458 Whirlpool Dishwasher Tine Tip
24W10840471 Whirlpool Dishwasher Touch Up
24Side Panel Kit (White)
24DOOR SPRING KIT: (HEAVY DUTY)
24Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
24Side Panel Kit: (Almond)
2472017 Whirlpool Appliance Touch-Up Paint White
