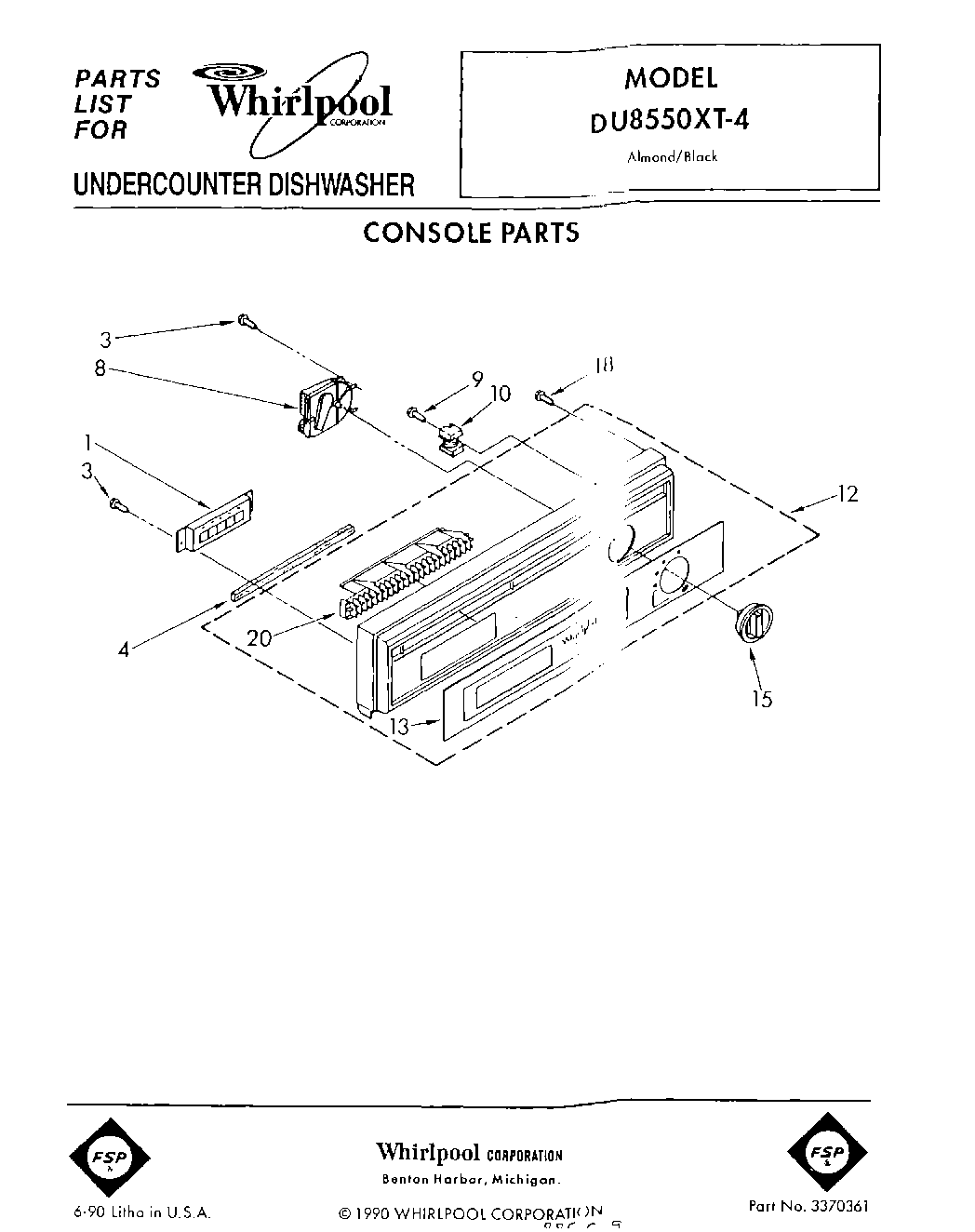

DU8550XT4 01 – CONSOLE

Written by

Products

Position	Product
1	Switch, Pushbutton
3	WP304231 Whirlpool Dishwasher Screw
4	Foam, Seal
8	Timer
9	Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
10	Relay, Start
12	Console
13	Insert, Decorative
15	Knob, Timer
18	WP488729 Whirlpool Refrigerator Door Screw
20	Grill, Vent
