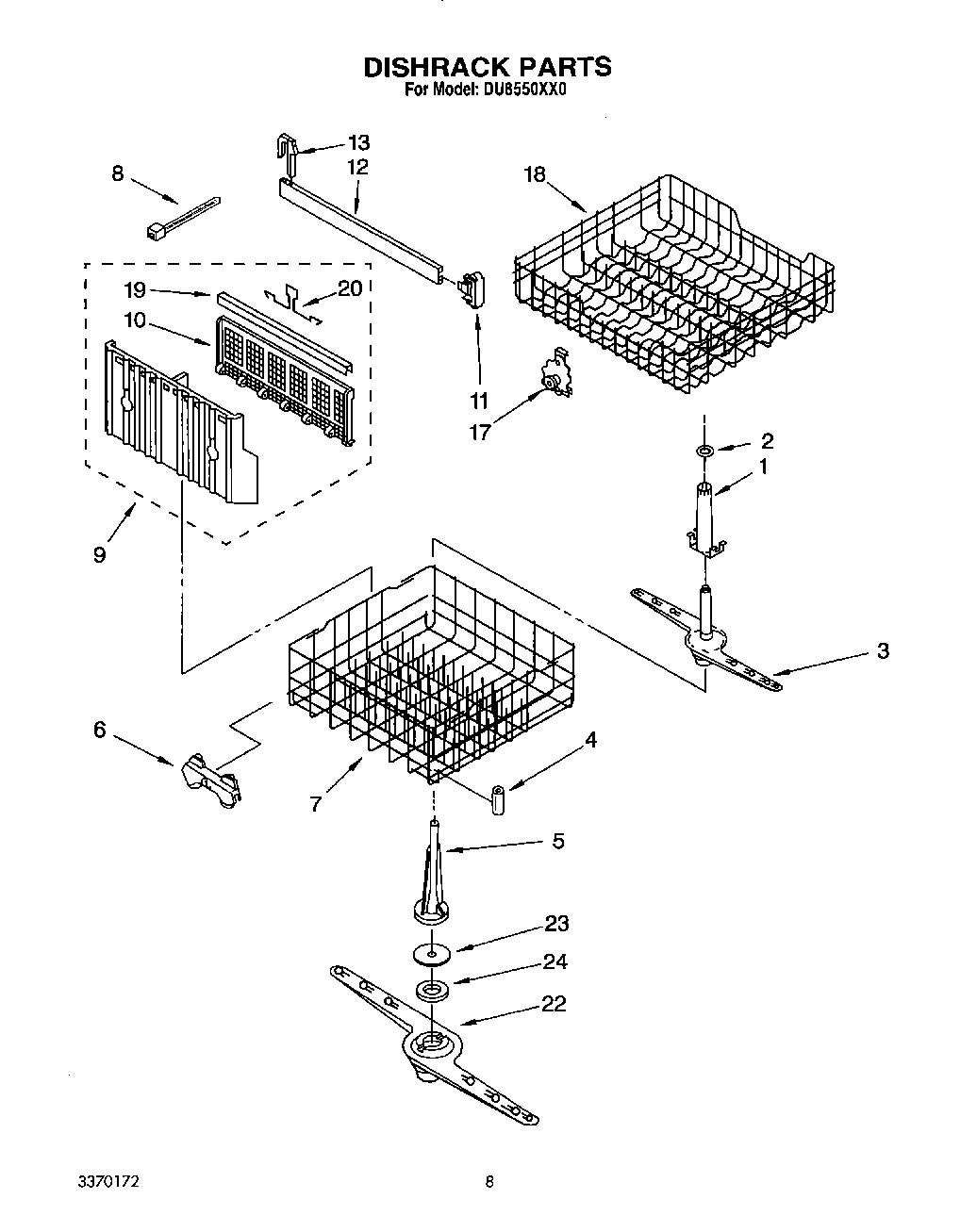

DU8550XX0 06 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Energy Guide
	WPL LIT3369104
	WPL LIT3370172
	Instructions, Installation
	WPL LIT3370466
1	Support, Arm
2	Clip
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
8	Clip, Strap
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	Stop, Track (2)
17	Wheel and Axle Assembly (4)
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	Kit, Epoxy Patch (White)
24	WP676453 Whirlpool Dishwasher Touch-Up
24	285006 Whirlpool Spray
24	Enamel, Black (1 Qt. Uncut)
24	350942 Whirlpool Spray Paint
24	WPL 72112
24	Almond (Uncut)
24	Leveler (Thinner)
24	WP72107 Whirlpool Touchup
24	72017 Whirlpool Appliance Touch-Up Paint White
24	Platinum
24	Toast
24	WP676455 Whirlpool Dishwasher Touch-Up
24	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
24	Side Panel Kit (White)
24	W10840471 Whirlpool Dishwasher Touch Up
24	WP719576 Whirlpool Dishwasher Bearing
24	676458 Whirlpool Dishwasher Tine Tip
24	675679 Whirlpool Dishwasher White Tip Tines
24	350956 Whirlpool Spray Assembly
24	Side Panel Kit: (Almond)
24	Avocado
24	Gold
