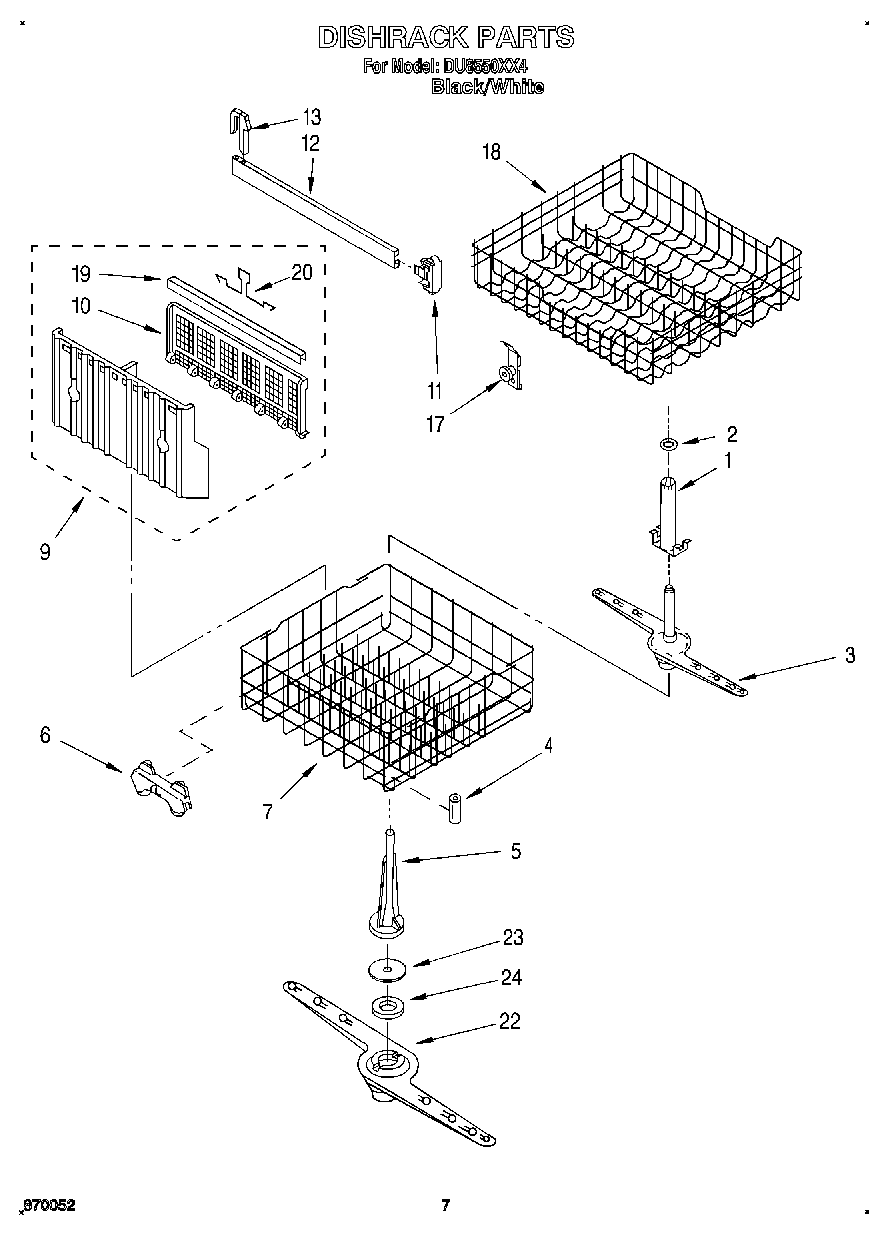

DU8550XX4 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3373747
	WPL LIT3372194
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3370466
	Do-It Yourself Manual
	WPL LIT3374368
1	Support, Arm
2	Clip
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	Stop, Track (2)
17	WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP72107 Whirlpool Touchup
24	72017 Whirlpool Appliance Touch-Up Paint White
24	350956 Whirlpool Spray Assembly
24	WPL 72112
24	Almond (Uncut)
24	Leveler (Thinner)
24	350942 Whirlpool Spray Paint
24	Enamel, Black (1 Qt. Uncut)
24	W10840471 Whirlpool Dishwasher Touch Up
24	Kit, Epoxy Patch (White)
24	675679 Whirlpool Dishwasher White Tip Tines
24	WP676455 Whirlpool Dishwasher Touch-Up
24	676458 Whirlpool Dishwasher Tine Tip
24	WP719576 Whirlpool Dishwasher Bearing
24	WP676453 Whirlpool Dishwasher Touch-Up
24	285006 Whirlpool Spray
24	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
