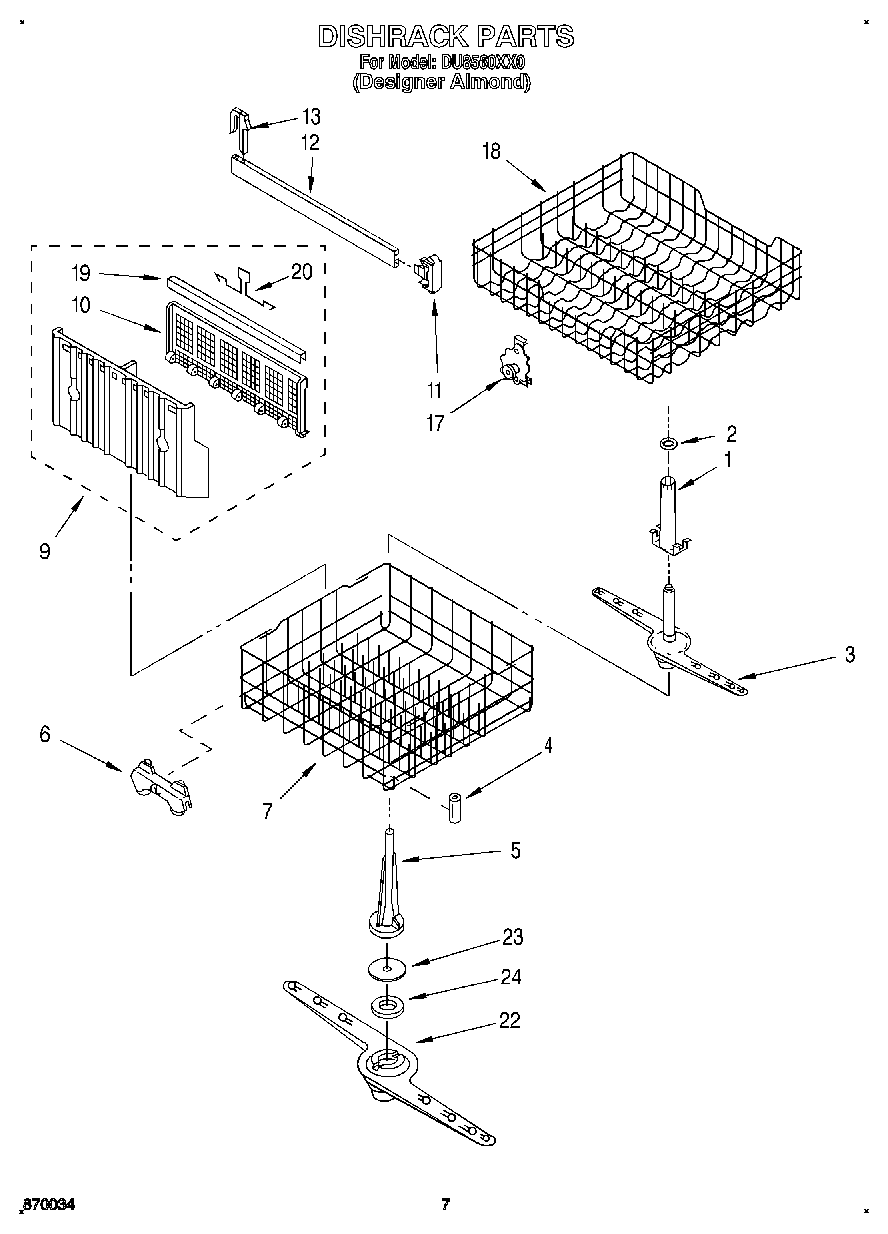

DU8560XX0 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3369104
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Do-It Yourself Manual
	WPL LIT3372194
	WPL LIT3370466
	WPL LIT3373986
1	Support, Arm
2	Clip
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	Stop, Track (2)
17	Wheel and Axle Assembly (4)
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	Side Panel Kit: (Almond)
24	Toast
24	350942 Whirlpool Spray Paint
24	Platinum
24	Gold
24	Avocado
24	WP719576 Whirlpool Dishwasher Bearing
24	WP72107 Whirlpool Touchup
24	Leveler (Thinner)
24	Almond (Uncut)
24	WPL 72112
24	Enamel, Black (1 Qt. Uncut)
24	285006 Whirlpool Spray
24	WP676453 Whirlpool Dishwasher Touch-Up
24	WP676455 Whirlpool Dishwasher Touch-Up
24	350956 Whirlpool Spray Assembly
24	675679 Whirlpool Dishwasher White Tip Tines
24	676458 Whirlpool Dishwasher Tine Tip
24	W10840471 Whirlpool Dishwasher Touch Up
24	Side Panel Kit (White)
24	DOOR SPRING KIT: (HEAVY DUTY)
24	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
24	Kit, Epoxy Patch (White)
24	72017 Whirlpool Appliance Touch-Up Paint White
