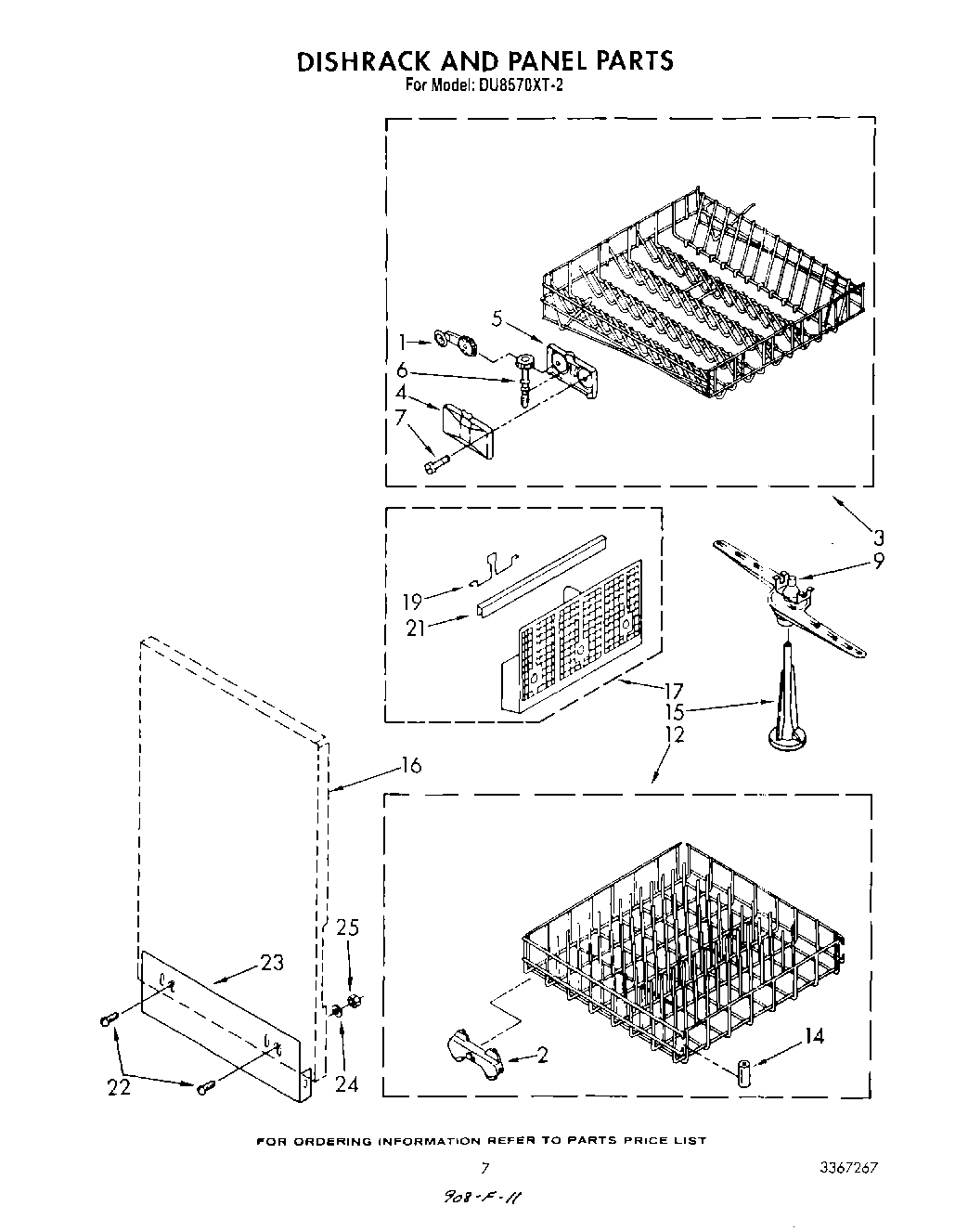

DU8570XT2 05 – DISH RACK AND PANEL

Products

Position	Product
1	Wheel & Gear Assembly (4)
2	WP3376961 Whirlpool Dishwasher Wheel
3	W11169039 Whirlpool Dishwasher Dish Rack
4	Cover, Housing (2)
5	Housing, Gear (2)
6	Worm, Dishrack (2)
7	WP9741232 Whirlpool Dishwasher Screw
9	WP304204 Whirlpool Dishwasher Spray Arm
12	W10311986 Whirlpool Dishwasher Lower Rack
14	Bumper
15	Tower
16	Panel, Reversible Side
17	Silverware Basket
19	Handle, Basket
21	Trim, Basket
22	Screw, Lower Side Panel Mounting (2)
23	Panel, Lower Side
24	W11089212 Whirlpool Washer
25	W10080180 Whirlpool Nut
