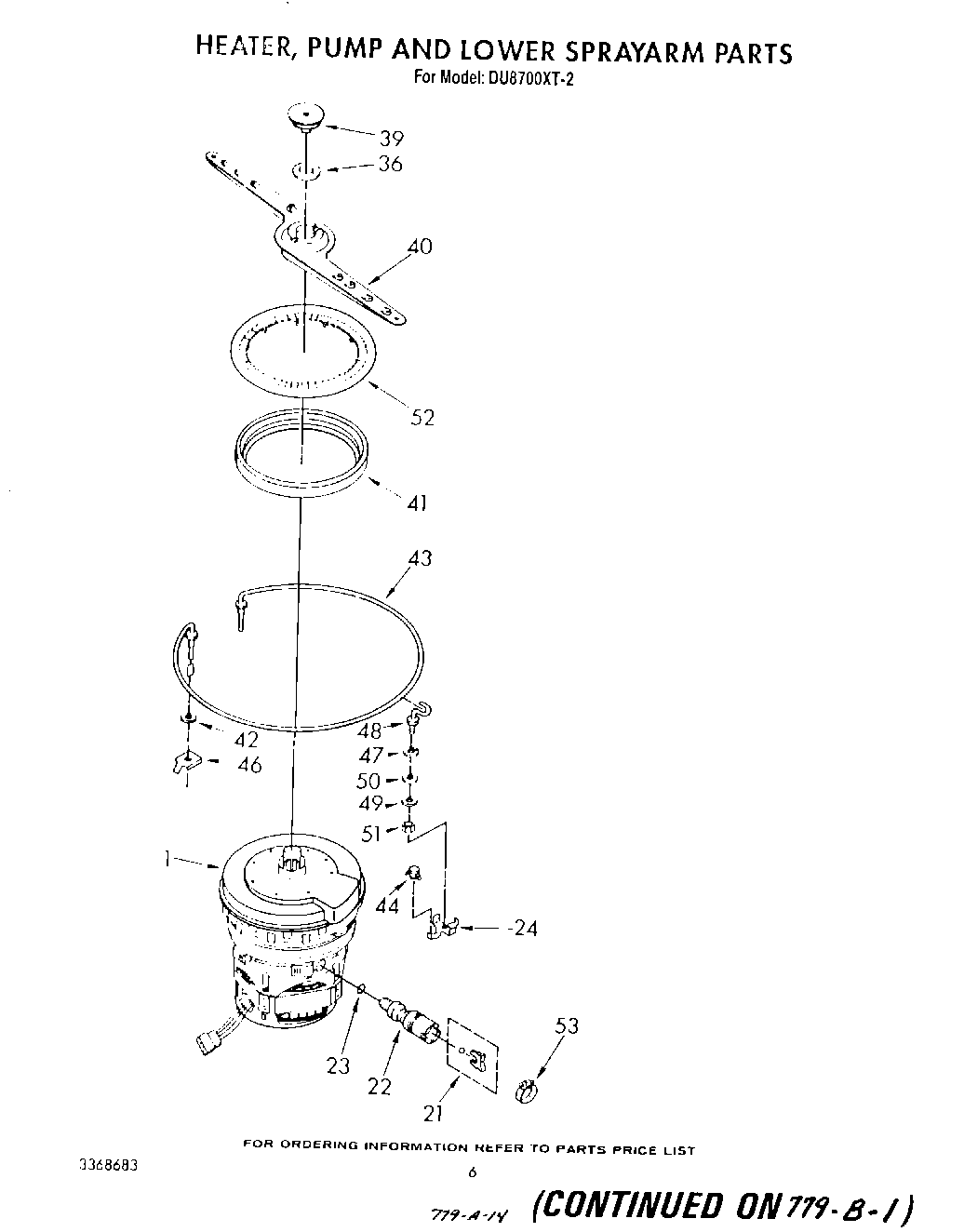

DU8700XT2 04 – HEATER, PUMP AND LOWER SPRAY ARM

Products

Position	Product
1	Pump & Motor Assembly
21	Retainer, Check Valve
22	675238 Whirlpool Check Valve
23	``O`` Ring
24	Bracket, Thermostat
36	WP719576 Whirlpool Dishwasher Bearing
39	Cap, Nozzle
40	Spray Arm, Lower
41	717000 Whirlpool Dishwasher Gasket
42	WP717273 Whirlpool Dishwasher Rubber Washer
43	Heater (Alternate)
43	Heater (Alternate)
43	Heater
44	Thermostat
44	Thermostat (Alt.)
44	Thermostat (Alt.)
46	Nut, Heater Element
47	Washer, Retainer (2)
48	Support, Heater (2)
49	Washer (2)
50	Washer (2)
51	Nut, Hex
52	Grate
53	WP3367052 Whirlpool Hose Clamp
