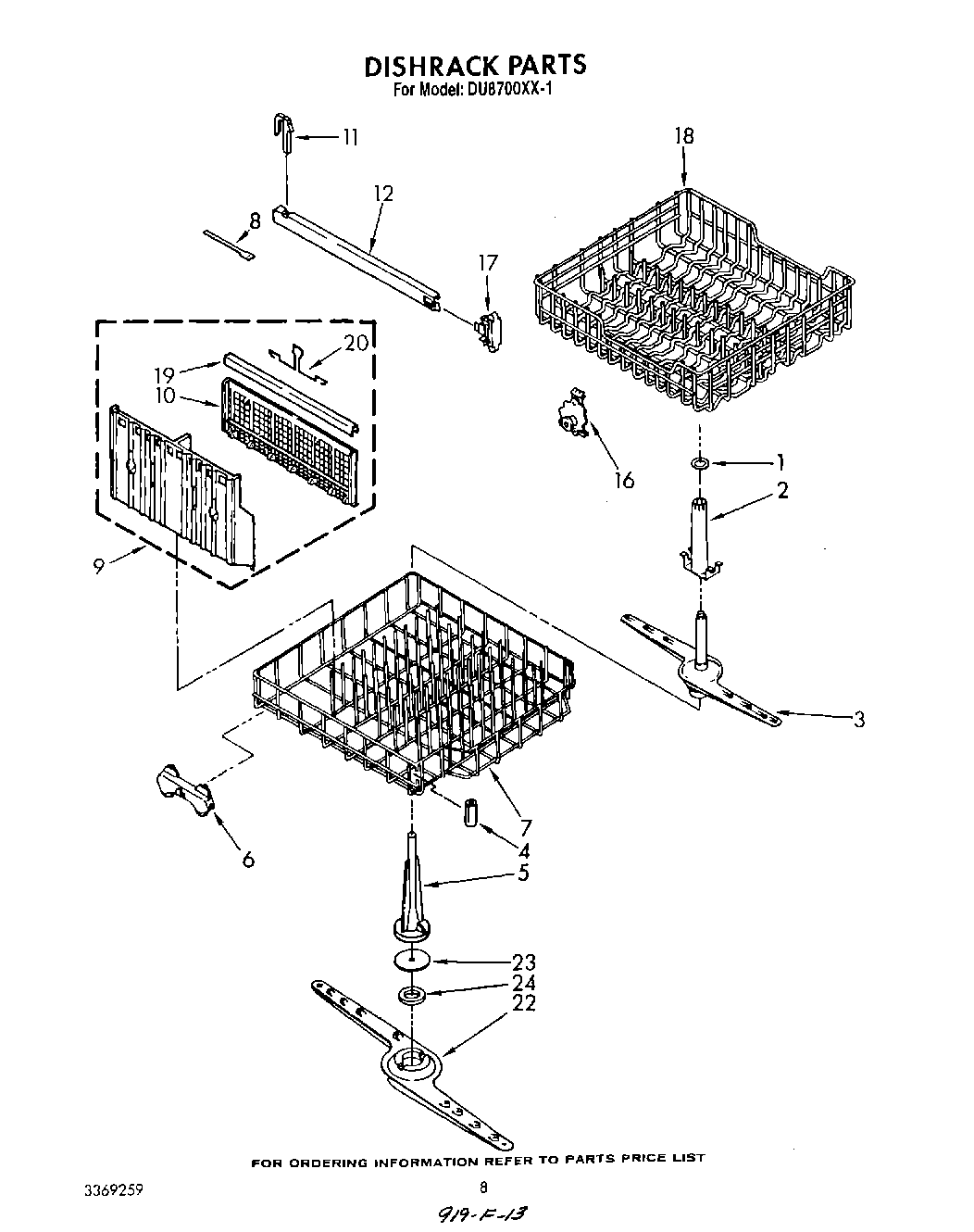

DU8700XX1 06 – DISHRACK , LIT/OPTIONAL

Products

Position	Product
	Parts List
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Wiring Diagram
	Instructions, Installation
	Energy Guide
	Guide, Use & Care
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	Bumper
5	Tower
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
8	Clip, Strap
9	Silverware Basket Assembly
10	Cover, Basket
11	Stop, Track (2)
12	Track, Rack
16	Adjuster Assy.
17	Endcap, Front or Rear (2)
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
24	72017 Whirlpool Appliance Touch-Up Paint White
24	WP72107 Whirlpool Touchup
24	Leveler (Thinner)
24	Almond (Uncut)
24	WPL 72112
24	350942 Whirlpool Spray Paint
24	Enamel, Black (1 Qt. Uncut)
24	285006 Whirlpool Spray
24	Vinyl Touch Up (Blue)
24	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
24	350956 Whirlpool Spray Assembly
