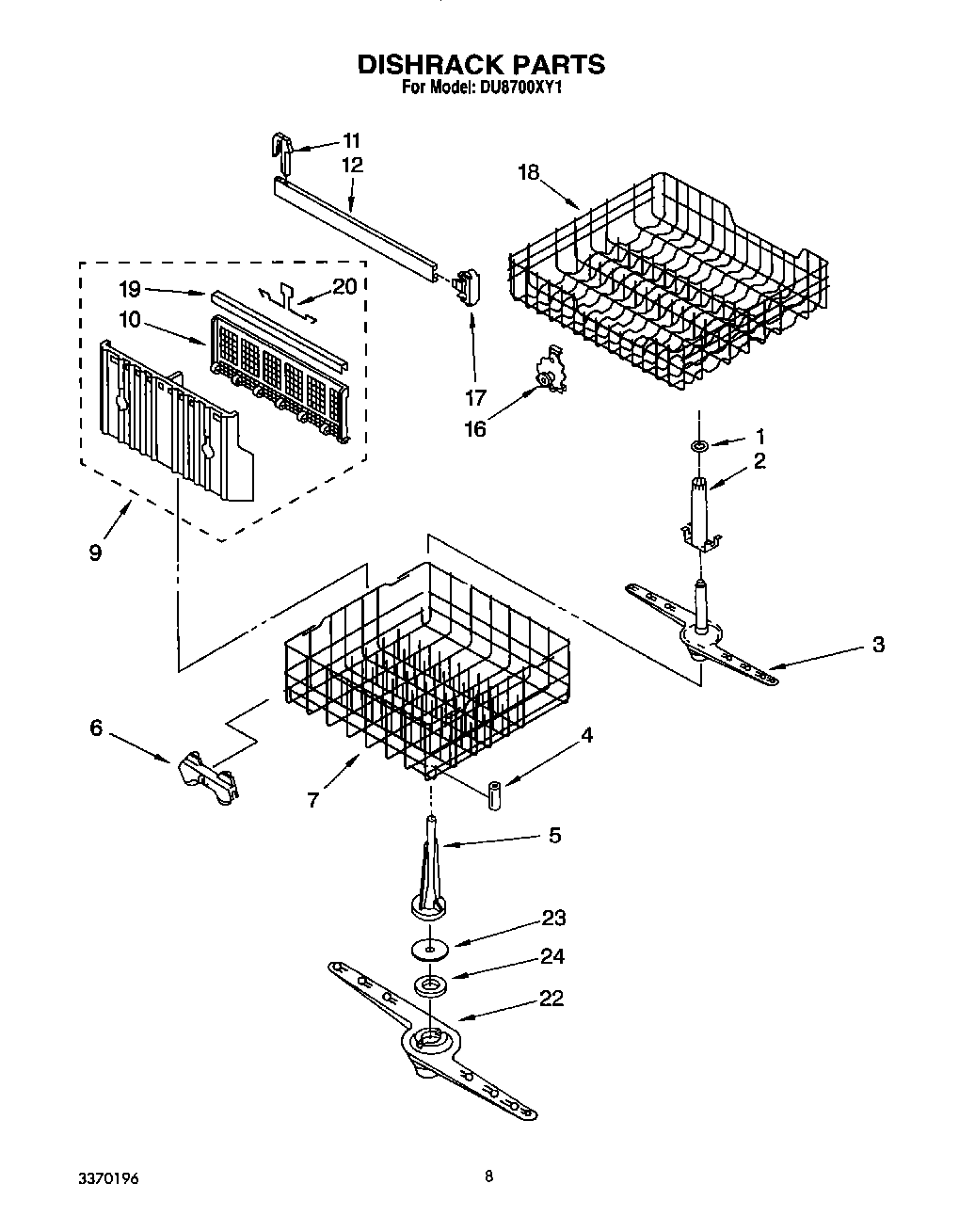

DU8700XY1 06 – DISHRACK, LIT/OPTIONALadmin2025-04-26T11:51:07+00:00DU8700XY1 06 – DISHRACK, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Guide, Use & Care |
| W10840471 Whirlpool Dishwasher Touch Up |
| Side Panel Kit (White) |
| Side Panel Kit: (Almond) |
| Tine Tip Repair Kit (Blue - Enough For Two Complete Dishracks) |
| Instructions, Installation (Supplement) (Locating Your Water Supply) |
| Wiring Diagram |
| Avocado |
| Gold |
| Toast |
| Platinum |
| WPL LIT3369093 |
| Energy Guide |
| Parts List |
| 676458 Whirlpool Dishwasher Tine Tip |
| 675679 Whirlpool Dishwasher White Tip Tines |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| WP72107 Whirlpool Touchup |
| Leveler (Thinner) |
| Almond (Uncut) |
| WPL 72112 |
| 350942 Whirlpool Spray Paint |
| Enamel, Black (1 Qt. Uncut) |
| 350956 Whirlpool Spray Assembly |
| WP676455 Whirlpool Dishwasher Touch-Up |
| WP676453 Whirlpool Dishwasher Touch-Up |
| 285006 Whirlpool Spray |
| 1 | Clip |
| 2 | Support, Arm |
| 3 | Spray Arm, Upper |
| 4 | WP3385142 Whirlpool Dishwasher Bumper |
| 5 | Tower, Pressure |
| 6 | WP3376961 Whirlpool Dishwasher Wheel |
| 7 | W10311986 Whirlpool Dishwasher Lower Rack |
| 9 | Silverware Basket Assembly |
| 10 | Cover, Basket |
| 11 | Stop, Track (2) |
| 12 | Track, Rack |
| 16 | Wheel and Axle Assembly (4) |
| 17 | Endcap, Front or Rear (2) |
| 18 | W11169039 Whirlpool Dishwasher Dish Rack |
| 19 | Trim, Basket |
| 20 | Handle, Basket |
| 22 | WP3376848 Whirlpool Dishwasher Spray Arm |
| 23 | Cap, Nozzle |
| 24 | WP719576 Whirlpool Dishwasher Bearing |
