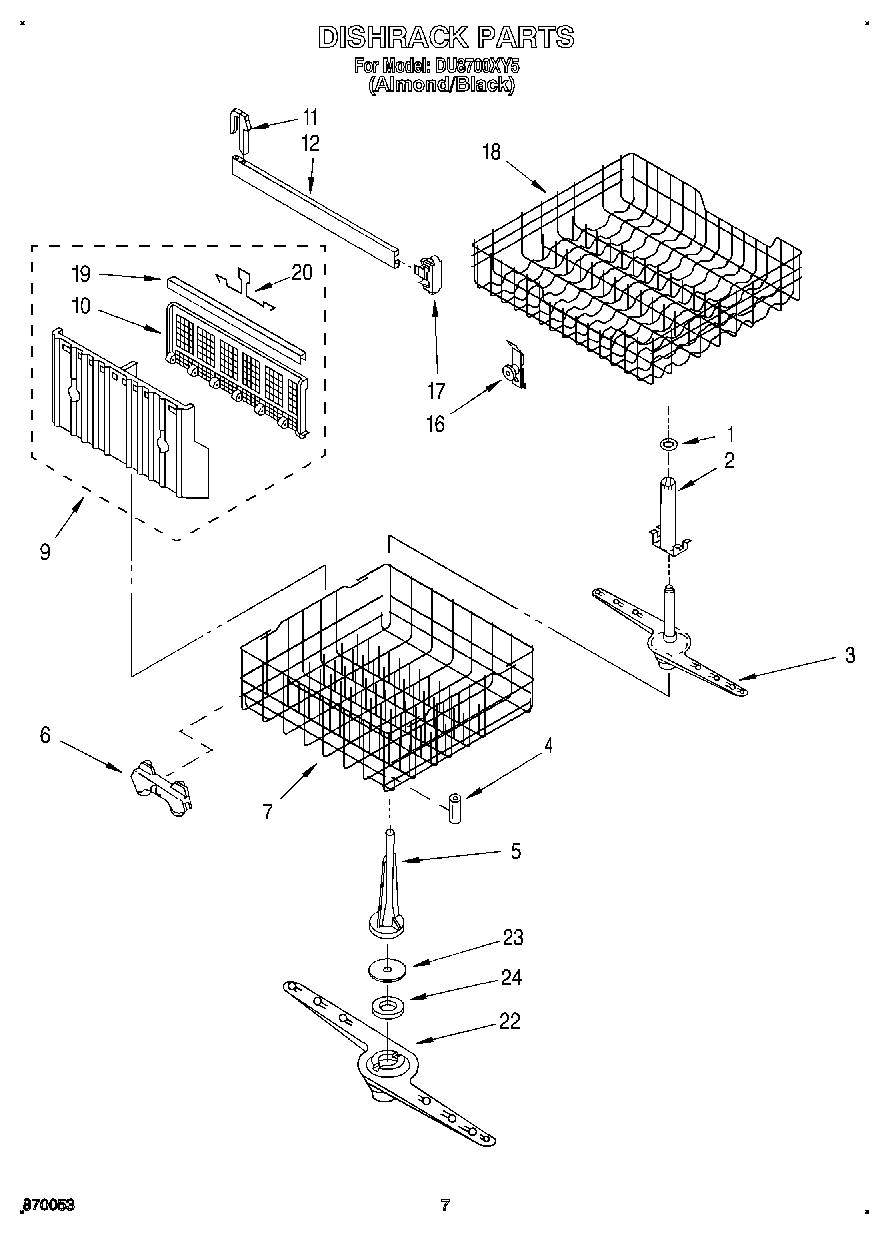

DU8700XY5 05 – DISHRACK, LIT/OPTIONALadmin2025-04-26T11:52:12+00:00DU8700XY5 05 – DISHRACK, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Guide, Use & Care |
| Wiring Diagram |
| Do-It Yourself, Manual |
| WPL LIT3372194 |
| Instructions, Installation (Supplement) (Locating Your Water Supply) |
| WPL LIT3374368 |
| 1 | Clip |
| 2 | Support, Arm |
| 3 | Spray Arm, Upper |
| 4 | WP3385142 Whirlpool Dishwasher Bumper |
| 5 | Tower, Pressure |
| 6 | WP3376961 Whirlpool Dishwasher Wheel |
| 7 | W10311986 Whirlpool Dishwasher Lower Rack |
| 9 | Silverware Basket Assembly |
| 10 | Cover, Basket |
| 11 | Stop, Track (2) |
| 12 | Track, Rack |
| 16 | WPW10204131 Whirlpool Dishwasher Dishrack Adjuster |
| 17 | Endcap, Front or Rear (2) |
| 18 | W11169039 Whirlpool Dishwasher Dish Rack |
| 19 | Trim, Basket |
| 20 | Handle, Basket |
| 22 | WP3376848 Whirlpool Dishwasher Spray Arm |
| 23 | Cap, Nozzle |
| 24 | WPL 72112 |
| 24 | Avocado |
| 24 | 350956 Whirlpool Spray Assembly |
| 24 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 24 | Enamel, Black (1 Qt. Uncut) |
| 24 | Toast |
| 24 | Platinum |
| 24 | WP72107 Whirlpool Touchup |
| 24 | Almond (Uncut) |
| 24 | Leveler (Thinner) |
| 24 | 350942 Whirlpool Spray Paint |
| 24 | DOOR SPRING KIT: (HEAVY DUTY) |
| 24 | Tine Tip Repair Kit (Blue - Enough For Two Complete Dishracks) |
| 24 | Side Panel Kit (White) |
| 24 | W10840471 Whirlpool Dishwasher Touch Up |
| 24 | 676458 Whirlpool Dishwasher Tine Tip |
| 24 | 675679 Whirlpool Dishwasher White Tip Tines |
| 24 | WP676455 Whirlpool Dishwasher Touch-Up |
| 24 | WP719576 Whirlpool Dishwasher Bearing |
| 24 | Side Panel Kit: (Almond) |
| 24 | WP676453 Whirlpool Dishwasher Touch-Up |
| 24 | 285006 Whirlpool Spray |
| 24 | Gold |
