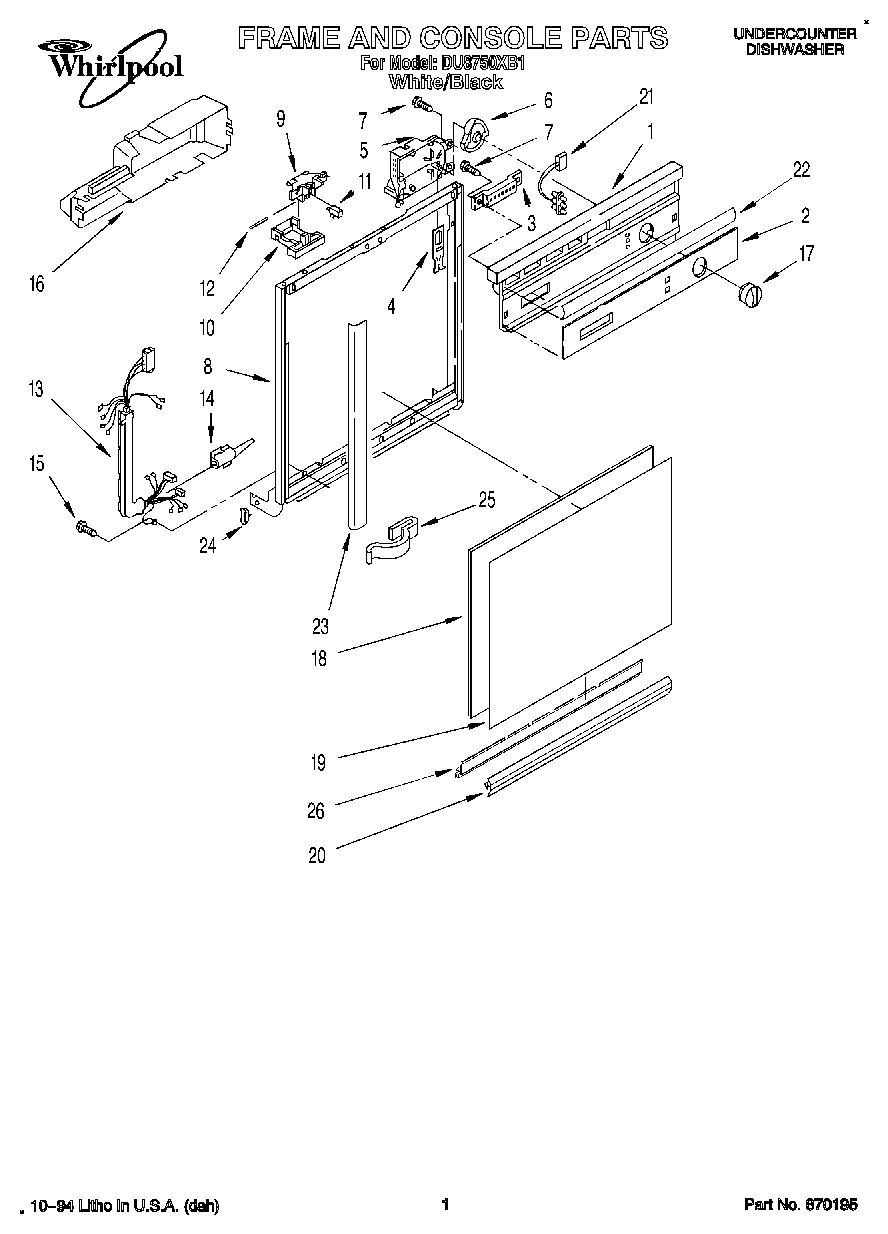

DU8750XB1 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Item 2)
2	Insert, Console
3	Switch
4	Follower, Cam
5	Timer
6	WP3378124 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	3374711 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	WP3368954 Whirlpool Dishwasher Lever
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover Timer
17	Knob, Timer (White)
18	Spacer, Corrugated
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel (White)
21	Light Assembly
22	Trim, Console
23	Trim (2)
24	WP3373234 Whirlpool Dishwasher Bearing
25	8528351 Whirlpool Clip
26	WP3374716 Whirlpool Dishwasher Channel
