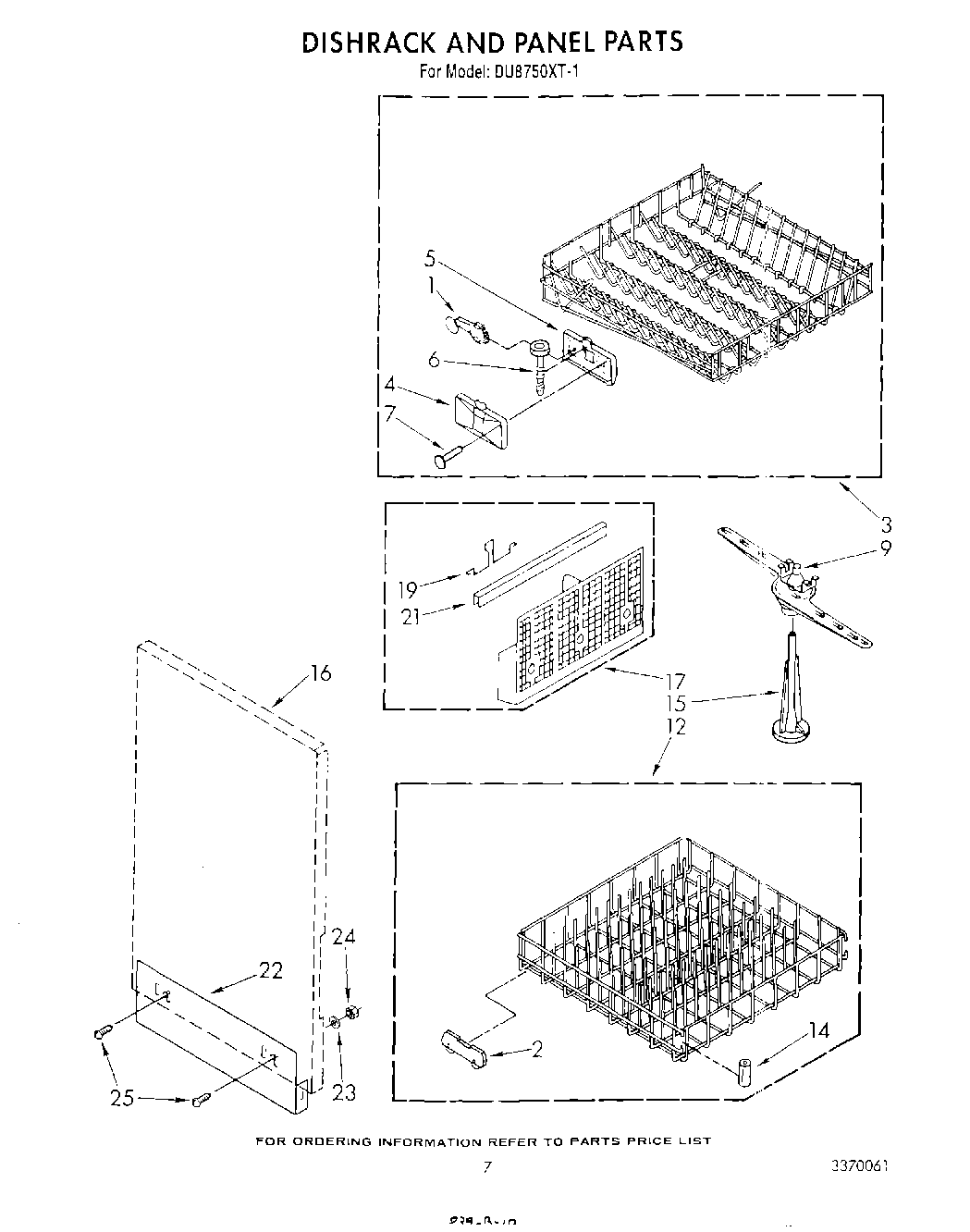

DU8750XT1 05 – DISHRACK AND PANEL

Products

PositionProduct
1Wheel & Gear Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
4Cover, Housing (2)
5Housing, Gear (2)
6Worm, Dishrack (2)
7WP9741232 Whirlpool Dishwasher Screw
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
15Tower
16Panel, Reversible Side
17Silverware Basket
19Handle, Basket
21Trim, Basket
22Panel, Lower Side
23W11089212 Whirlpool Washer
24W10080180 Whirlpool Nut
25Screw, Lower Side Panel Mounting (2)
