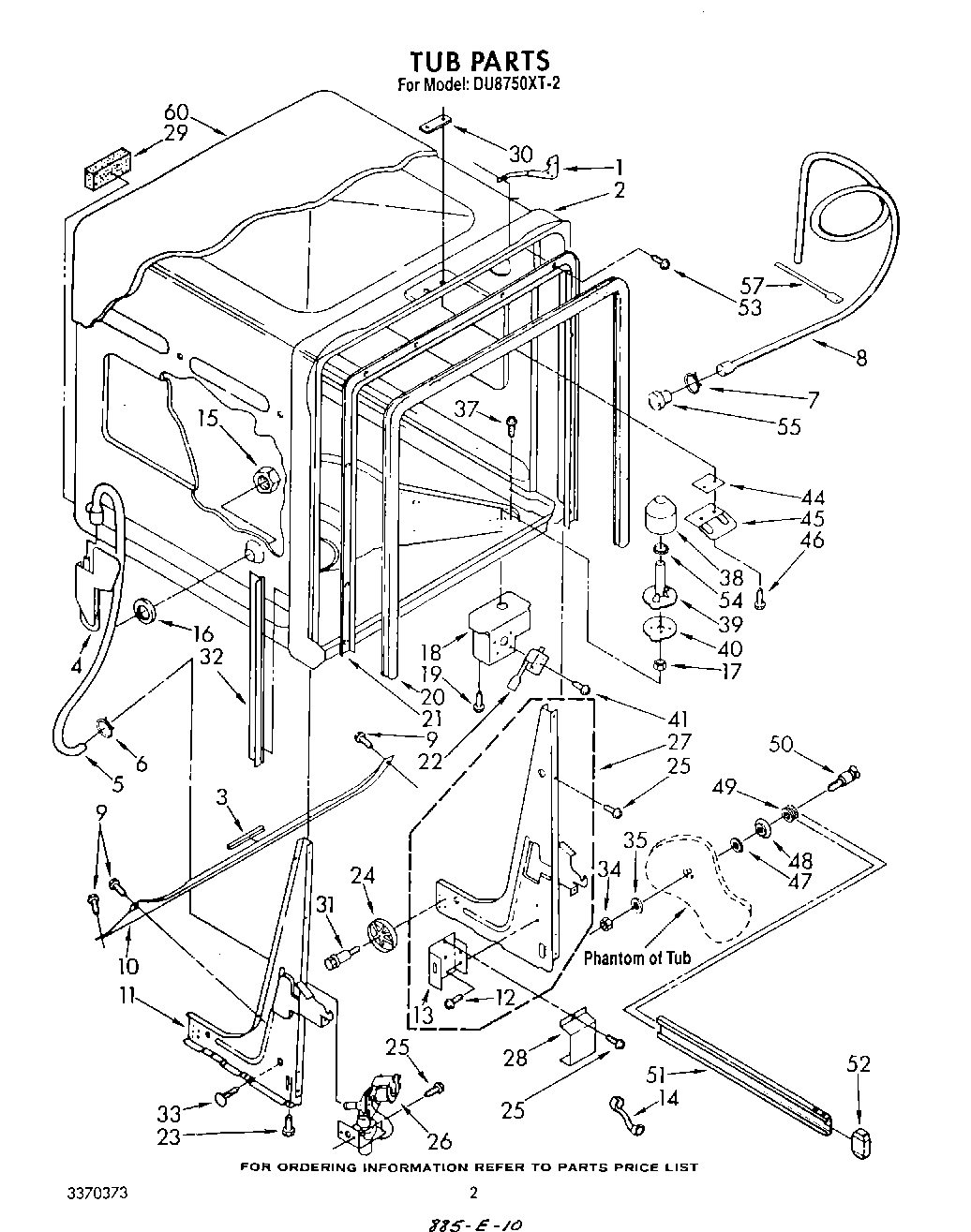

DU8750XT2 02 – TUB , LITERATURE AND OPTIONAL

DU8750XT2 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

DU8750XT2 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3370373
	WPL LIT3370048
	WPL LIT3367993
	WPL LIT3367228
	WPL LIT304290
	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
25	WP90767 Whirlpool Screw
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
29	Block, Foam (2)
30	Nut, Twin Spring
31	Screw (2)
32	Retainer, Sound Shield
33	WP304666 Whirlpool Dishwasher Retainer
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
57	WPW10144763 Whirlpool Tie Wire
60	Kit, Epoxy Patch (White)
60	Golden Harvest (Uncut)
60	Golden Harvest
60	72113 Whirlpool Touch-Up Paint
60	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60	Almond (Uncut)
60	Leveler (Thinner)
60	WP72107 Whirlpool Touchup
60	799344 Whirlpool Refrigerator Paint
60	72017 Whirlpool Appliance Touch-Up Paint White
60	Vinyl Touch Up (Blue)
60	Toast
60	Paint, Spray (13 Oz.) (Platinum)
60	285006 Whirlpool Spray
60	Enamel, Coffee (1 Qt. Uncut)
60	Enamel, New Avocado (1 Qt. Uncut)
60	350930 Whirlpool White Spray Paint
60	W11086533 Whirlpool Dishwasher Shield
60	350942 Whirlpool Spray Paint
60	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
60	WPL 72112
60	Platinum (Uncut)
60	Enamal, Toast (1 Qt. Uncut)
60	350956 Whirlpool Spray Assembly
