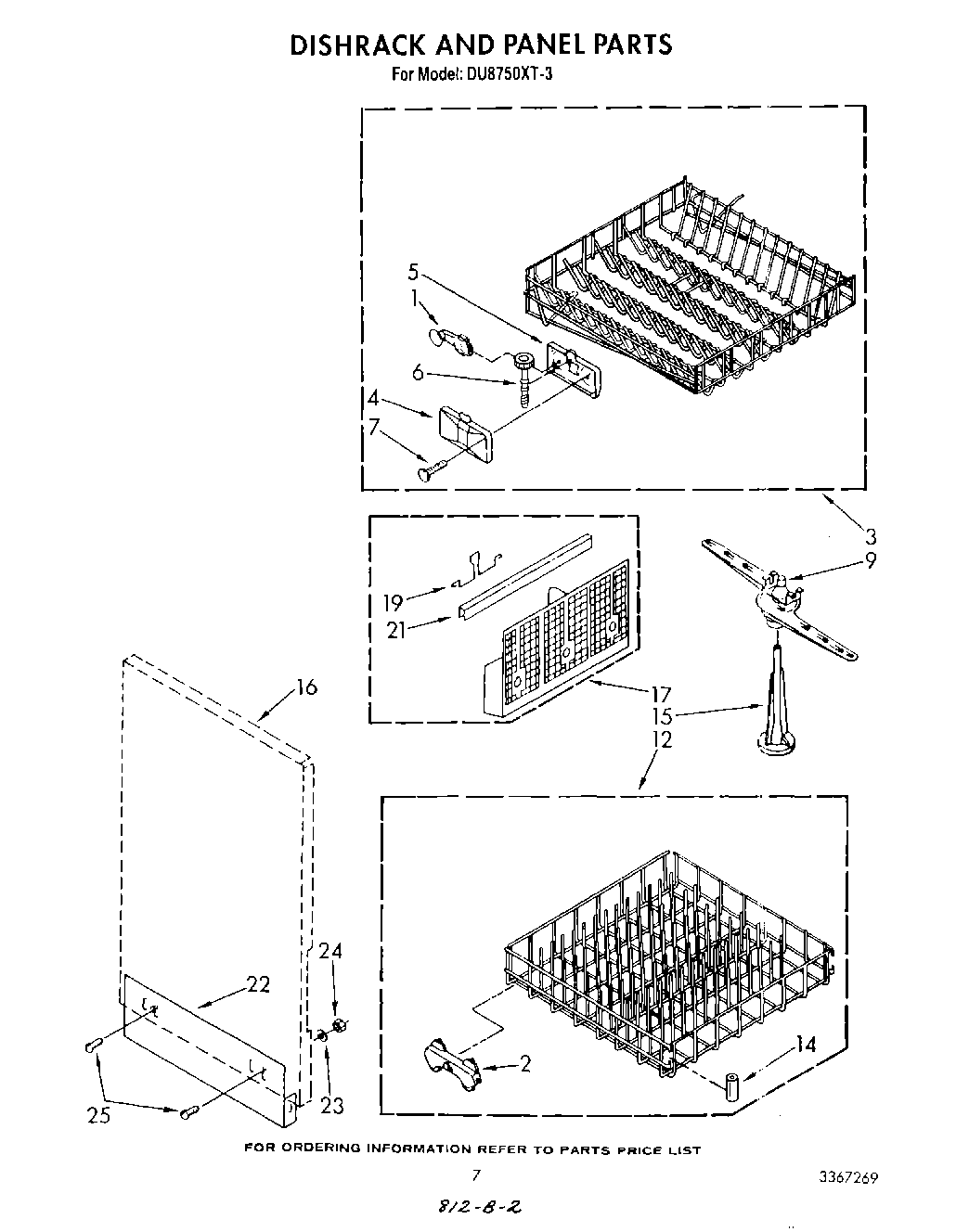

DU8750XT3 05 – DISHRACK AND PANELadmin2025-04-26T11:51:29+00:00DU8750XT3 05 – DISHRACK AND PANEL ProductsPositionProduct1Wheel & Gear Assembly (4)2WP3376961 Whirlpool Dishwasher Wheel3W11169039 Whirlpool Dishwasher Dish Rack4Cover, Housing (2)5Housing, Gear (2)6Worm, Dishrack (2)7WP9741232 Whirlpool Dishwasher Screw9WP304204 Whirlpool Dishwasher Spray Arm12W10311986 Whirlpool Dishwasher Lower Rack14Bumper15Tower16Panel, Reversible Side17Silverware Basket19Handle, Basket21Trim, Basket22Panel, Lower Side23W11089212 Whirlpool Washer24W10080180 Whirlpool Nut25Screw, Lower Side Panel Mounting (2)
