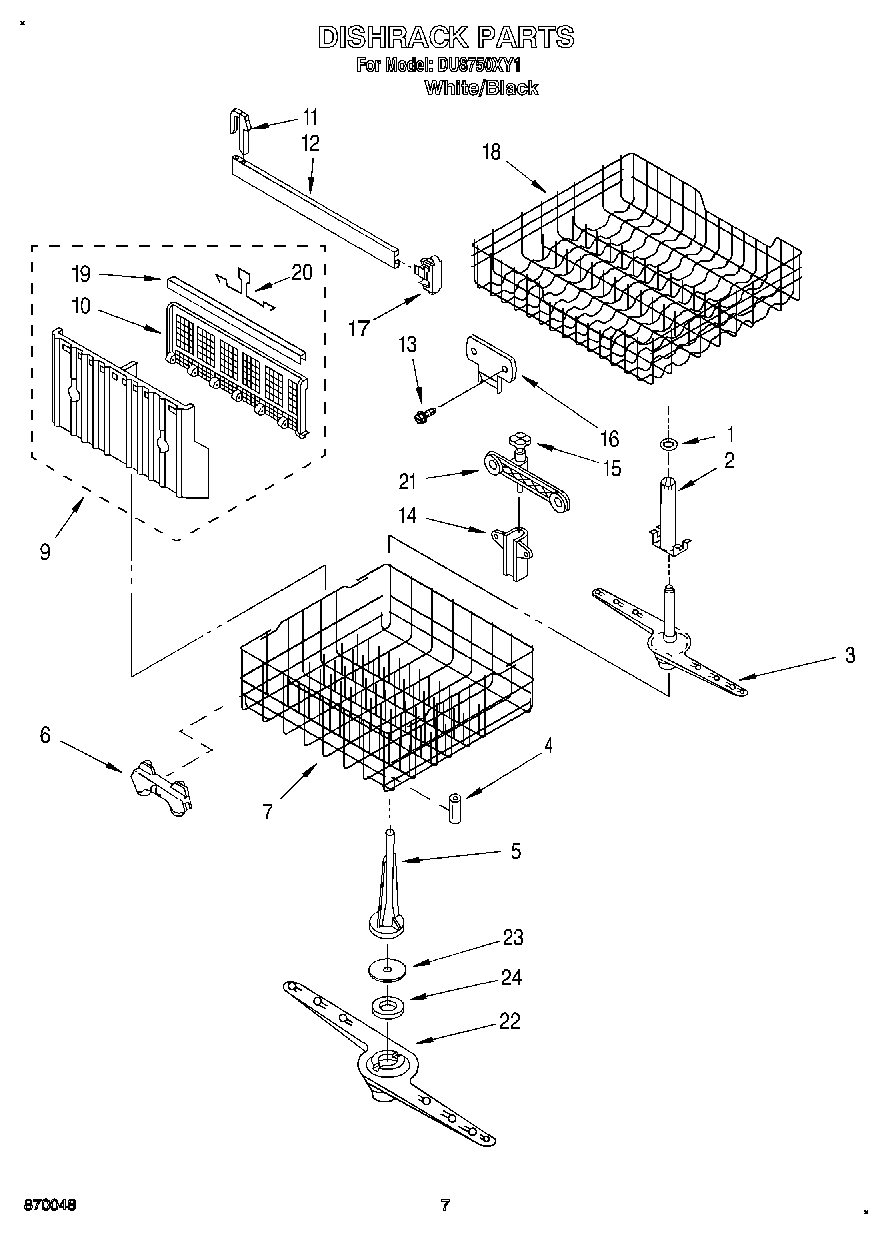

DU8750XY1 05 – DISHRACK, LIT/OPTIONAL

Products

PositionProduct
Instructions, Installation (Supplement) (Locating Your Water Supply)
Do-It Yourself Manual
Wiring Diagram
WPL LIT3372194
Guide, Use & Care
WPL LIT3374368
1Clip
2Support, Arm
3Spray Arm, Upper
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP3376961 Whirlpool Dishwasher Wheel
7W10311986 Whirlpool Dishwasher Lower Rack
9Silverware Basket Assembly
10Cover, Basket
11Stop, Track (2)
12Track, Rack
13WP9741232 Whirlpool Dishwasher Screw
14WP3369980 Whirlpool Dishwasher Housing
15Worm (2)
16WP3369979 Whirlpool Dishwasher Plate
17Endcap, Front or Rear (2)
18W11169039 Whirlpool Dishwasher Dish Rack
19Trim, Basket
20Handle, Basket
21675791 Whirlpool Dishwasher ARM Assembly
22WP3376848 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
24WP676453 Whirlpool Dishwasher Touch-Up
24285006 Whirlpool Spray
24Enamel, Black (1 Qt. Uncut)
24350942 Whirlpool Spray Paint
24WPL 72112
24Almond (Uncut)
24Leveler (Thinner)
24WP72107 Whirlpool Touchup
2472017 Whirlpool Appliance Touch-Up Paint White
24WP676455 Whirlpool Dishwasher Touch-Up
24Platinum
24350956 Whirlpool Spray Assembly
24DOOR SPRING KIT: (HEAVY DUTY)
24WP719576 Whirlpool Dishwasher Bearing
24Side Panel Kit (White)
24W10840471 Whirlpool Dishwasher Touch Up
24Side Panel Kit: (Almond)
24676458 Whirlpool Dishwasher Tine Tip
24675679 Whirlpool Dishwasher White Tip Tines
24Avocado
24Gold
24Toast
