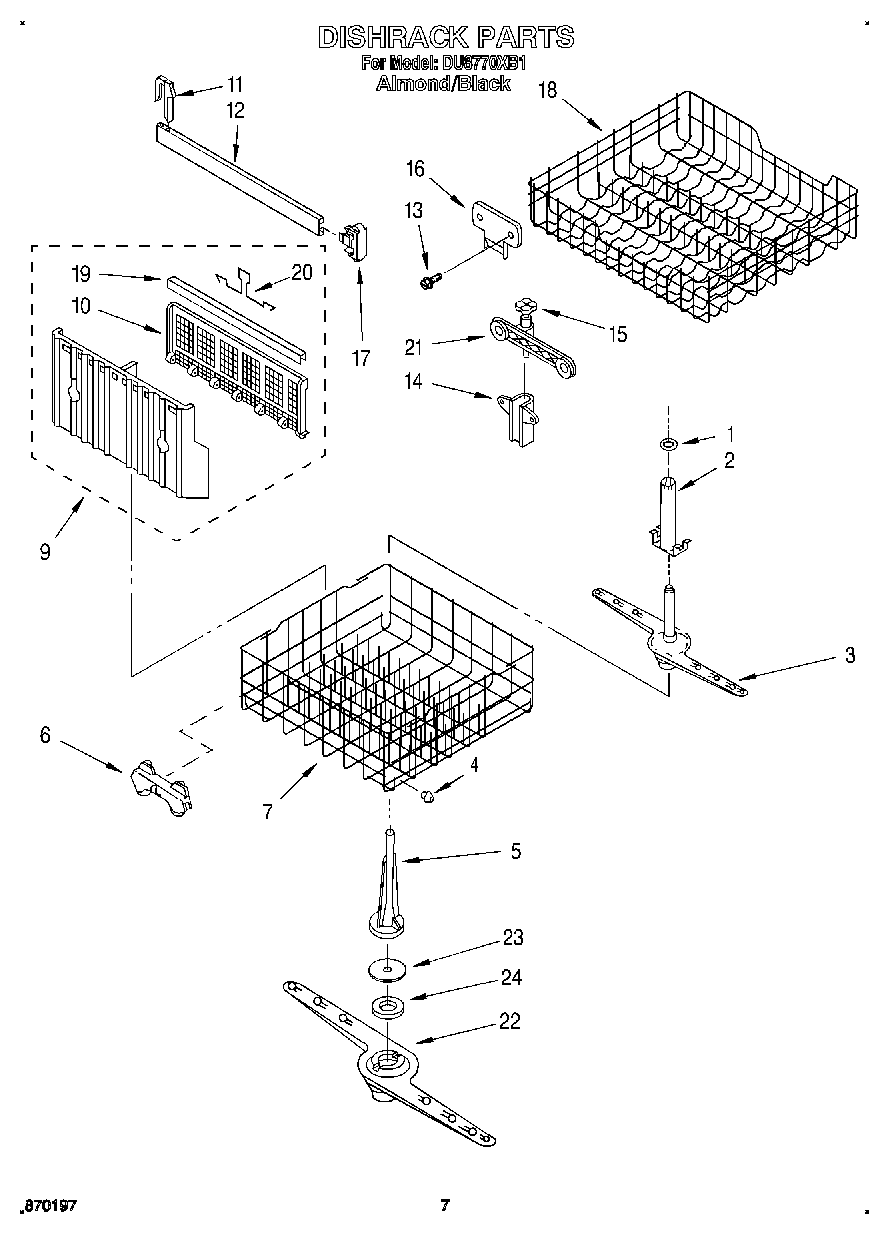

DU8770XB1 05 – DISHRACK, LIT/OPTIONAL

DU8770XB1 05 – DISHRACK, LIT/OPTIONAL

Written by

in

DU8770XB1 05 – DISHRACK, LIT/OPTIONAL

Products

PositionProduct
Energy Guide
Instructions, Installation
Instructions, Installation (Supplement) (Locating Your Water Supply)
Do-It Yourself Manual
WPL LIT3373741
Wiring Diagram
1Clip
2Support, Arm
3Spray Arm, Upper
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP3376961 Whirlpool Dishwasher Wheel
7W10311986 Whirlpool Dishwasher Lower Rack
9Silverware Basket Assembly
10Cover, Basket
11Stop, Track (2)
12Track, Rack
13WP9741232 Whirlpool Dishwasher Screw
14WP3369980 Whirlpool Dishwasher Housing
15Worm (2)
16WP3369979 Whirlpool Dishwasher Plate
17Endcap, Front or Rear (2)
18W11169039 Whirlpool Dishwasher Dish Rack
19Trim, Basket
20Handle, Basket
21675791 Whirlpool Dishwasher ARM Assembly
22WP3376848 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24350956 Whirlpool Spray Assembly
24WP676455 Whirlpool Dishwasher Touch-Up
24WP676453 Whirlpool Dishwasher Touch-Up
2472032 Whirlpool Touch Up Paint Black
24285006 Whirlpool Spray
24Enamel, Black (1 Qt. Uncut)
24Almond (Uncut)
24WP72107 Whirlpool Touchup
2472017 Whirlpool Appliance Touch-Up Paint White
24Platinum
24Toast
24Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
24WP719576 Whirlpool Dishwasher Bearing
24Side Panel Kit: (Almond)
24Side Panel Kit (White)
24DOOR SPRING KIT: (HEAVY DUTY)
24W10840471 Whirlpool Dishwasher Touch Up
24676458 Whirlpool Dishwasher Tine Tip
24Avocado
24675679 Whirlpool Dishwasher White Tip Tines
24Gold
