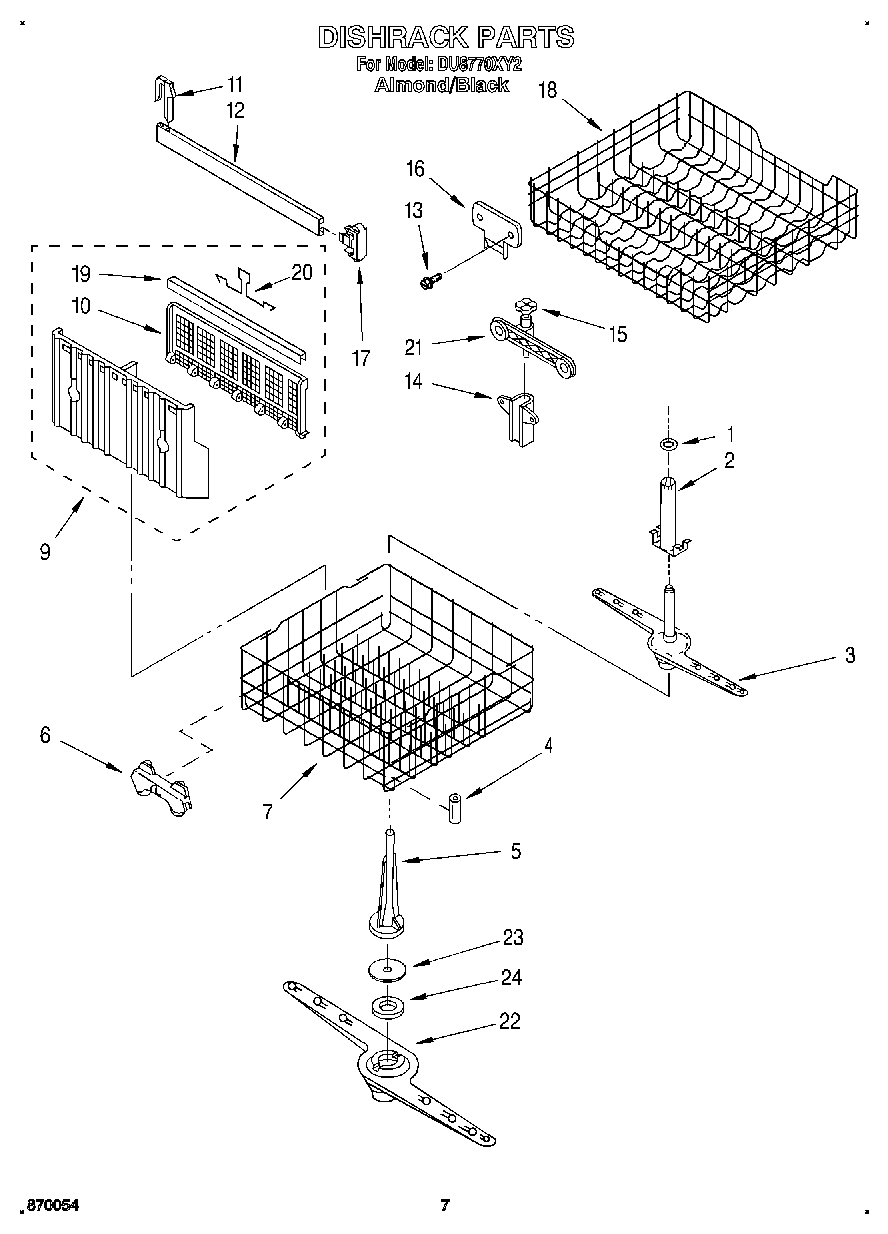

DU8770XY2 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Do-It Yourself Manual
	Wiring Diagram
	WPL LIT3372194
	Guide, Use & Care
	WPL LIT3374368
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Stop, Track (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	Endcap, Front or Rear (2)
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	675791 Whirlpool Dishwasher ARM Assembly
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
24	WP676453 Whirlpool Dishwasher Touch-Up
24	285006 Whirlpool Spray
24	Enamel, Black (1 Qt. Uncut)
24	350942 Whirlpool Spray Paint
24	WPL 72112
24	Almond (Uncut)
24	Leveler (Thinner)
24	WP72107 Whirlpool Touchup
24	72017 Whirlpool Appliance Touch-Up Paint White
24	WP676455 Whirlpool Dishwasher Touch-Up
24	Platinum
24	350956 Whirlpool Spray Assembly
24	DOOR SPRING KIT: (HEAVY DUTY)
24	WP719576 Whirlpool Dishwasher Bearing
24	Side Panel Kit (White)
24	W10840471 Whirlpool Dishwasher Touch Up
24	Side Panel Kit: (Almond)
24	676458 Whirlpool Dishwasher Tine Tip
24	675679 Whirlpool Dishwasher White Tip Tines
24	Avocado
24	Gold
24	Toast
