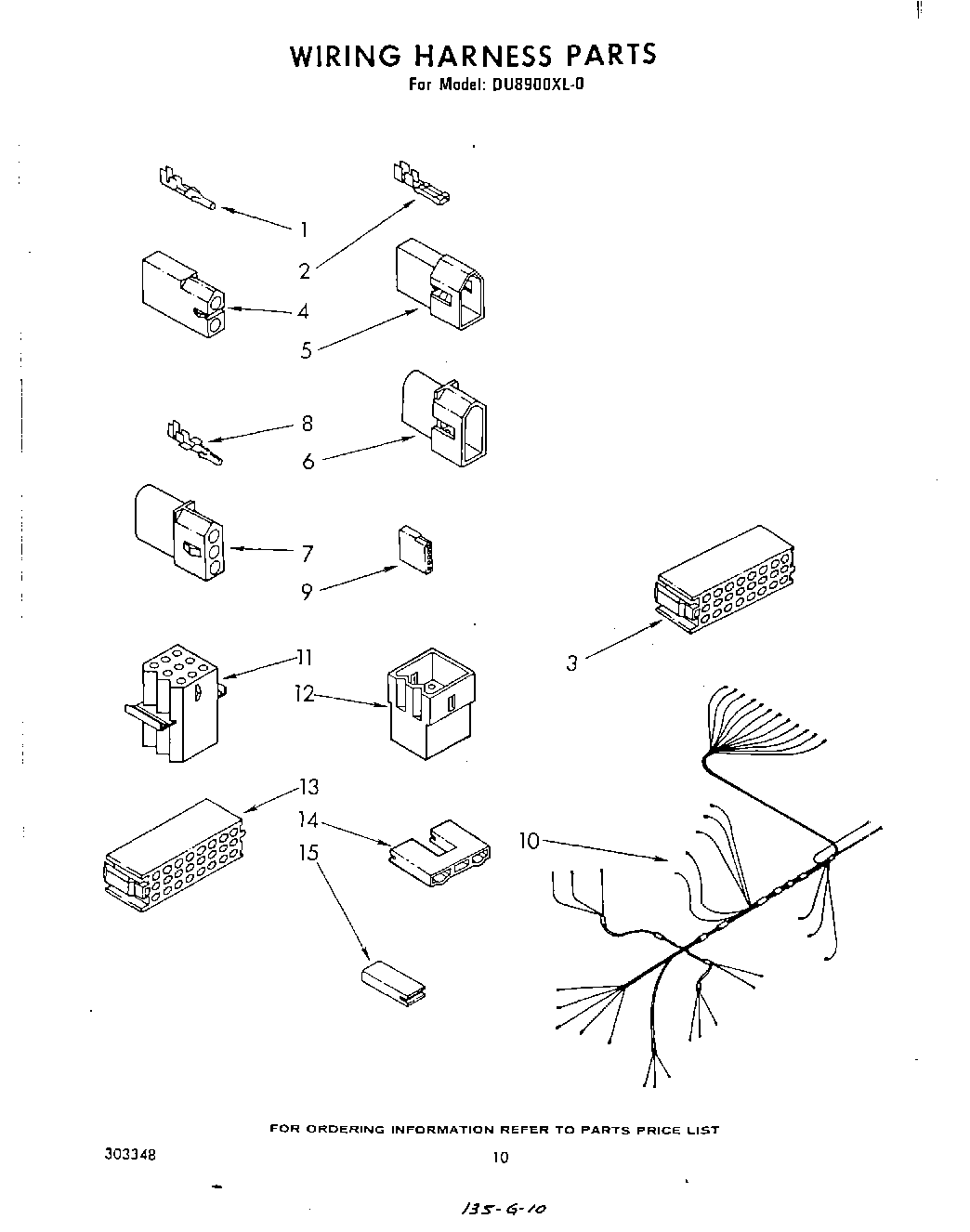

DU8900XL0 07 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
3	W10876590 Whirlpool Connector
4	Receptacle, Latching (2-Way) (Uses Terminal 94614)
5	WP717253 Whirlpool Dishwasher Connector
6	353424 Whirlpool Connector
7	Connector (Door Switch)
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
11	Plug, Terminal (Cabinet Harness)
12	Cap, Terminal (Console Harness)
13	Timer, Block Disconnect (White)
14	Terminal Insulator
14	Connector Block (Alternate)
15	Connector Block
15	Insulator, Terminal
