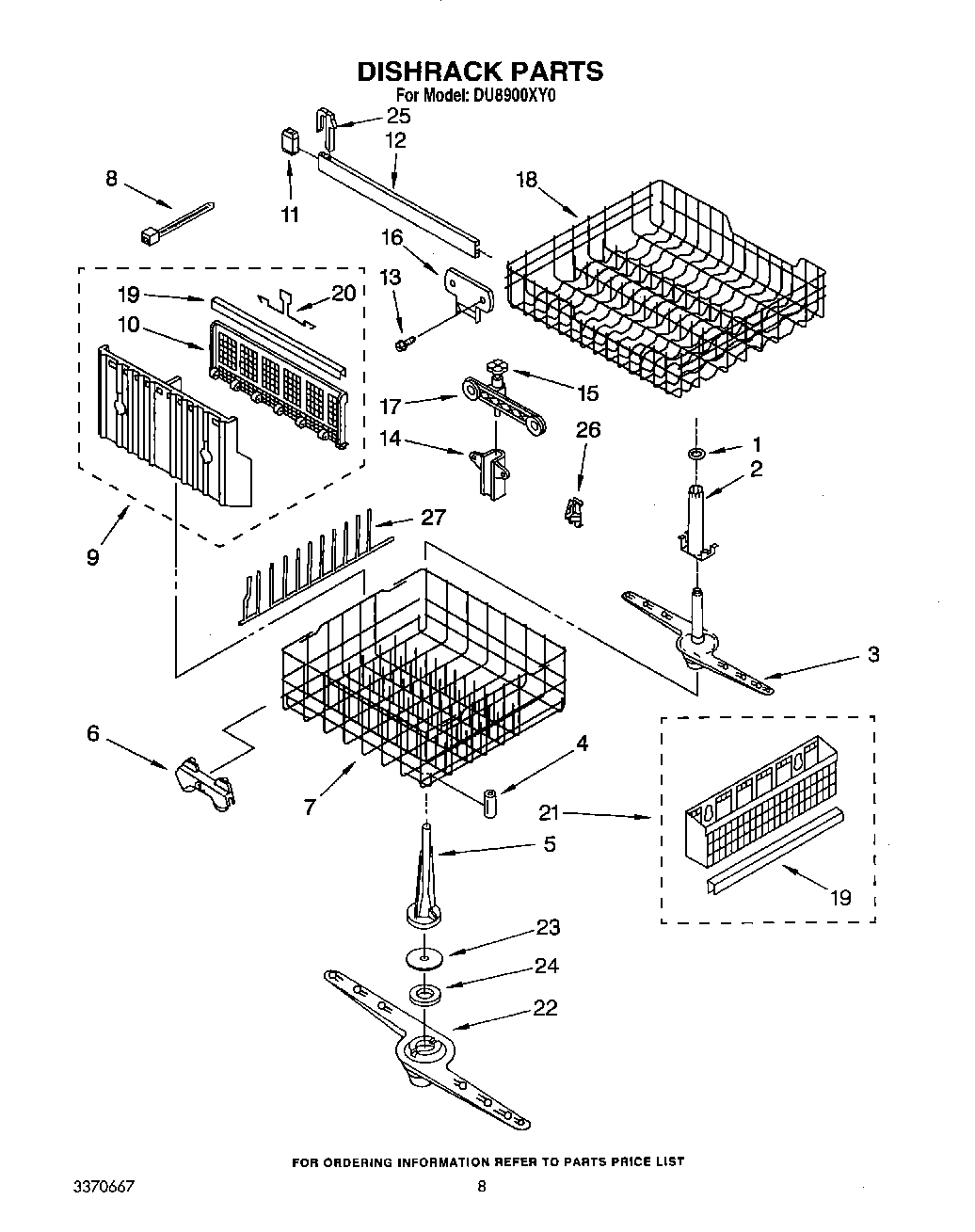

DU8900XY0 06 – DISHRACK, LIT/OPTIONALadmin2025-04-26T11:54:23+00:00DU8900XY0 06 – DISHRACK, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Instructions, Installation |
| Energy Guide |
| WPL LIT3369600 |
| WPL LIT3369098 |
| WPL LIT3370667 |
| Instructions, Installation (Supplement) (Locating Your Water Supply) |
| 1 | Clip |
| 2 | Support, Arm |
| 3 | Spray Arm, Upper |
| 4 | WP3385142 Whirlpool Dishwasher Bumper |
| 5 | Tower, Pressure |
| 6 | WP3376961 Whirlpool Dishwasher Wheel |
| 7 | W10311986 Whirlpool Dishwasher Lower Rack |
| 8 | Clip, Strap |
| 9 | Silverware Basket Assembly |
| 10 | Cover, Basket |
| 11 | Endcap, Front or Rear (2) |
| 12 | Track, Rack |
| 13 | WP9741232 Whirlpool Dishwasher Screw |
| 14 | WP3369980 Whirlpool Dishwasher Housing |
| 15 | Worm (2) |
| 16 | WP3369979 Whirlpool Dishwasher Plate |
| 17 | 675791 Whirlpool Dishwasher ARM Assembly |
| 18 | W11169039 Whirlpool Dishwasher Dish Rack |
| 19 | Trim, Basket |
| 20 | Handle, Basket |
| 21 | Basket, Utensil (Includes Item 19) |
| 22 | WP3376848 Whirlpool Dishwasher Spray Arm |
| 23 | Cap, Nozzle |
| 24 | WP719576 Whirlpool Dishwasher Bearing |
| 25 | Stop, Track (2) |
| 26 | WP3368629 Whirlpool Dishwasher Retainer |
| 27 | Leveler (Thinner) |
| 27 | Almond (Uncut) |
| 27 | WP72107 Whirlpool Touchup |
| 27 | Enamel, Black (1 Qt. Uncut) |
| 27 | 350942 Whirlpool Spray Paint |
| 27 | 285006 Whirlpool Spray |
| 27 | W10728160 Whirlpool Tine Assembly |
| 27 | WPL 72112 |
| 27 | 350956 Whirlpool Spray Assembly |
| 27 | Vinyl Touch Up (Blue) |
| 27 | Avocado |
| 27 | Gold |
| 27 | Toast |
| 27 | Platinum |
| 27 | Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks) |
| 27 | Side Panel Kit: (Almond) |
| 27 | Side Panel Kit (White) |
| 27 | 72017 Whirlpool Appliance Touch-Up Paint White |
