DU8900XY1 06 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	350956 Whirlpool Spray Assembly
	WPL LIT3370198
	675679 Whirlpool Dishwasher White Tip Tines
	676458 Whirlpool Dishwasher Tine Tip
	W10840471 Whirlpool Dishwasher Touch Up
	Side Panel Kit (White)
	Side Panel Kit: (Almond)
	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
	Platinum
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Toast
	Gold
	WPL LIT3369093
	WPL LIT3369098
	WPL LIT3369600
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	Enamel, Black (1 Qt. Uncut)
	285006 Whirlpool Spray
	WP676453 Whirlpool Dishwasher Touch-Up
	WP676455 Whirlpool Dishwasher Touch-Up
	Energy Guide
	Avocado

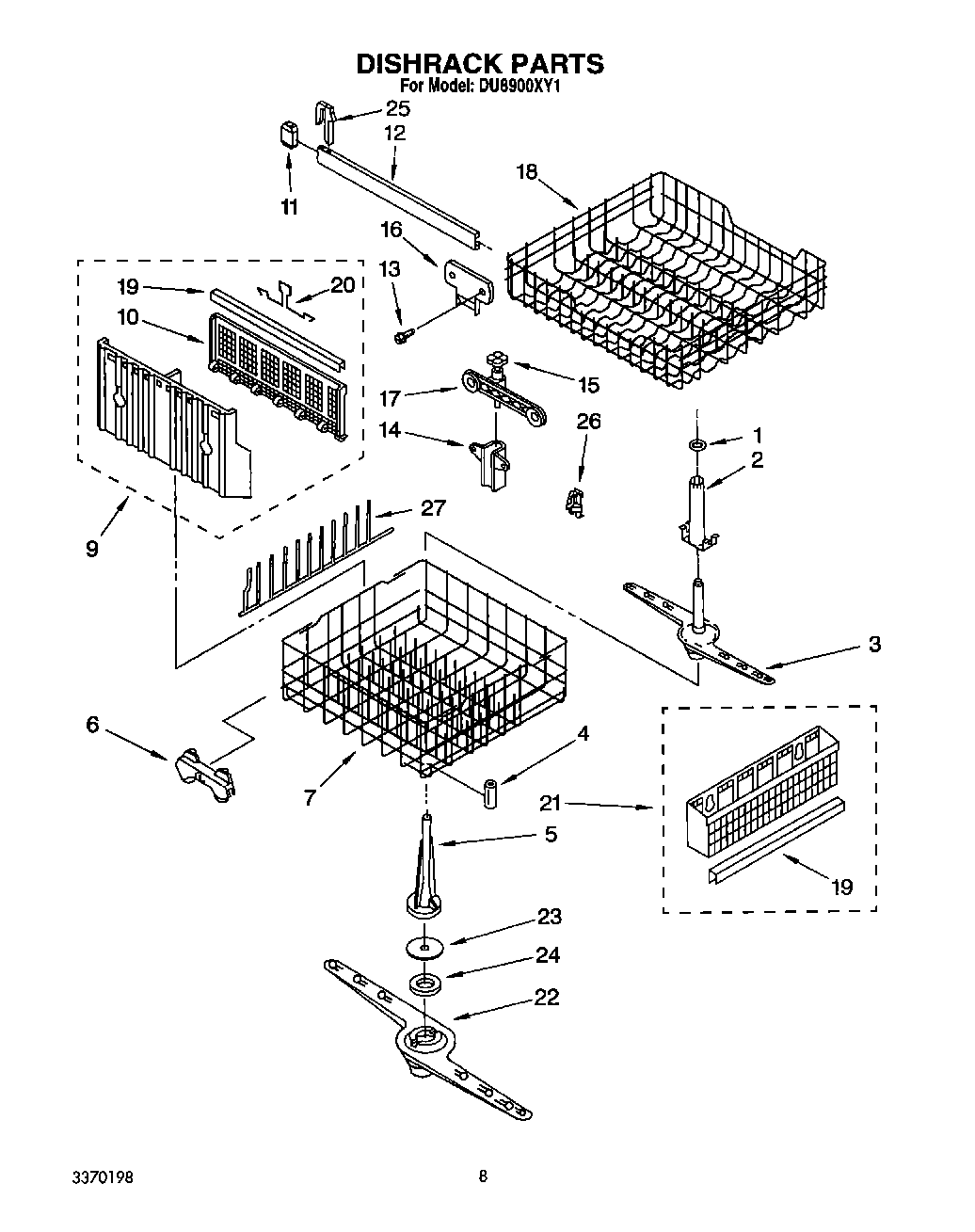

1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	Basket, Utensil (Includes Item 19)
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	Stop, Track (2)
26	WP3368629 Whirlpool Dishwasher Retainer
27	W10728160 Whirlpool Tine Assembly
