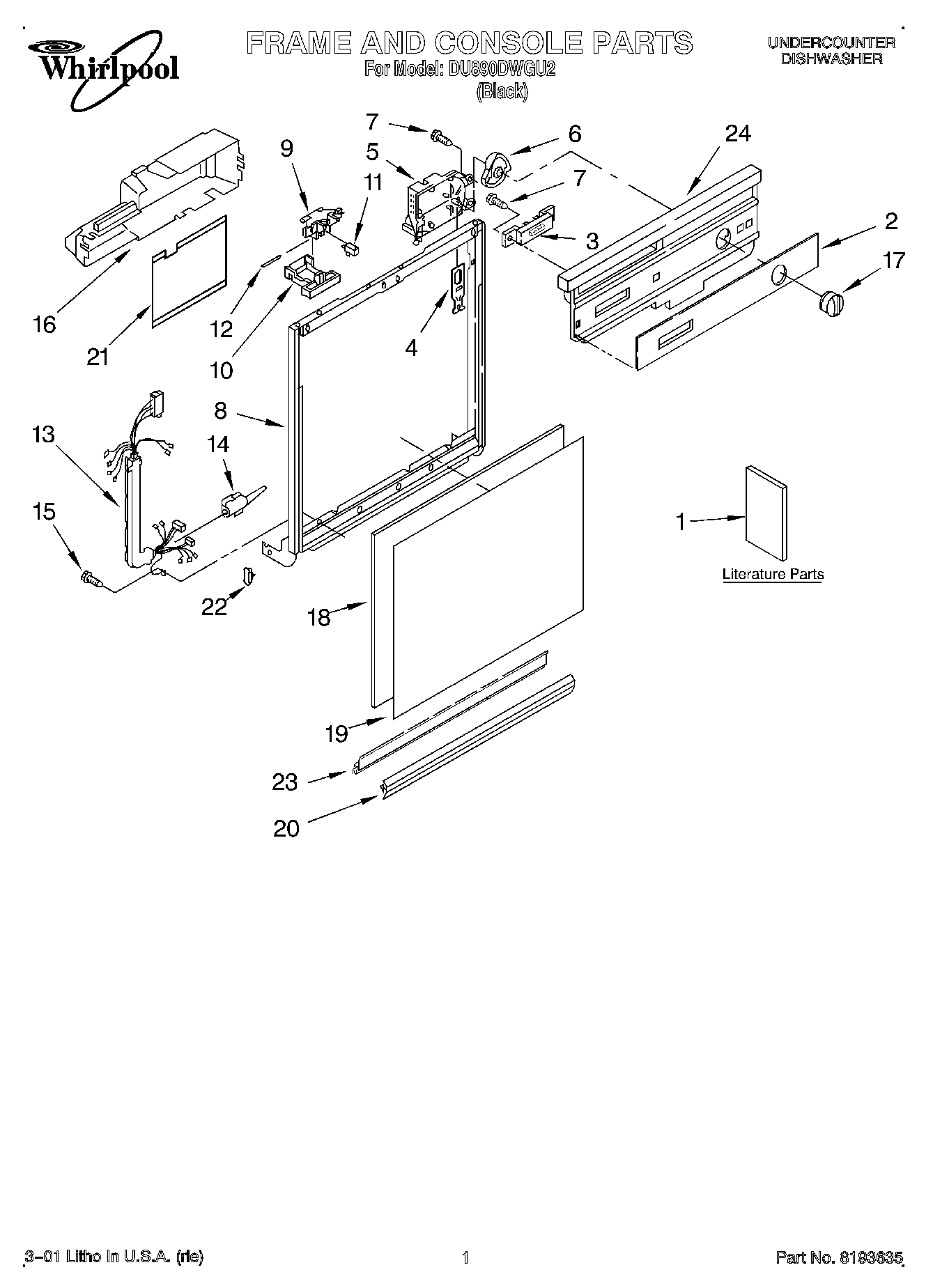

DU890DWGU2 01 – FRAME AND CONSOLE, LITERATURE

Products

PositionProduct
1Guide, Energy
1Do-It Yourself, Manual
1Instructions, Installation
1Guide, Use & Care
1Diagram, Wiring
1Instructions, Installation (Supplement) (Locating Your Water Supply)
2Insert, Console (Black)
3Switch, 6 Button (Black)
4WP3369529 Whirlpool Dishwasher Follower
5WP8535368 Whirlpool Dishwasher Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel
21Shield, Control Cover
22WP3373234 Whirlpool Dishwasher Bearing
23WP3374716 Whirlpool Dishwasher Channel
24Console (Includes Item 2) (Black)
