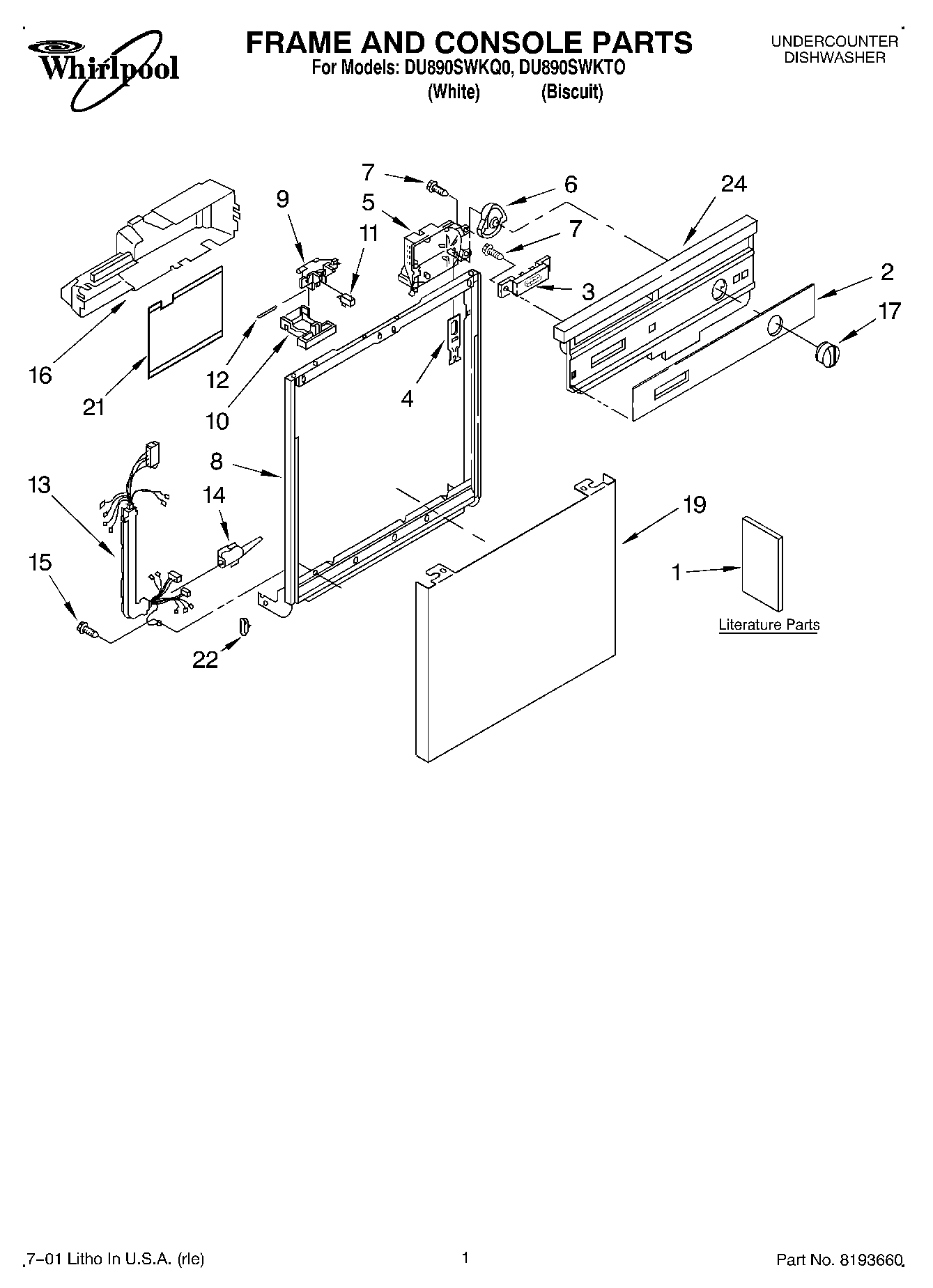

DU890SWKT0 01 – FRAME & CONSOLE, LITERATURE

Products

Position	Product
1	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	Do-It Yourself Manual
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Diagram, Wiring)
1	Literature Parts (Guide, Energy)
1	Literature Parts (Guide, Use & Care)
2	Insert, Console (White)
2	Insert, Console (Biscuit)
3	Switch
4	WP3369529 Whirlpool Dishwasher Follower
5	WP8535368 Whirlpool Dishwasher Timer
6	WP8271510 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	WP9743028 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch (Biscuit)
10	Lever, Latch White
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP3400892 Whirlpool Dishwasher Screw
16	Cover, Timer
17	8275310 Whirlpool Dishwasher Timer Knob
17	8275308 Whirlpool Dishwasher Timer Knob
19	Panel, Front (Biscuit)
19	Panel Front (White Model)
21	Shield, Control Cover
22	WP3373234 Whirlpool Dishwasher Bearing
24	Console (Includes Item 2) (White)
24	Console (Includes Item 2) (Biscuit)
