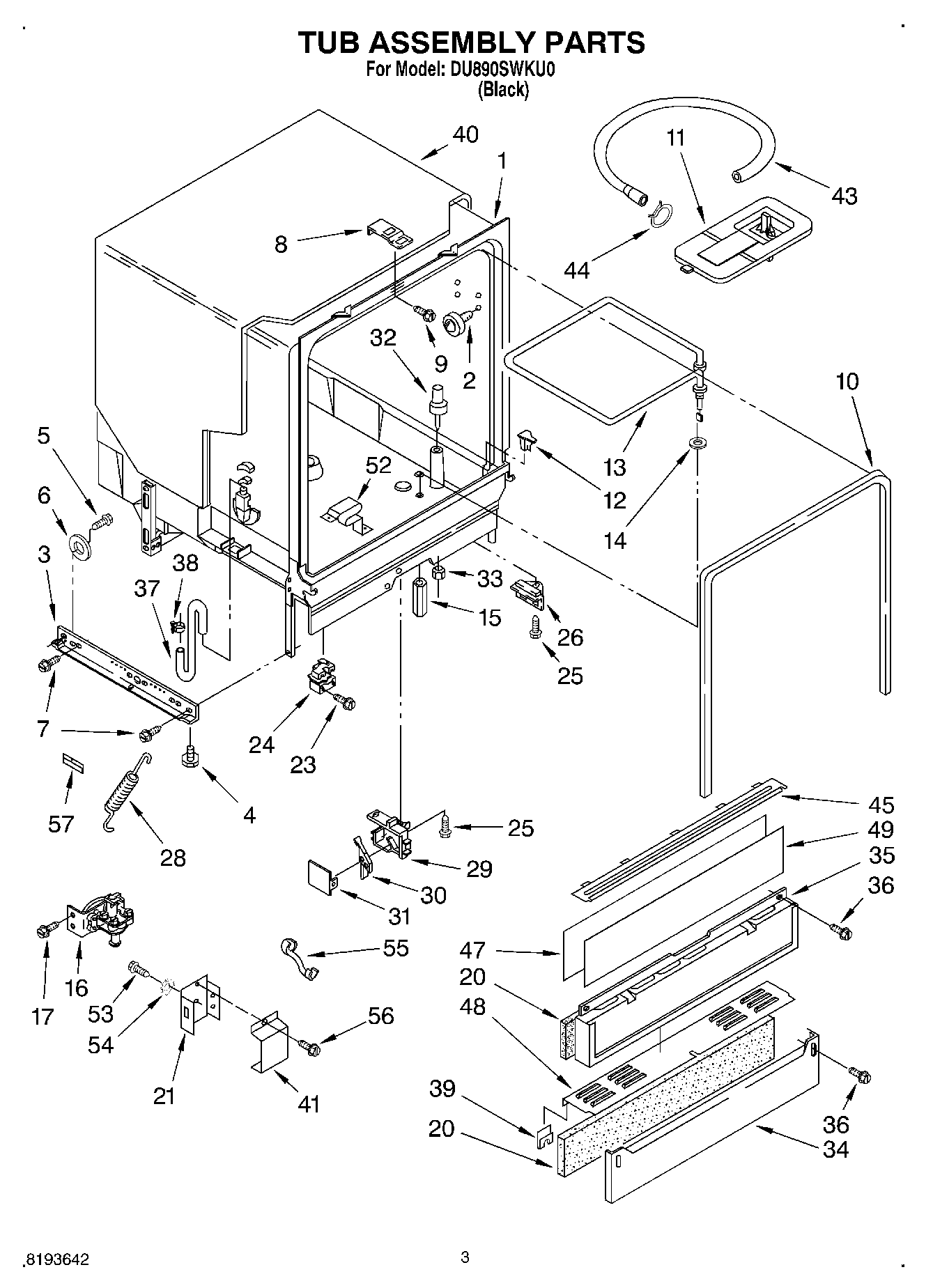

DU890SWKU0 03 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	WPW10477552 Whirlpool Dishwasher Terminal Nut
16	W10844024 Whirlpool Water Inlet Valve
17	WP489069 Whirlpool Compactor Screw
20	Insulation
21	Terminal Box
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
28	WP3373228 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	8318219 Whirlpool Dishwasher Cover Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP596669 Whirlpool Hose Clamp
39	Clip, Grounding
40	W11086533 Whirlpool Dishwasher Shield
41	300068 Whirlpool Dishwasher Cover Assembly
43	WP3374077 Whirlpool Dishwasher Drain Hose
44	WP356138 Whirlpool Hose Clamp
45	WP3372412 Whirlpool Dishwasher Retainer
47	Spacer, Corrugated
48	Extension & Clip Assembly
49	Access Panel (Biscuit/White)
49	Panel, Front Access (Almond/Black)
52	3379740 Whirlpool Dishwasher Heater Support
53	WP3400014 Whirlpool Dishwasher Screw
54	WP3378128 Whirlpool Dishwasher Washer
55	Relief, Strain
56	Screw
57	Friction Pad (Velcro)
