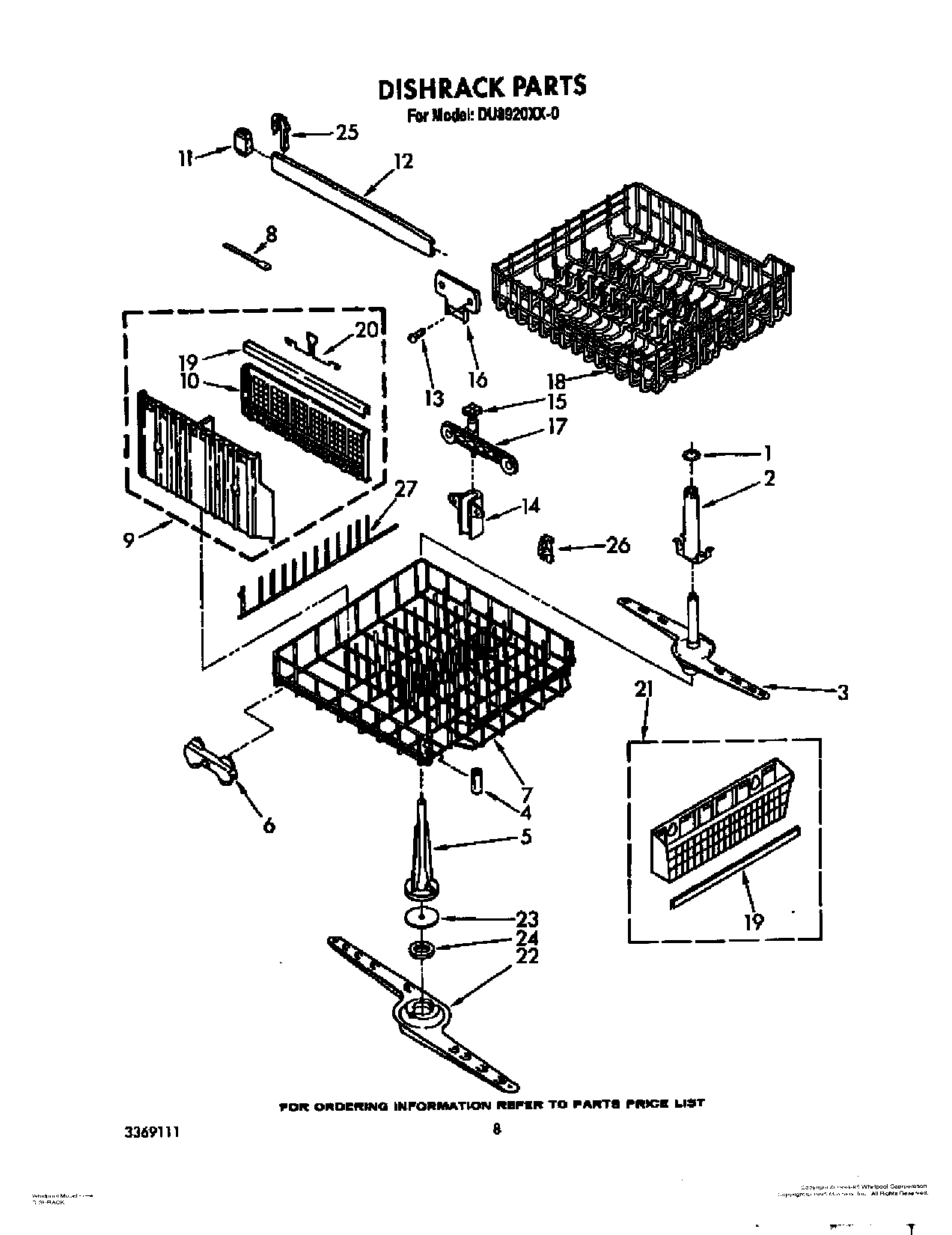

DU8920XX0 06 – DISHRACK

Products

Position	Product
	Parts List
	WPL LIT3369600
	WPL LIT3369098
	Energy Guide
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Instructions, Installation
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
8	Clip, Strap
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	Basket, Utensil (Includes Item 19)
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	Stop, Track (2)
26	WP3368629 Whirlpool Dishwasher Retainer
27	Vinyl Touch Up (Blue)
27	72017 Whirlpool Appliance Touch-Up Paint White
27	WP72107 Whirlpool Touchup
27	Leveler (Thinner)
27	Almond (Uncut)
27	WPL 72112
27	350942 Whirlpool Spray Paint
27	Enamel, Black (1 Qt. Uncut)
27	285006 Whirlpool Spray
27	W10728160 Whirlpool Tine Assembly
27	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
27	350956 Whirlpool Spray Assembly
