DU8950XT0 03 – DOOR
Written by
in

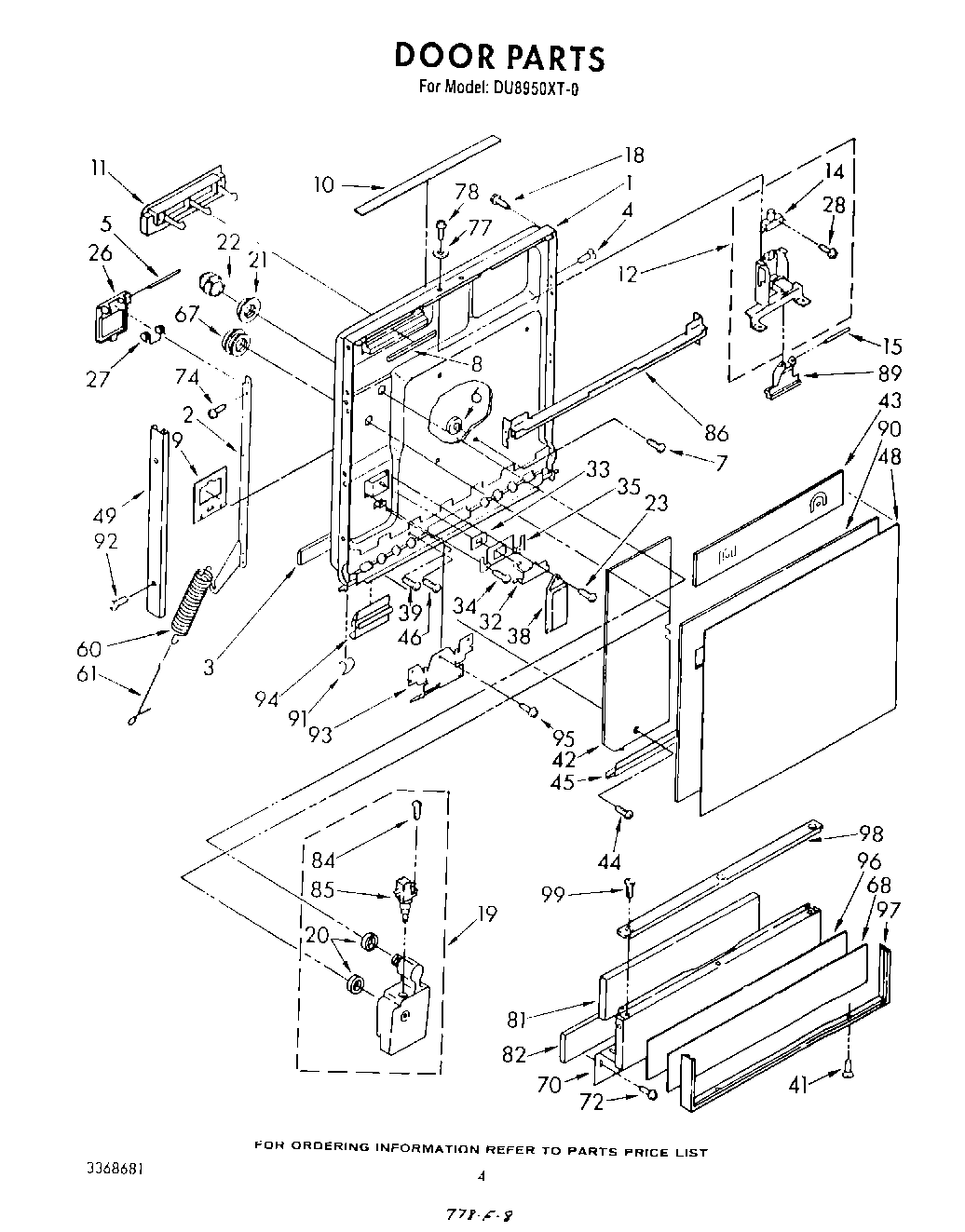

DU8950XT0 03 – DOOR
Products
Position
Product
1
Door, Inner
2
Support, Door (R.H.)
2
Support, Door (L.H.)
3
Gasket, Door
4
WP489069 Whirlpool Compactor Screw
5
4387043 Whirlpool Door Latch Kit
6
Button, Retainer (3)
7
Screw, 8-18 x 3/8 (3)
8
Baffle
9
Barrier
10
Label, Users Guide
11
Screen, Vent
12
Latch Assembly
14
Switch, Interlock (Alternate)
14
Switch, Interlock (Alternate)
14
Switch, Interlock (Alternate)
14
Switch, Interlock
15
Pin, Pivot
18
Screw, 8-32 x 1-7/8 Truss Head Tapping (2)
19
Dispenser, Wetting Agent
20
Washer
21
Nut, 1-14
22
Indicator, Leveler
27
WP8066018 Whirlpool Spring Assembly
28
Screw, 6-32 x 1
32
Lever, Catch
33
Seal, Lever
35
Retainer
38
Actuator
39
WP304231 Whirlpool Dishwasher Screw
42
Barrier, Door
43
Barrier, Console
44
W11693756 Whirlpool Screw Assembly
45
Edging, Panel
48
Panel, Front
49
Trim, Door (L.H.)
49
Trim, Door R.H.
60
674744 Whirlpool Dishwasher Door Spring 3 3/4"
61
WP716401 Whirlpool Dishwasher Retainer
67
Cap, Drip
68
Panel, Access
70
Plate, Toe
72
WP302868 Whirlpool Screw
74
WP488627 Whirlpool Refrigerator Screw
77
Washer (2)
78
WP90767 Whirlpool Screw
81
WPL 304660
82
WPL 304661
84
Screw, 4-20 x 3/8 (2)
85
Actuator
86
Rail, Support
89
WPL 3368641
90
Spacer, Panel
91
Clip, Wire
92
Screw, 8 x 1/2 (4)
93
Shield, Harness
94
WPL 3367720
95
Screw, 8-18 x 5/8
96
WPL 303755
97
WPL 303753
98
WPL 303754
99
302251 Whirlpool Dishwasher Screw
←
