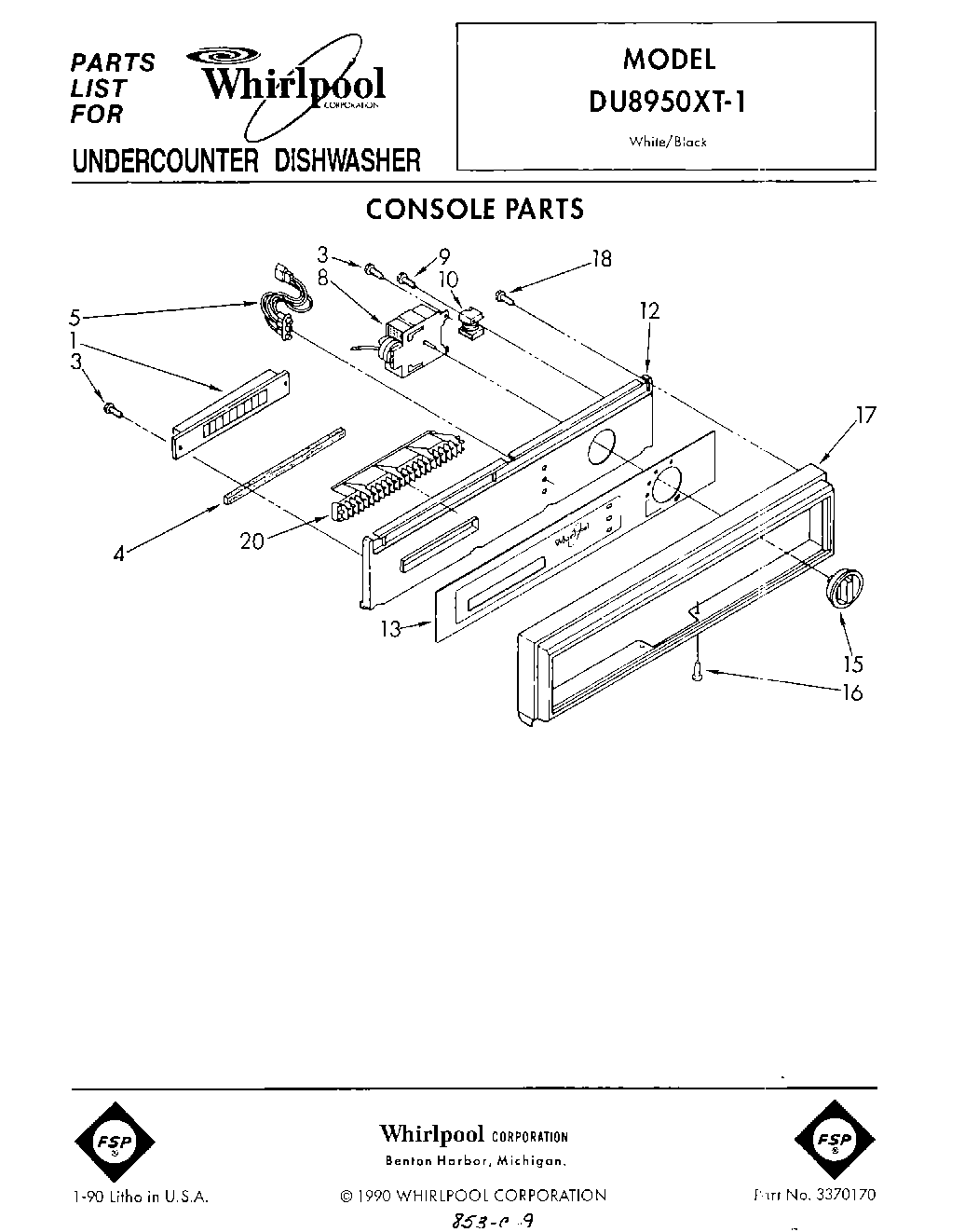

DU8950XT1 01 – CONSOLE

Products

PositionProduct
1Switch, Pushbutton
3WP304231 Whirlpool Dishwasher Screw
4Foam, Seal
5Light, Indicator (For Electrical Connector Only, See Wiring Harness Page.)
8Timer (For Electrical Connector Only, See Wiring Harness Page.)
9Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
10Relay, Start
12Console
13Insert, Decorative
15Knob, Timer
16W11693756 Whirlpool Screw Assembly
17Bezel, Console
18Screw
20Grill, Vent
