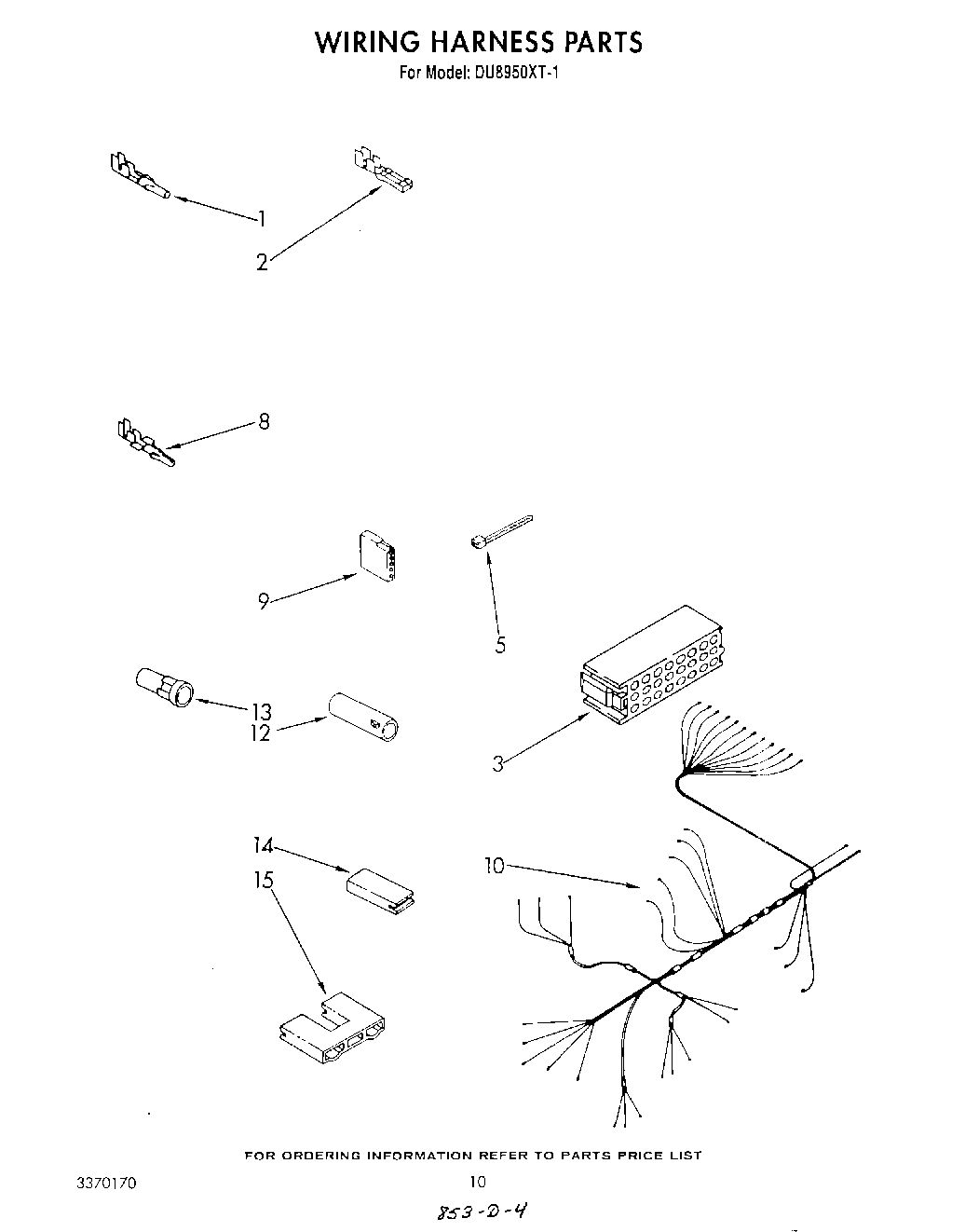

DU8950XT1 07 – WIRING HARNESS

Written by

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
3	Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
5	WPW10339879 Whirlpool Wire Tie
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
12	Receptacle
13	Plug
14	Insulator, Terminal
14	Connector Block
15	Terminal Insulator
15	Connector Block (Alternate)
