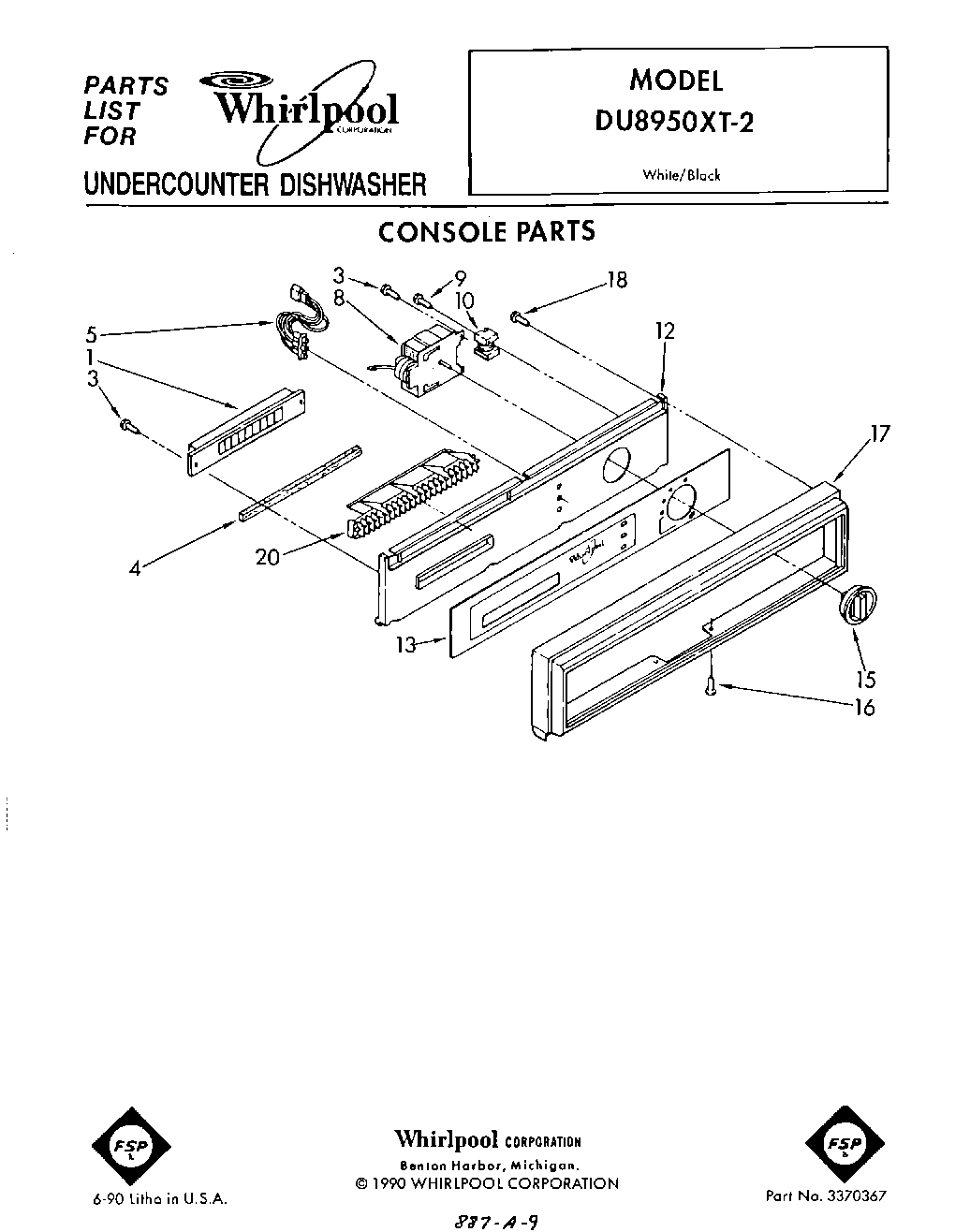

DU8950XT2 01 – CONSOLE

Products

Position	Product
1	Switch, Pushbutton
3	WP304231 Whirlpool Dishwasher Screw
4	Foam, Seal
5	Light, Indicator (For Electrical Connector Only, See Wiring Harness Page.)
8	Timer (For Electrical Connector Only, See Wiring Harness Page.)
9	Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
10	Relay, Start
12	Console
13	Insert, Decorative
15	Knob, Timer
16	W11693756 Whirlpool Screw Assembly
17	Bezel, Console
18	Screw
20	Grill, Vent
