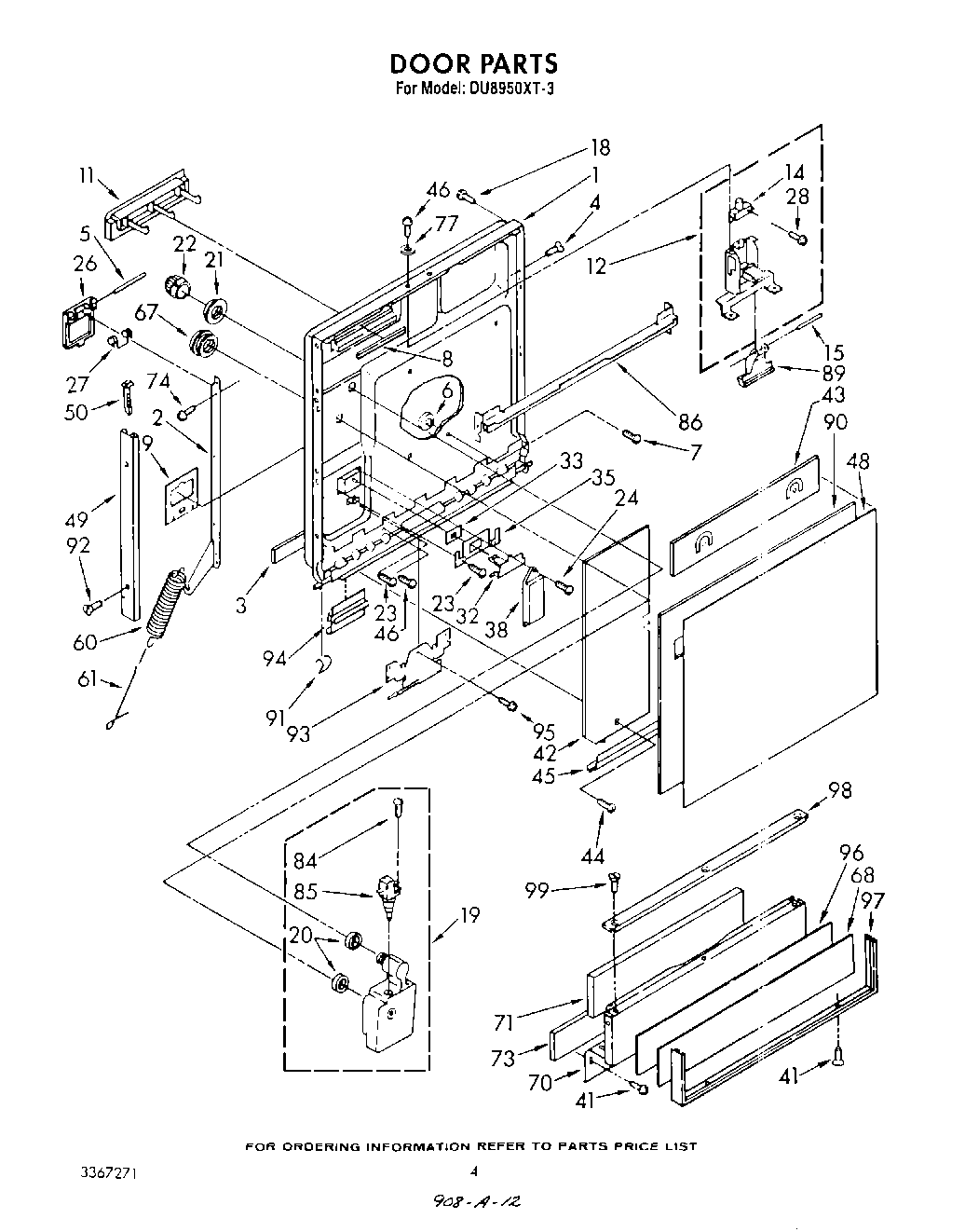

DU8950XT3 03 – DOOR

Products

Position	Product
1	Door, Inner
2	Support, Door (R.H.)
3	Support, Door (L.H.)
3	Gasket, Door
4	WP489069 Whirlpool Compactor Screw
5	4387043 Whirlpool Door Latch Kit
6	Button, Retainer (3)
7	Screw, 8-18 x 3/8 (3)
8	Baffle
9	Barrier
11	Screen, Vent
12	Latch Assembly
14	Switch, Interlock
15	Pin, Pivot
18	Screw, 8-32 x 1-7/8 Truss Head Tapping (2)
19	Dispenser, Wetting Agent
20	Washer
21	Nut, 1-14
22	Indicator, Leveler
23	WP304231 Whirlpool Dishwasher Screw
24	Screw, 8 x 1/2 (3)
27	WP8066018 Whirlpool Spring Assembly
28	Screw, 6-32 x 1
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
41	WP302868 Whirlpool Screw
42	Barrier, Door
43	Barrier, Console
44	W11693756 Whirlpool Screw Assembly
45	Edging, Panel
46	WP489128 Whirlpool Refrigerator Screw
48	Panel, Front (White/Black)
49	Trim, Door R.H.
49	Trim, Door L.H.
50	Clip, Trim Guard (2)
60	674744 Whirlpool Dishwasher Door Spring 3 3/4"
61	WP716401 Whirlpool Dishwasher Retainer
67	Cap, Drip
68	Panel, Access (White/Black)
70	Plate, Toe
71	WPL 304660
73	WPL 304661
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
84	Screw, 4-20 x 3/8 (2)
85	Actuator
86	Rail, Support
89	WPL 3368641
90	Spacer, Panel
91	Clip, Wire
92	Screw, 8 x 1/2 (4)
93	Shield, Harness
94	WPL 3367720
95	WP488729 Whirlpool Refrigerator Door Screw
96	WPL 303755
97	WPL 303753
98	WPL 303754
99	302251 Whirlpool Dishwasher Screw
