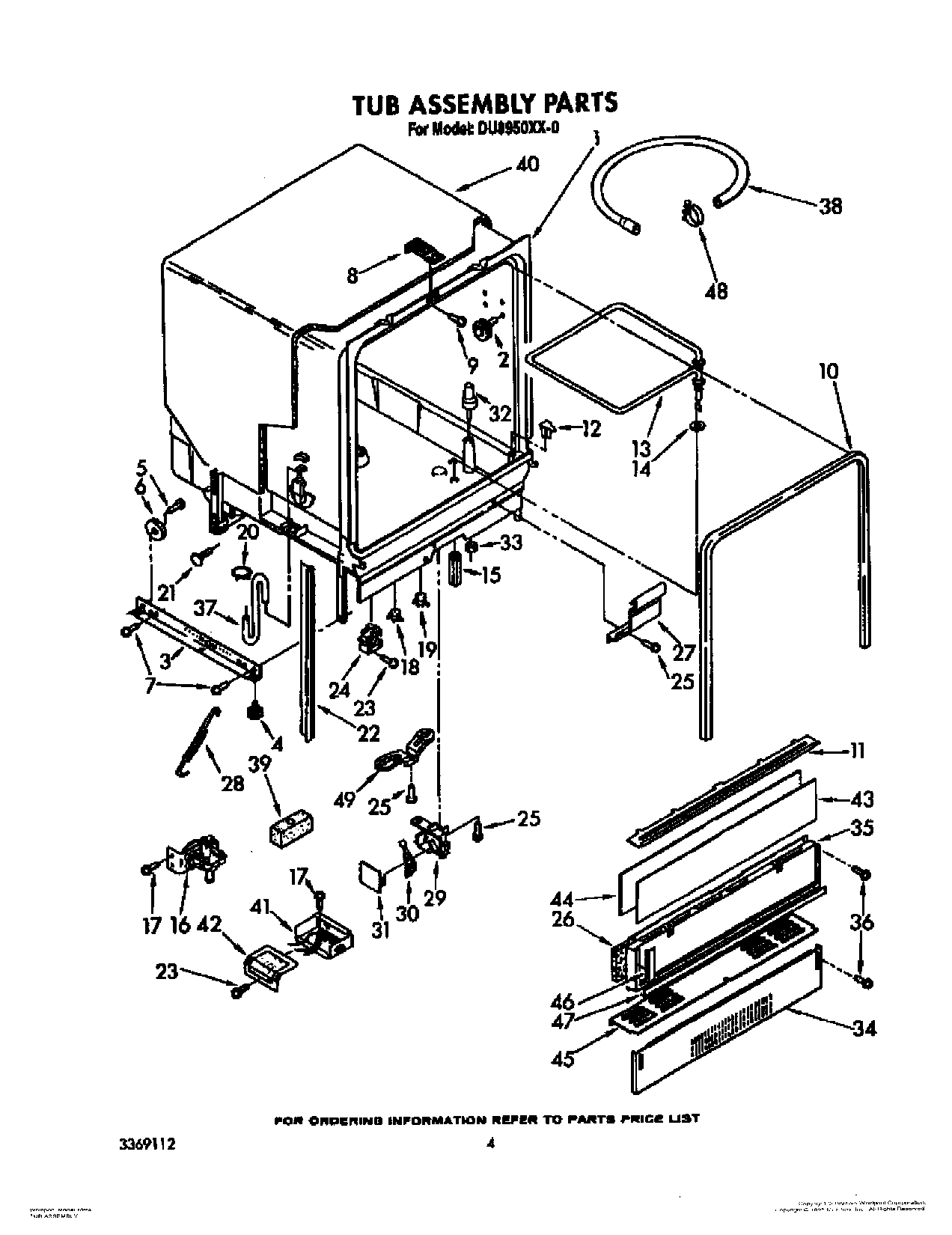

DU8950XX0 04 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	Retainer, Access Panel
12	DEFLECTOR-DISHWASHER
13	Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	WP661566 Whirlpool High Limit Thermostat
19	Thermostat
20	WP596669 Whirlpool Hose Clamp
21	WP304666 Whirlpool Dishwasher Retainer
22	Retainer, Shield
23	WP90767 Whirlpool Screw
24	Relay
25	WP304231 Whirlpool Dishwasher Screw
26	Sound Shield
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP3376397 Whirlpool Dishwasher Float Assembly
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	675544 Whirlpool Drain Hose
39	Diverter
40	Sound Shield
41	Terminal Block & Plug Assembly
42	Cover Assembly, Terminal Box
43	Access Panel (White/Black)
44	Spacer, Corrugated
45	Extension
46	Trim, Side (2)
47	Trim, Bottom
48	WP3367052 Whirlpool Hose Clamp
49	Bracket, Thermostat
