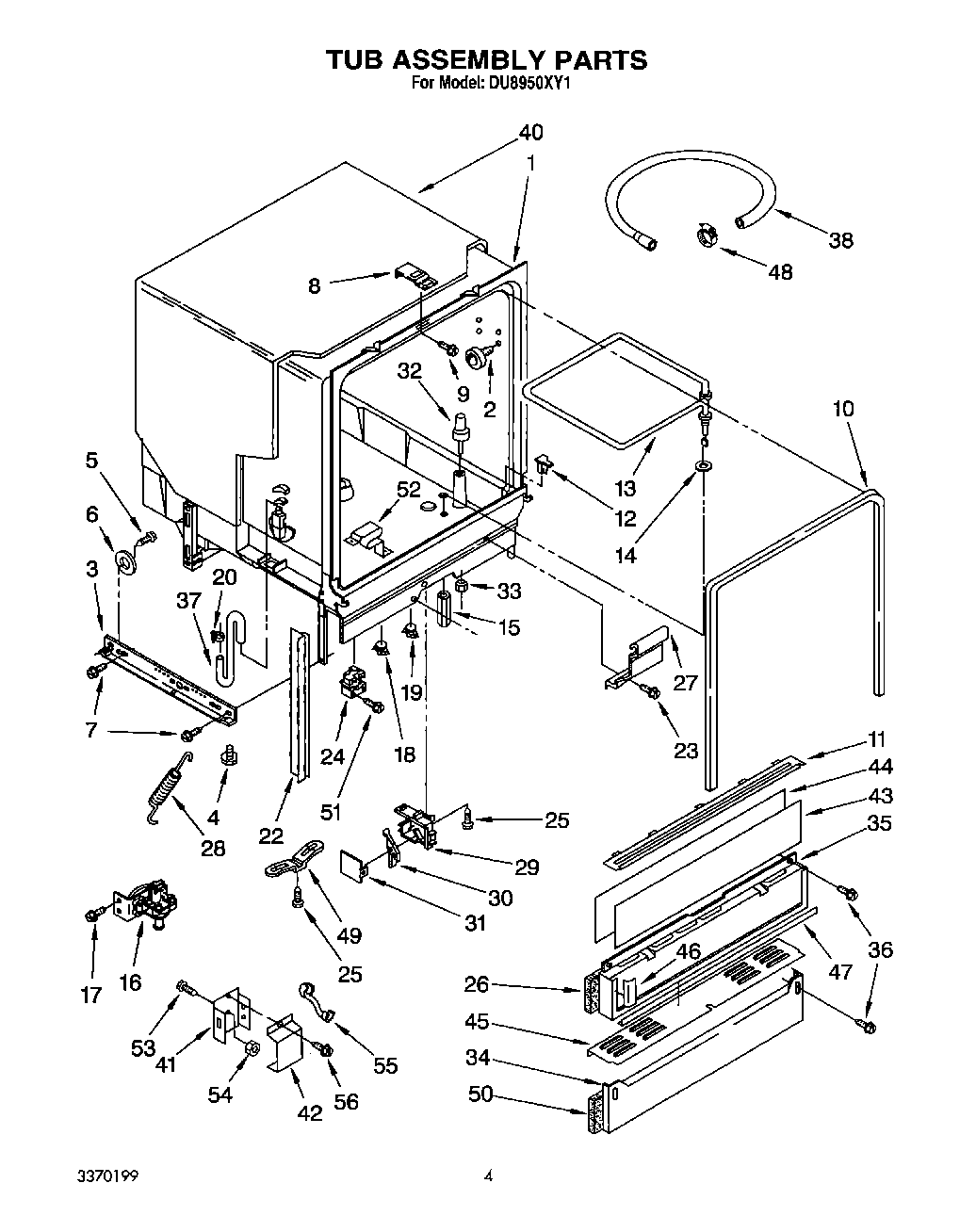

| 1 | Tub Assembly |
| 2 | Tub, Wheel Assembly (8) |
| 3 | Runner (2) |
| 4 | 8193716 Whirlpool Leveling Leg |
| 5 | Screw (2) |
| 6 | WP302819 Whirlpool Dishwasher Wheel |
| 7 | SCREW |
| 8 | Plate, Latch |
| 9 | Screw, 8-32 |
| 10 | WPW10509257 Whirlpool Door Gasket |
| 11 | Retainer, Access (White) |
| 12 | DEFLECTOR-DISHWASHER |
| 13 | Heater |
| 14 | WP717273 Whirlpool Dishwasher Rubber Washer |
| 15 | Nut (2) (Heater Terminal) |
| 16 | Water Valve |
| 17 | WP489069 Whirlpool Compactor Screw |
| 18 | WP661566 Whirlpool High Limit Thermostat |
| 19 | Thermostat |
| 20 | WP596669 Whirlpool Hose Clamp |
| 22 | Retainer, Shield |
| 23 | W11693756 Whirlpool Screw Assembly |
| 24 | Relay |
| 25 | WP304231 Whirlpool Dishwasher Screw |
| 26 | Sound Shield |
| 27 | Shield, Harness |
| 28 | Spring & Bearing Assembly (2) |
| 29 | Housing, Float Switch |
| 30 | Switch, Float |
| 31 | Cover, Switch Housing |
| 32 | WP3376397 Whirlpool Dishwasher Float Assembly |
| 33 | Nut |
| 34 | WP3379920 Whirlpool Dishwasher Toe Panel |
| 35 | WP3369193 Whirlpool Dishwasher Panel |
| 36 | WP302868 Whirlpool Screw |
| 37 | Hose, Inlet |
| 38 | WP3374077 Whirlpool Dishwasher Drain Hose |
| 40 | Sound Shield |
| 41 | Box, Terminal |
| 42 | 300068 Whirlpool Dishwasher Cover Assembly |
| 43 | Access Panel (White/Black) |
| 44 | Spacer, Corrugated |
| 45 | Extension |
| 46 | Trim, Side (2) |
| 47 | Trim, Bottom |
| 48 | WP3367052 Whirlpool Hose Clamp |
| 49 | Bracket, Thermostat |
| 50 | Sound Shield |
| 51 | WP489128 Whirlpool Refrigerator Screw |
| 52 | Support, Heater |
| 53 | WP250830 Whirlpool Refrigerator Screw |
| 54 | WP488130 Whirlpool Air Conditioner Nut |
| 55 | Relief, Strain |
| 56 | Screw |
