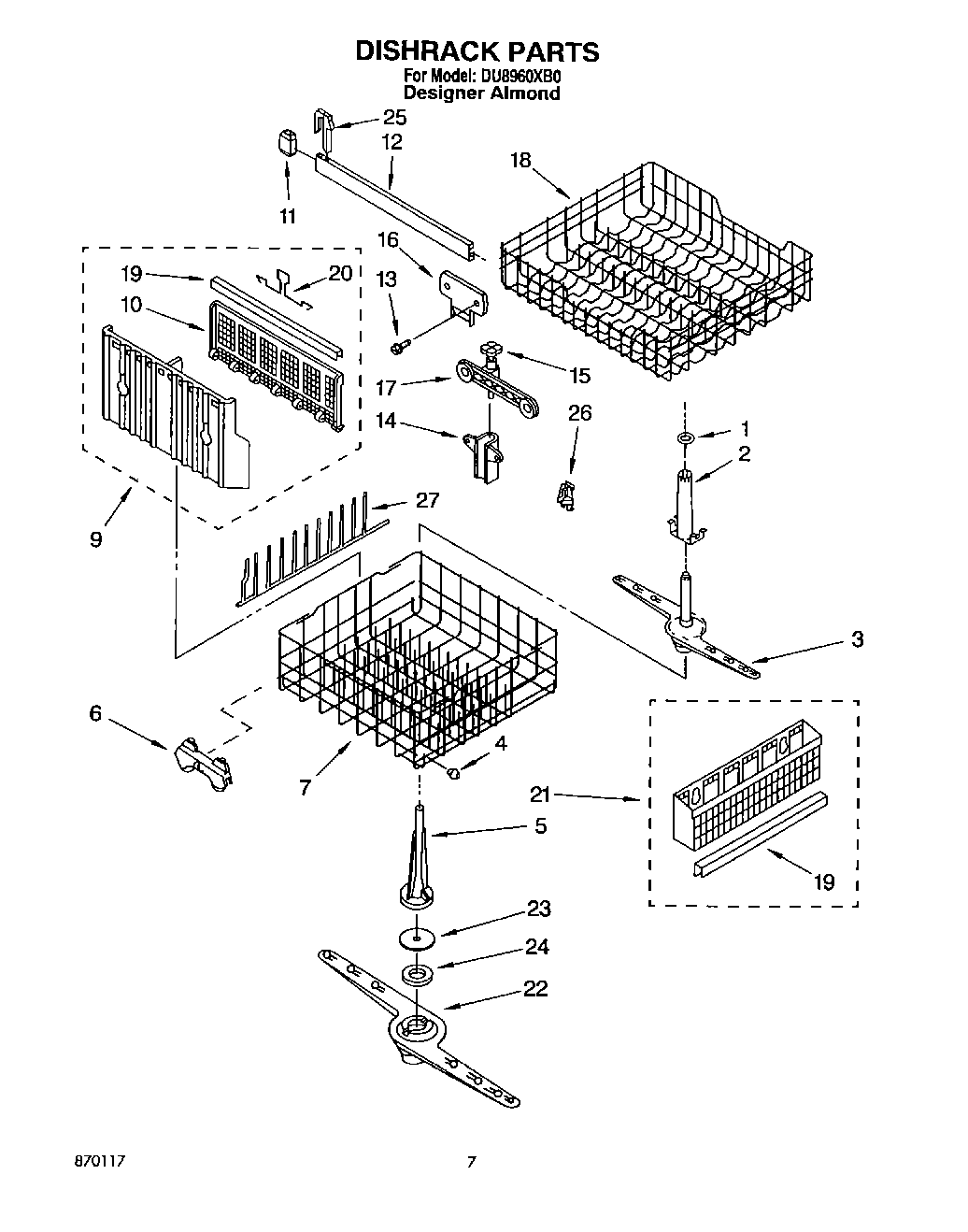

DU8960XB0 05 – DISHRACK, LIT\OPTIONAL

DU8960XB0 05 – DISHRACK, LIT\OPTIONAL

Written by

in

DU8960XB0 05 – DISHRACK, LIT\OPTIONAL

Products

Position	Product
	Wiring Diagram
	WPL LIT3373480
	Instructions, Installation
	Guide, Use & Care
	Do-It Yourself Manual
	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	Basket, Utensil (Includes Item 19)
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	Stop, Track (2)
26	WP3368629 Whirlpool Dishwasher Retainer
27	675679 Whirlpool Dishwasher White Tip Tines
27	Leveler (Thinner)
27	WP72107 Whirlpool Touchup
27	72017 Whirlpool Appliance Touch-Up Paint White
27	Enamel, Black (1 Qt. Uncut)
27	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
27	DOOR SPRING KIT: (HEAVY DUTY)
27	676458 Whirlpool Dishwasher Tine Tip
27	Side Panel Kit (White)
27	350956 Whirlpool Spray Assembly
27	Platinum
27	Toast
27	Almond (Uncut)
27	350942 Whirlpool Spray Paint
27	Side Panel Kit: (Almond)
27	W10728160 Whirlpool Tine Assembly
27	285006 Whirlpool Spray
27	72032 Whirlpool Touch Up Paint Black
27	WP676453 Whirlpool Dishwasher Touch-Up
27	WP676455 Whirlpool Dishwasher Touch-Up
27	Avocado
27	Gold
27	W10840471 Whirlpool Dishwasher Touch Up
