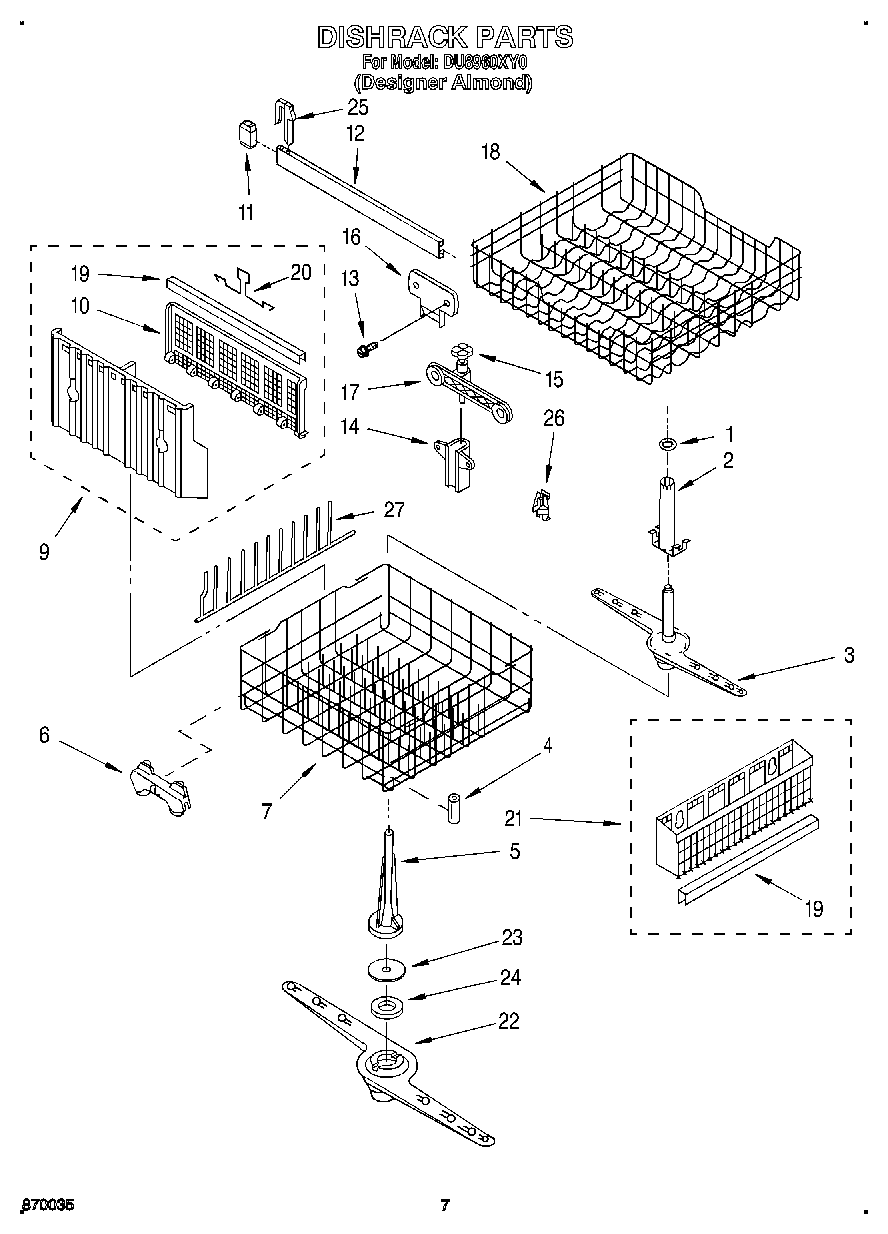

DU8960XY0 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3369098
	WPL LIT3373986
	Do-It Yourself Manual
	WPL LIT3372194
	WPL LIT3369600
	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	Basket, Utensil (Includes Item 19)
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	Stop, Track (2)
26	WP3368629 Whirlpool Dishwasher Retainer
27	WP72107 Whirlpool Touchup
27	Leveler (Thinner)
27	Almond (Uncut)
27	350942 Whirlpool Spray Paint
27	72017 Whirlpool Appliance Touch-Up Paint White
27	350956 Whirlpool Spray Assembly
27	WPL 72112
27	Enamel, Black (1 Qt. Uncut)
27	285006 Whirlpool Spray
27	Toast
27	Gold
27	W10840471 Whirlpool Dishwasher Touch Up
27	DOOR SPRING KIT: (HEAVY DUTY)
27	Tine Tip Repair Kit (Blue - Enough For Two Complete Dishracks)
27	676458 Whirlpool Dishwasher Tine Tip
27	675679 Whirlpool Dishwasher White Tip Tines
27	W10728160 Whirlpool Tine Assembly
27	WP676455 Whirlpool Dishwasher Touch-Up
27	WP676453 Whirlpool Dishwasher Touch-Up
27	Side Panel Kit: (Almond)
27	Side Panel Kit (White)
27	Avocado
27	Platinum
