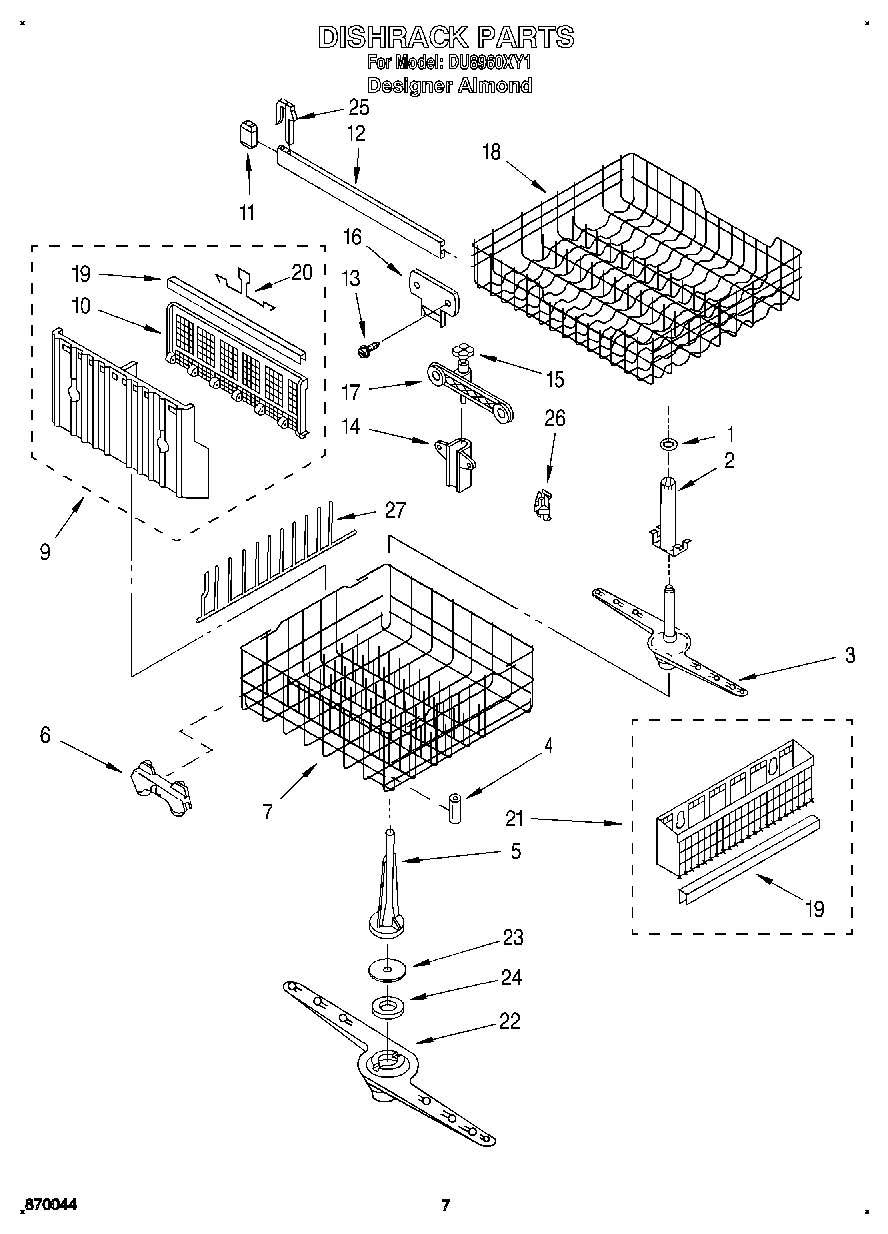

DU8960XY1 05 – DISHRACK, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3369098
	WPL LIT3369600
	Do-It Yourself Manual
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3372194
	WPL LIT3374368
1	Clip
2	Support, Arm
3	Spray Arm, Upper
4	WP3385142 Whirlpool Dishwasher Bumper
5	Tower, Pressure
6	WP3376961 Whirlpool Dishwasher Wheel
7	W10311986 Whirlpool Dishwasher Lower Rack
9	Silverware Basket Assembly
10	Cover, Basket
11	Endcap, Front or Rear (2)
12	Track, Rack
13	WP9741232 Whirlpool Dishwasher Screw
14	WP3369980 Whirlpool Dishwasher Housing
15	Worm (2)
16	WP3369979 Whirlpool Dishwasher Plate
17	675791 Whirlpool Dishwasher ARM Assembly
18	W11169039 Whirlpool Dishwasher Dish Rack
19	Trim, Basket
20	Handle, Basket
21	Basket, Utensil (Includes Item 19)
22	WP3376848 Whirlpool Dishwasher Spray Arm
23	Cap, Nozzle
24	WP719576 Whirlpool Dishwasher Bearing
25	Stop, Track (2)
26	WP3368629 Whirlpool Dishwasher Retainer
27	Enamel, Black (1 Qt. Uncut)
27	350956 Whirlpool Spray Assembly
27	WPL 72112
27	72017 Whirlpool Appliance Touch-Up Paint White
27	350942 Whirlpool Spray Paint
27	Almond (Uncut)
27	Leveler (Thinner)
27	WP72107 Whirlpool Touchup
27	Toast
27	Gold
27	Side Panel Kit (White)
27	676458 Whirlpool Dishwasher Tine Tip
27	DOOR SPRING KIT: (HEAVY DUTY)
27	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
27	675679 Whirlpool Dishwasher White Tip Tines
27	W10728160 Whirlpool Tine Assembly
27	WP676455 Whirlpool Dishwasher Touch-Up
27	WP676453 Whirlpool Dishwasher Touch-Up
27	285006 Whirlpool Spray
27	Side Panel Kit: (Almond)
27	W10840471 Whirlpool Dishwasher Touch Up
27	Avocado
27	Platinum
