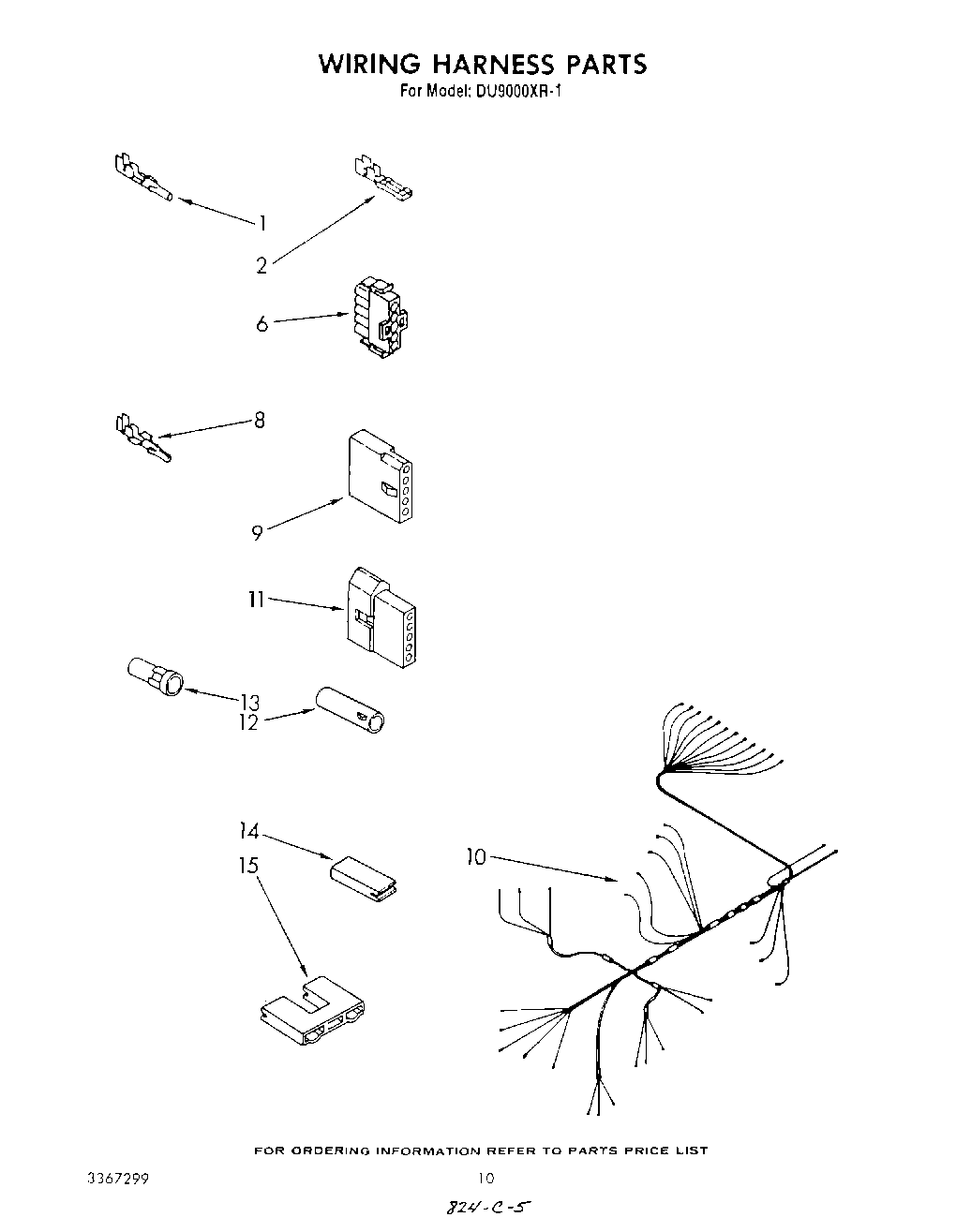

DU9000XR1 07 – WIRING HARNESS

Written by

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
6	Connector, 5 Terminal (Uses Terminal 388499)
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
11	Cap, 5 Pin
12	Receptacle
13	Plug
14	Connector Block
14	Insulator, Terminal
15	Terminal Insulator
15	Connector Block (Alternate)
