DU9000XR5 02 – TUB, LITERATURE AND OPTIONAL

DU9000XR5 02 – TUB, LITERATURE AND OPTIONAL

Written by

in

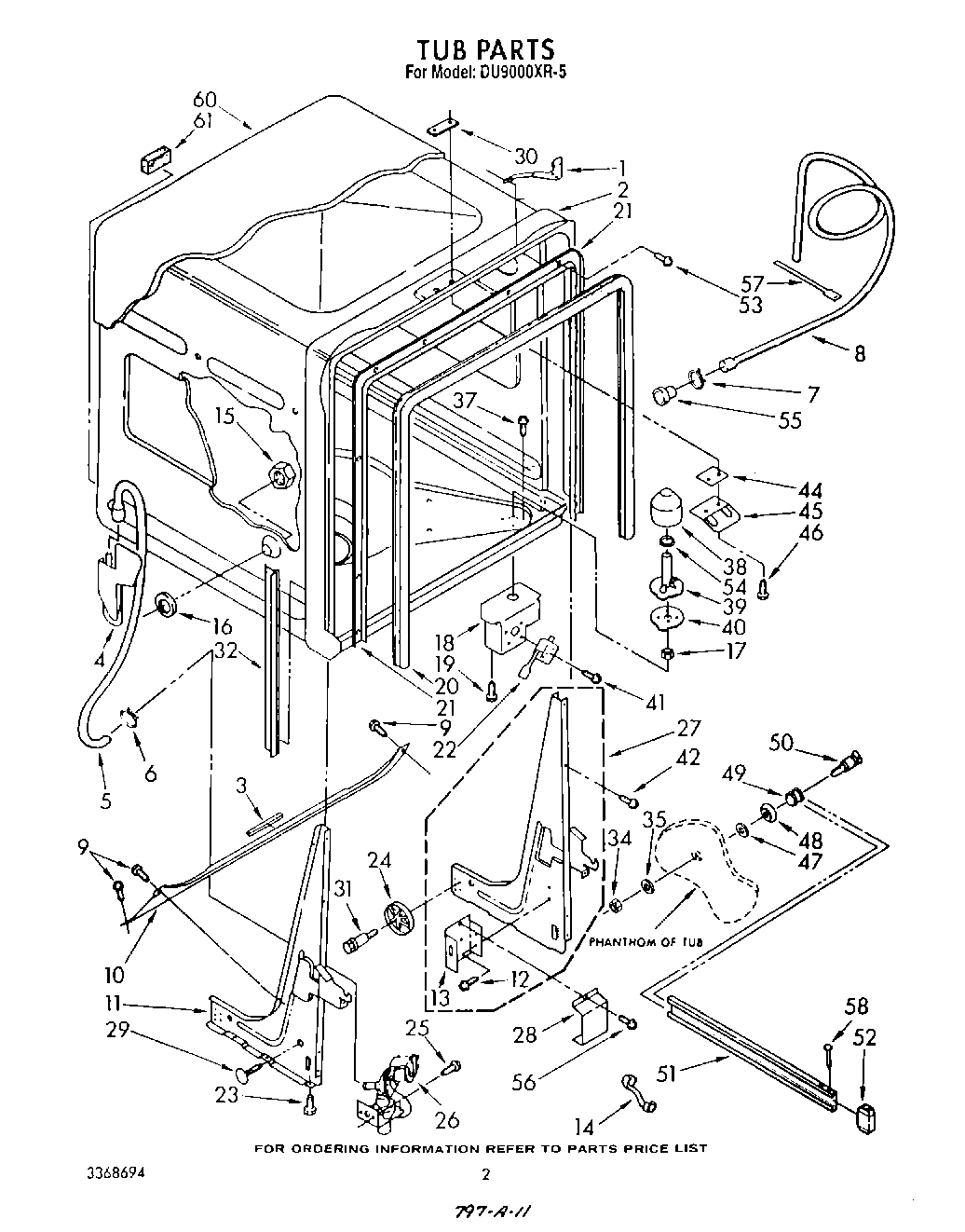

DU9000XR5 02 – TUB, LITERATURE AND OPTIONAL

Products

Position	Product
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
15	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
22	Switch, Pressure
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
29	WP304666 Whirlpool Dishwasher Retainer
30	Nut, Twin Spring
31	Screw, Shoulder
32	Retainer, Sound Shield
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	End Cap, Track (4)
53	WP308685 Whirlpool Microwave Screw
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
58	WPL 303298
60	W11086533 Whirlpool Dishwasher Shield
61	WP72107 Whirlpool Touchup
61	Almond (Uncut)
61	Leveler (Thinner)
61	799344 Whirlpool Refrigerator Paint
61	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
61	72113 Whirlpool Touch-Up Paint
61	Golden Harvest
61	72017 Whirlpool Appliance Touch-Up Paint White
61	Golden Harvest (Uncut)
61	Block, Foam (2)
61	Kit, Epoxy Patch (White)
61	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
61	Vinyl Touch Up (Blue)
61	Enamel, New Avocado (1 Qt. Uncut)
61	Enamel, Coffee (1 Qt. Uncut)
61	285006 Whirlpool Spray
61	350930 Whirlpool White Spray Paint
61	350942 Whirlpool Spray Paint
61	WPL 72112
61	Platinum (Uncut)
61	Enamal, Toast (1 Qt. Uncut)
61	Paint, Spray (13 Oz.) (Platinum)
61	Toast
61	350956 Whirlpool Spray Assembly
