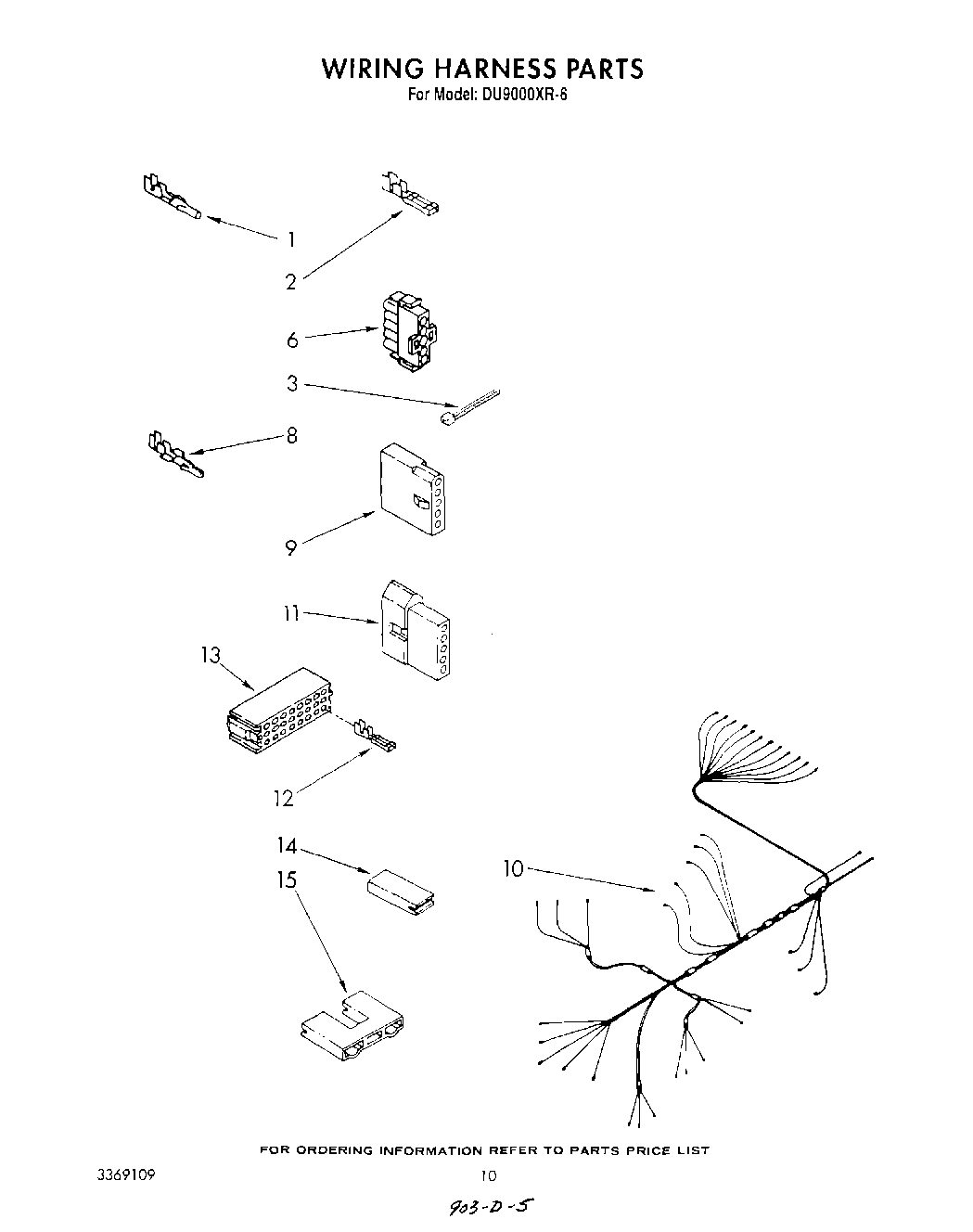

DU9000XR6 07 – WIRING HARNESS

Products

PositionProduct
1WP94614 Whirlpool Terminal
2Terminal, Female
3WPW10339879 Whirlpool Wire Tie
6Connector, 5 Terminal (Uses Terminal 388499)
8WP596797 Whirlpool Terminal
9Receptacle (5-Circuit)
10Harness, Wiring
11Cap, 5 Pin
12Terminal, Female
13Block, Disconnect
13Block, Timer (White)
14Connector Block
14Insulator, Terminal
15Terminal Insulator
15Connector Block (Alternate)
